PTZOptics Move SE
NOW SHIPPING:
Advanced PTZ Auto-Tracking – Available in 12x, 20x, and 30x
Now Available: Native NDI® Enablement! Learn More Here
Feature-Packed and Built to Scale
Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. The PTZOptics Move SE combines HDMI, SDI, USB and IP outputs – with native NDI® now available – all into a single camera. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios.
Plus, starting at just $999, the PTZOptics Move SE is ideal for multi-camera productions and large-scale deployments.
Designed with You – and the Future – in Mind
Experience a more intelligent video production workflow with the Move SE’s updated user interface and feature set that continually expands based on user feedback. Plus, PTZOptics’ one-click firmware updates make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. And with 12x, 20x, and 30x optical zoom options, plus PoE, the Move SE can fit seamlessly into any production scenario.
Pan, Tilt, Zoom, Track.

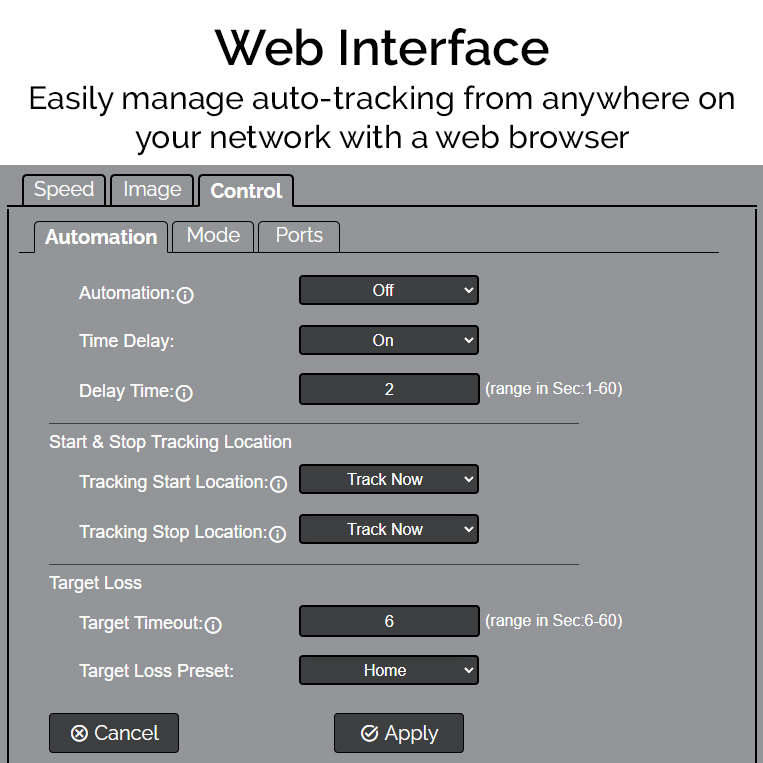

With the Move SE’s auto-tracking features, users can control their production from behind the scenes – or right in front of them. Plus, the Move SE’s Presenter-Lock™ auto-tracking features allow users to lock into a specific person, even while other people are in frame, and switch between on-stage presenters with the click of a button. In addition to the Move SE’s auto-tracking features, users also have access to PTZOptics’ latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
From hardware to software, the options for camera control are endless — allowing you to take charge of your camera in a way that fits your workflow.
Perfect for Public Spaces
With safety and ease of use in mind, the Move SE includes IR remote control receivers on both the front and back of the camera, so operators can control the camera’s movements from any angle. And for added security in public spaces, the Move SE is equipped with a Kensington lock to deter theft and ensure peace of mind. Whether you’re using the Move SE in a classroom, public courtroom, or shared meeting space, you can rest easy knowing that it’s built to handle the demands of any public setting.
Discreet Mounting Options
Mount your PTZOptics Move SE camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Click the links below to learn more about our PTZ mounts:
Take Control Your Way
Users can control Move SE cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Move SE cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® Bridge (native NDI® now available) and cloud-based software such as PTZOptics Hive and Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
To view a list of free software compatible with Move SE cameras, check out the Software tab at the top of this page. View a full list of our free software here.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Move SE comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
PTZOptics Continuous Advantage
PTZOptics products continuously improve over their lifespan. Since 2014, PTZOptics has provided customers with regular, free product updates based on customer feedback, enhancing the value and functionality of their products over time. For example, the PTZOptics award-winning second generation camera line was improved with over 100 new features over its 7-year production life-span. Beginning in 2023, updates can be applied with a single click. Additionally, our new PTZOptics Discord channel allows users to communicate directly with our engineering team and access beta firmware. This approach enables products to evolve with users’ needs, increasing their overall value. Learn about our beta tester program here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features and
benefits
- Built-In Auto-Tracking
- Advanced White Balance Modes
- Wide Dynamic Range
- Full Frame Rates: 1080p-60/50/30/25/59.94/29.97, 720p-60/50/59.94
- Up to 1080p Resolution @ 60fps
- SRT Support
- 2D & 3D Noise Reduction
- 5 Year Parts & Labor Manufacturer Warranty
Camera Comparison
Move SE
- Starting at $1099 MSRP
- Up to 1080p @ 60 FPS Resolution
- NDI® HX2 Certified
- Built-In Auto-Tracking
- USB, HDMI, SDI, NDI Connections: Available on All Models
- Hive-Linked
- Stream Directly to YouTube and Facebook
- Preset Tour
- G3 API
- Power over Ethernet
- Far-End PTZ Control in Zoom
- OBS Plugin Integration
- StreamDeck Plugin Integration
- vMix Integration
- Blackmagic Switcher Support
- 5 Year Warranty
- Award Winning Support
PTZOptics G2 Cameras
- Starting at $1759 MSRP
- Up to 1080p @ 60 FPS Resolution
- NDI® Available on Some Models
- Auto-Tracking with Free CMP Software
- USB, HDMI, SDI, NDI Connections: Only on Separate Models
- Hive-Linked
- Stream Directly to YouTube and Facebook
- Preset Tour
- G3 API
- Power over Ethernet
- Far-End PTZ Control in Zoom
- OBS Plugin Integration
- StreamDeck Plugin Integration
- vMix Integration
- Blackmagic Switcher Support
- 5 Year Warranty
- Award Winning Support
Hive-Linked
The Move SE Connects Instantly to Hive, Right Out of the Box
Click to enlarge!
Native NDI® is Now Available for the Move SE!
With the latest firmware update, you no longer have to buy a license to use NDI® on your Move SE! View instructions on how to upgrade the Move SE’s firmware here.
You will be receiving a full refund for your purchase! As NDI® has already been enabled on your Move SE, no additional upgrade is necessary.
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
See What Our Customers Are Saying
Field-of-View Calculator
Calculate
Image Width
Fully zoomed in:
Fully zoomed out:
Note: Image ratio is displayed in 16:9
Check Out Our Other Auto-Tracking Solutions!
Image Sensor & Lens | Video Sensor | 1/2.8’’, SONY CMOS, Effective Pixel: 2.07M |
Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 720p-60/50 | |
Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) | |
Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
Shutter | 1/30s ~ 1/10000s | |
Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
|
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
Backlight Compensation | Supported | |
Digital Noise Reduction | 2D & 3D Digital Noise Reductions | |
Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
|
Display Field of View | 12x: 85.2° 20x: 69.6° 30x: 69.6° |
|
Pan/Tilt Movement | Pan Movement | ±170° |
Pan Speed | 1.7° ~ 100°/s | |
Tilt Movement | +90° to -30 | |
Tilt Speed | 1.7° ~ 69.9° | |
Image Flip, Mirror and Freeze | Supported | |
Presets | 255 Presets | |
Preset Accuracy | 0.1° | |
Power Options | Power Supply | DC 12V / PoE (802.3af) |
Input Power | 2A (Max) | |
Physical Specifications | Material | Aluminum, Plastic |
Color | White and Gray | |
Dimensions (W x D x H) | 5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up) 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
|
Weight | 3.2 lbs. (1.445 kg) | |
Working Environment | Indoor | |
Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
Rear Board Connectors | HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port |
1x HDMI: version 1.3 | ||
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard | ||
1x USB 3.0 Type C | ||
Audio Interface | 1x 3.5mm Line level Input | |
Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
IR | 4x IR Addresses, Max distance 30ft / 9m | |
Power Jack | JEITA type (DC IN 12V) | |
Network Interface | RJ45: 10/100M Adaptive Ethernet Port, supports PoE (802.3af) |
PTZOptics Move SE
SKU | MSRP | Documents |
---|---|---|
PT12X-SE-xx-G3 | $1,099 | Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders |
PT20X-SE-xx-G3 | $1,209 | Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders |
PT30X-SE-xx-G3 | $1,319 | Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders |
Note: “xx” stands for the color. Use “WH” for white and “GY” for black/gray.

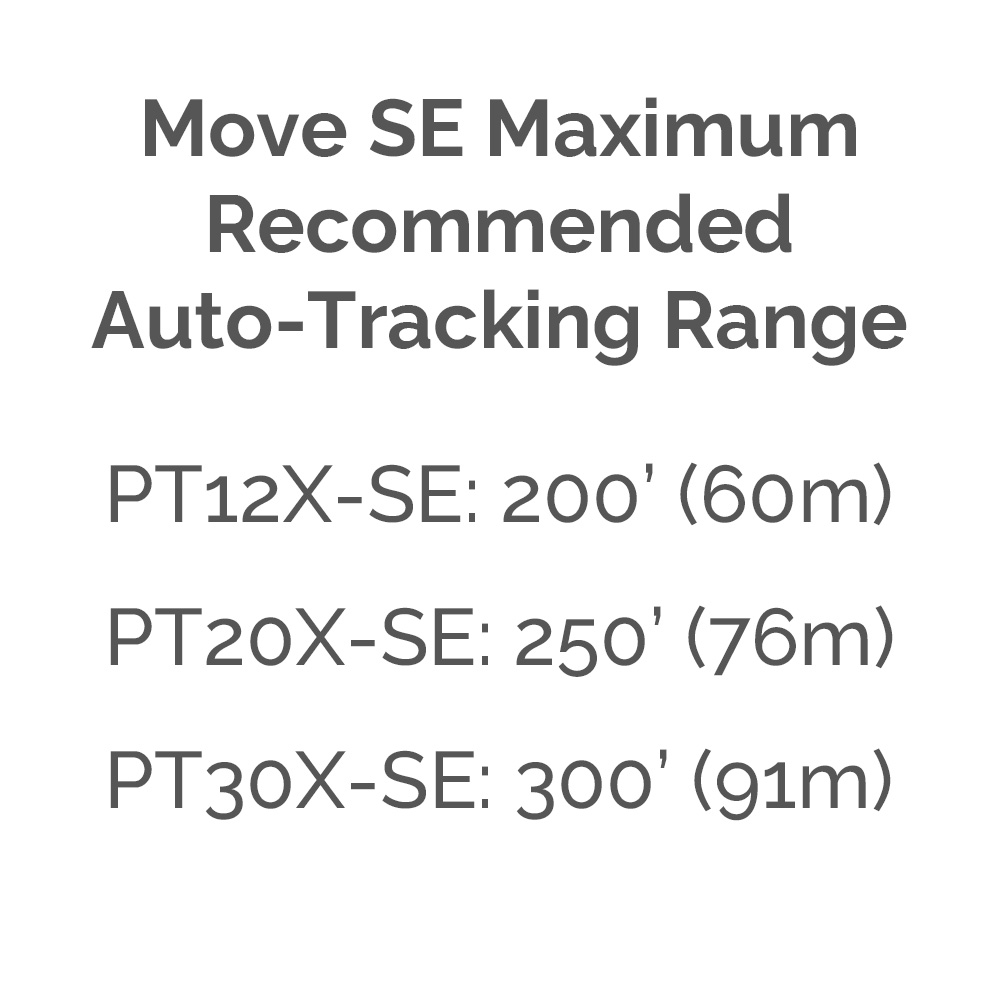

The PTZOptics Move SE is a 1080p PTZ camera with built-in auto-tracking to allow a single operator to take on the task of a full production team, and seamlessly track subjects up to 300 feet away. This camera has outputs for SDI, HDMI, USB, and IP and comes with either a 12X, 20X, or 30X optical zoom, as well as a built-in tally light. For even more connectivity, the Move SE is also upgradeable to NDI®|HX with the latest free firmware update. Learn more here.
The Move SE comes with a 5 year limited parts and labor warranty.
Accessories
These PTZOptics accessories are compatible with our Move SE cameras.
Mounts
PTZOptics mounts are the highest quality option for affixing your camera to a wall, ceiling, or pole. Our universal design works with almost any camera and features a sleek silhouette for discreet mounting scenarios. Available in black or white.
Joysticks
Looking for More?
WirelessCable (single and pre-paired)
Wireless Connectivity for IP Video Productions
Spare Infrared PT Remote
Operates all PTZOptics cameras plus the HuddleCamHD Pro and Pro IP
Apps and Software for the Move SE
Below are several applications that can be used with Move SE cameras. If you have any questions about the use of the applications, please feel free to submit a ticket or review our knowledge base articles.
NewBlueFX live production graphics software is now included with all PTZOptics cameras. This software allows you to invigorate your meetings and live video presentations with visually appealing graphics and useful information. You can claim your free software here.
The PTZControl Pro 2 app offers easy control of PTZOptics cameras from any iOS device. Set and call presets, make color adjustments, and access documentation with this all-in-one solution.
Advanced wireless PTZ camera control from your iOS, Android, or Kindle device
Upgrade Tool
Download this tool to apply network firmware updates to the camera, as well as change the camera’s IP address (updated tool). For more firmware tools and files, please visit the Firmware page.
Advanced PTZ camera controls, hotkeys support, and much more available inside of OBS
PTZ camera controllers that are dockable within the OBS interface. The included HTML files feature a variety of customizable PTZ controllers that can be used as with the OBS Custom Browser Docks feature. Custom Browser Docks allow you to place the PTZ controllers directly into the OBS interface.
This Twitch extension allows your audience to control your PTZOptics camera in Twitch.
Control your PTZOptics camera using MIDI commands from programs such as Ableton, Pro Tools, and more.
Use this tool in AMCAP Video Capturing App to test the camera’s USB feed.
