Designed to be Simple & Secure
This PTZOptics ceiling mount is designed to support most small-based PTZ cameras and securely mount them to any surface with the supplied hardware. This mount features a universal design that works with many SONY, Panasonic, Cisco, Polycom, Vaddio, HuddleCamHD, Lumens, and DataVideo cameras.
Professional PTZ Camera Mounts
Our universal camera mounts include all the hardware necessary for installation. Follow our step-by-step installation guides for professional and secure mounting.
Open one of our PTZ camera mounts and you’ll find a detailed installation manual that outlines instructions for mounting your camera to various surface types like drywall, block, and hard surfaces. Each camera mount is designed for flexibility, allowing installers to easily level each mounting location with special slotted holes. PTZ camera mounts are designed by audiovisual professionals for audiovisual professionals. With a ten-year warranty on every mount, we stand behind the quality of these camera mounts.
Designed for Success
This set includes a ceiling bracket and a camera bracket. The ceiling bracket can be securely mounted to any wood or drywall ceiling, as well as US or European electrical gang box. Once your ceiling bracket is securely attached to your ceiling attach your PTZ camera using the included 1’4-20 screw. Next, attach the two brackets by sliding the camera bracket into the ceiling bracket.
Please note: Once the camera brackets are connected, use the included safety screws to ensure that the mounts do not disconnect.
PTZ Camera Mount Types
|Wall||HCM-1-xx||$99||Setup Guide | Data Sheet|
|HCM-2-xx||$132||Setup Guide | Data Sheet|
|PT-WM-3-xx||$121||Setup Guide | Data Sheet|
|Ceiling||PT-CM-1-xx||$66||Setup Guide | Data Sheet|
|PT-CM-3-xx||$66||Setup Guide | Data Sheet|
|Pole||HCM-1C-WH||$121||Setup Guide | Data Sheet|
|HCM-2C-WH||$154||Setup Guide | Data Sheet|

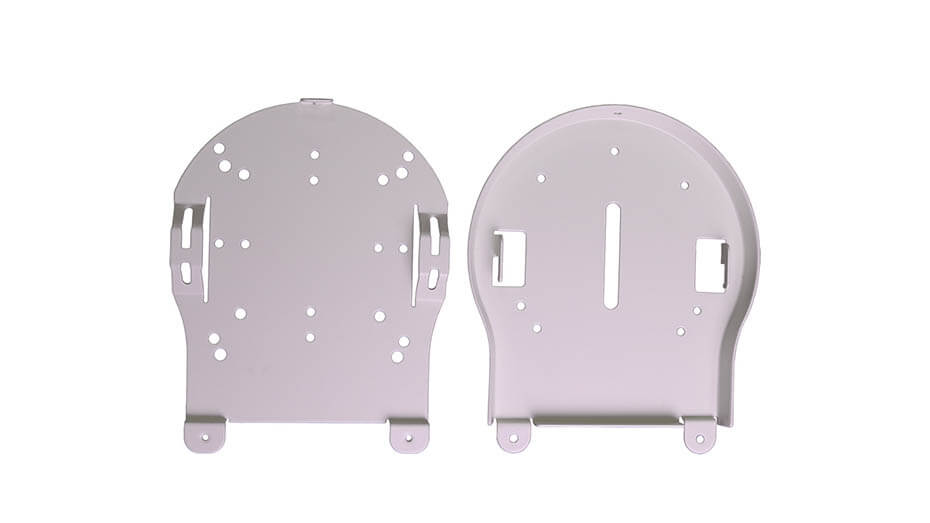

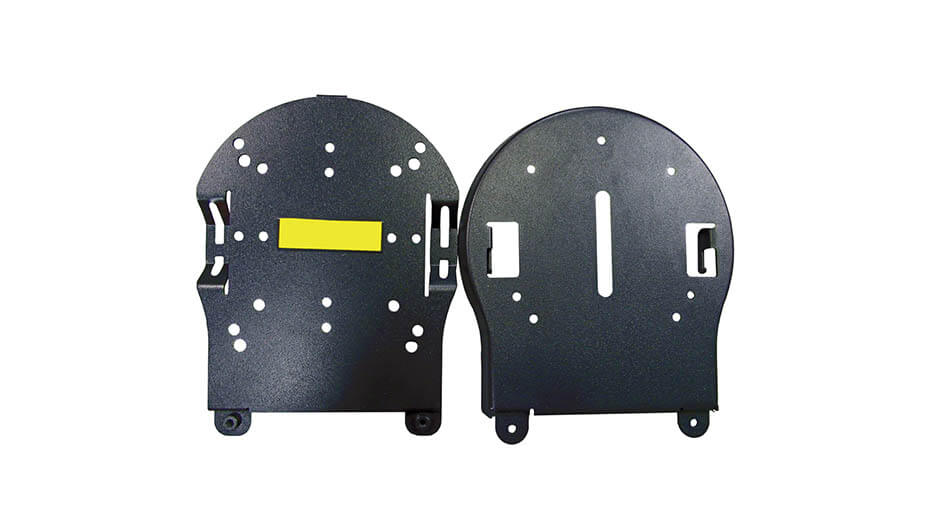

PTZ Camera Ceiling Mounts
Please note: This Universal Ceiling Mount was designed specifically as an ideal way to ceiling mount PTZ cameras. Constructed from heavy gauge steel, this mount comes with 10-year manufacturer warranty.

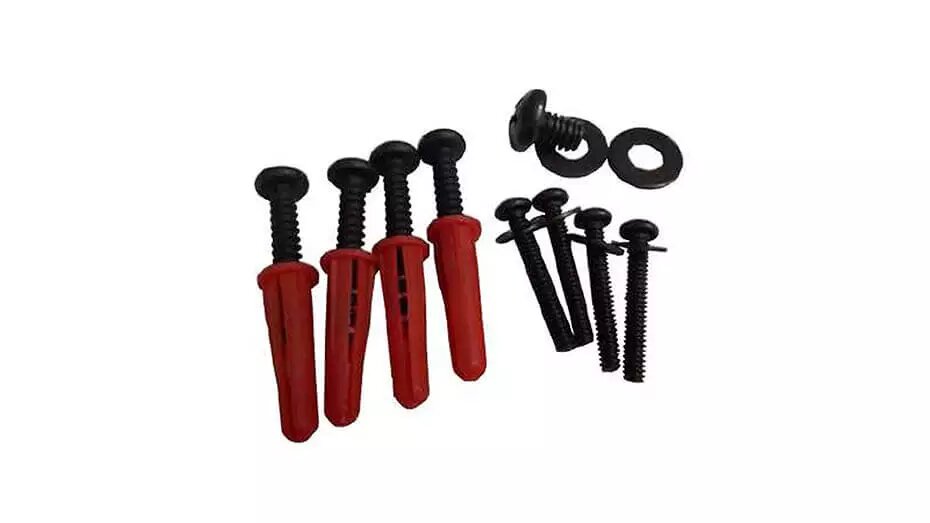

Here is a list of hardware that we include to make sure you are ready for any mounting scenario. Reference our manual here for more information.
- Ceiling Bracket, Qty. 1
- Camera Bracket Qty. 1
- Qty. 1 1/4-20 x 3/8” Philips Pan-Head Machine Screw for Camera Mounting
- Qty. 2 1/4” USS Flat Washer for ¼-20 screw
- Qty. 3 M3 x 6mm Phillips Pan Head Machine Screw – Safety Screw
- Qty. 2 #6-32 x 1” Phillips Pan Head Machine Screw – U.S. box mounting screw
- Qty. 2 #8-32 x 1” Phillips Pan Head Machine Screw – U.S. box mounting screw
- Qty. 2 M3.5 x 25mm Phillips Pan Head Machine Screw – European box mounting screw
- Qty. 4 #10 x 1-1/4” Phillips Pan Head Sheet Metal Screw
- Qty. 4 #10-12 x 1” Conical Plastic Anchor
