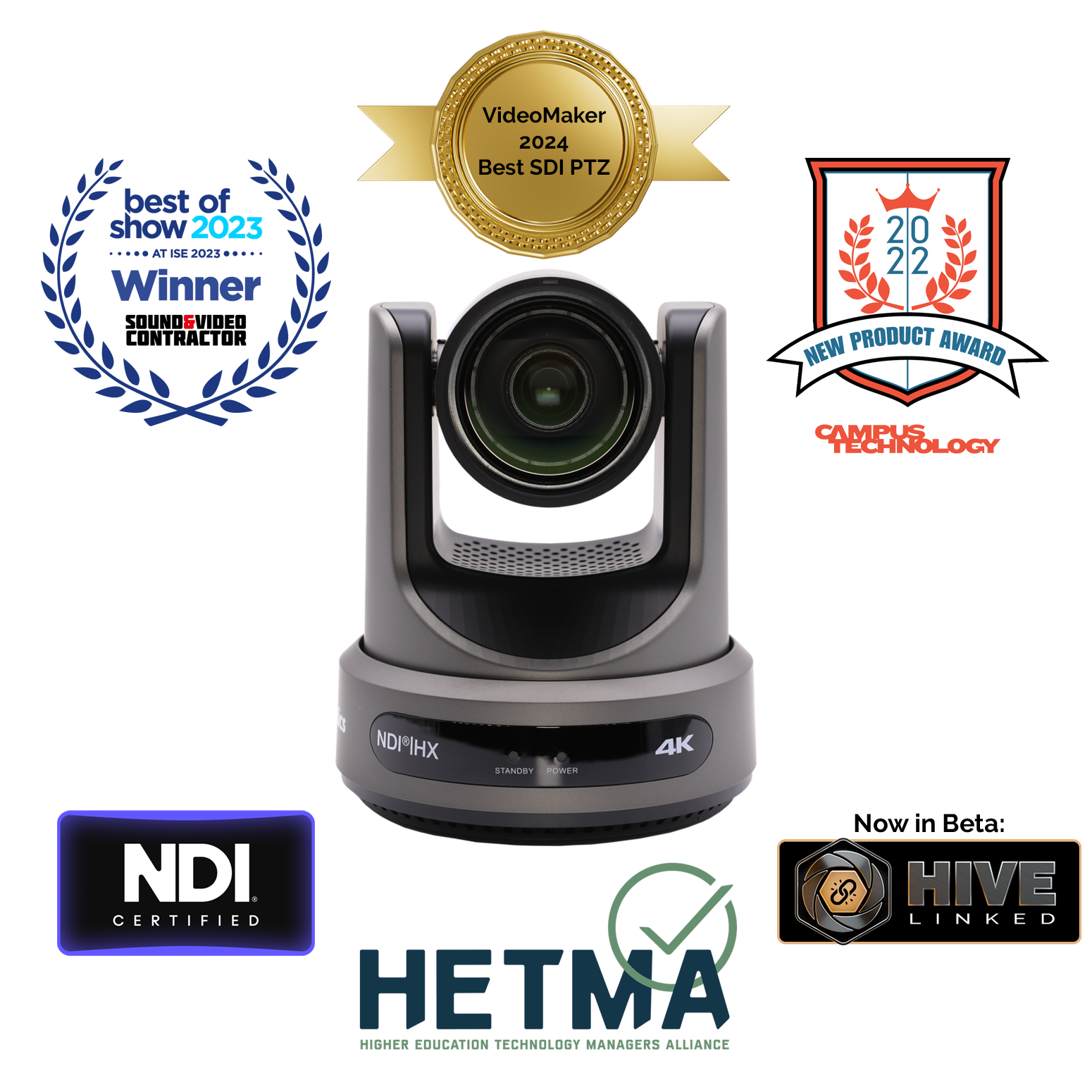

PTZOptics Move 4K

NOW SHIPPING:
The Move 4K, a 4K auto-tracking PTZ camera

Available in 12x, 20x, and 30x

A New Standard for PTZOptics Cameras

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
3.5mm Audio InputCan be used to embed audio via SDI, HDMI, USB and NDI connectionsRS-485 Serial Camera Control Port — Preferable for long cable runs, use with our serial joystick controllersRS-232 Serial Camera Control Ports (IN/OUT) — Ideal for daisy-chained PTZ camera control without the need for networking equipment12V DC (10.8 – 13.0V DC) Power Port — Optional method of powering the cameraEthernet Port — For camera control, provides PoE+ (Power over Ethernet Type 2) 802.3at. This port is used for NDI, SRT, RTSP and RTMP video streaming up to 4K@60fpsUSB 2.0 Connection — Up to 4K@30fps video output3G-SDI Connection — Up to 1080p@60fps video outputHDMI Connection — Up to 4K@60fps video output

Designed with the Future in Mind

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track.

Control your production from behind the scenes – or right in front of them. With the Move 4K’s unique Presenter Lock™ technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.

In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI — updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Looking for even more control options? Check out our Voice Tracking features, now in beta.

Discreet Mounting Options

Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Click the links below to learn more about our PTZ mounts:

Take Control Your Way

Users can control Move 4K cameras using video production software and hardware such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, Tricaster, and the Elgato StreamDeck — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as PTZOptics Hive and Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
PTZ Control Pro 2 app

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:
  • Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS and Twitch
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!
To view a list of free software compatible with Move 4K cameras, check out the Software tab at the top of this page. View a full list of our free software here.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Move 4K with 5 year warranty
Continuous firmware updates for the Move 4K

PTZOptics Continuous Advantage

PTZOptics products continuously improve over their lifespan. Since 2014, PTZOptics has provided customers with regular, free product updates based on customer feedback, enhancing the value and functionality of their products over time. For example, the PTZOptics award-winning second generation camera line was improved with over 100 new features over its 7-year production life-span. Beginning in 2023, updates can be applied with a single click. Additionally, our new PTZOptics Discord channel allows users to communicate directly with our engineering team and access beta firmware. This approach enables products to evolve with users’ needs, increasing their overall value. Learn about our beta tester program here.

Unparalleled Value, Award-Winning Support

When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
PTZOptics support team

Features and
benefits

The PTZOptics Difference Is Clear

Move 4K

  • Available in 12x, 20x, and 30x
  • Up to 4K @ 60 FPS Resolution
  • 5 Year Warranty
  • USB 2.0 (Type A)
  • SDI
  • NDI®
  • HDMI
  • IP
  • Audio In 3.5mm
  • Built-In Tally Light
  • Hive-Linked: PTZ Control From Anywhere Using Hive
  • Built-In Auto-Tracking
  • Auto-Framing (Group Lock): Track Groups with Ease
  • Presenter Lock: Track Specific People

Generic 4K PTZ Camera

  • Available only in 20x
  • Up to 4K @ 60 FPS Resolution
  • 5 Year Warranty
  • USB 2.0 (Type A)
  • SDI
  • NDI®
  • HDMI
  • IP
  • Audio In 3.5mm
  • Built-In Tally Light
  • Hive-Linked: PTZ Control From Anywhere Using Hive
  • Built-In Auto-Tracking
  • Auto-Framing (Group Lock): Track Groups with Ease
  • Presenter Lock: Track Specific People

Hive-Linked

The Move 4K Connects Instantly to Hive, Right Out of the Box

Easily control your Move 4K from anywhere in the world with just one simple link. PTZOptics Hive is the keystone of the PTZOptics ecosystem, offering a centralized platform that enhances your PTZOptics cameras. After a one-time link to the Hive, users can control their cameras anytime, anywhere. Hive-Linked cameras can be connected anytime they are plugged into a network – no application or additional hardware required.

Click to enlarge!

Where to Buy

Ready to get started? Just fill out the form below and we’ll be in touch shortly.

Proudly Partnering With:

Partnering with Broadfield
Partnering with Jenne
Northamber
Starin
Worldwide PTZOptics Partners

See What Our Customers Are Saying

Field-of-View Calculator

Enter the distance.
Show output in:

Calculate

Image Width

icon Fully zoomed in:

icon Fully zoomed out:

Note: Image ratio is displayed in 16:9

Check Out Our Other Auto-Tracking Solutions!

Move SE with NDI logo angle left

Move SE

Best NDI® Camera

Starting at $1099 MSRP

Link 4K angle right

Link 4K

Best Pro Dante AV-H Camera

Starting at $1979 MSRP

The Move 4K is compliant with NDAA 2019, Section 889. This product does not contain components from any of the companies highlighted in NDAA 2019, Section 889.
Image Sensor & Lens Video Sensor 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Estimated 35mm Equivalencies are here.
Lens (35mm Equivalencies) 12x: 25mm ~ 299mm, F1.8 ~ F2.6
20x: 31mm ~ 589mm, F1.58 ~ F3.95
30x: 32mm ~ 825mm, F1.61 ~ F5.19
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
Display Field of View 12x: 82.8°
20x: 66.6°
30x: 66.7°
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan/Tilt Movement Pan Movement ±170°
Pan Speed 1.7°/s ~ 100°/s
Tilt Movement -30° ~ +90°
Tilt Speed 1.7°/s ~ 69.9°/s
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Options Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Physical Specifications Material Aluminum, Plastic
Color White and Gray
Dimensions (W x D x H) 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
Weight 12x and 20x: 3.25 lbs (1.47 kg)
30x: 4.41 lbs (2.0 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)
Rear Board Connectors HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at)
Power Jack JEITA type (DC IN 12V)


New Firmware Features for the Move 4K

Currently available for 12x, 20x, and 30x models!

Check out written instructions on how to update your camera’s firmware here.

7/3/2024 Move 4K Firmware Feature Highlights:

Subject Selection

A unique number is now provided for each subject shown in the live video area of the web interface. This new feature allows you to quickly switch between subjects that you would like to track using the web-interface or the IR remote control. Plus, our intuitive bounding box system only appears on the web interface, keeping your SDI, HDMI, USB, and NDI feeds clean and distraction-free. Simplify your video experience with our smart auto-tracking technology!

Auto-Tracking Composition Modes

Introducing composition framing for auto-tracking in the Move 4K. Whether you prefer your subject centered, to the left, or to the right, these innovative modes offer the flexibility to frame your shots just as you envision. The camera seamlessly tracks your subject, ensuring they stay in the perfect spot within the scene. These new modes allow camera operators to determine how they want the subject framed in the scene while the camera automatically tracks the subject.

Auto-Tracking Zoom Modes

Take control of your visuals with the Move 4K’s advanced Auto-Tracking Zoom Modes! We’re excited to introduce four new zoom modes: Dynamic, Close-Up, Medium, and Long Shot. Dynamic Zoom Mode puts you in the director’s seat, giving you full command over optical zoom during auto-tracking. Prefer consistent framing? Choose from Close-Up, Medium, or Long Shot modes for steady, uniform zoom levels. This feature is great for tracking subjects with one close-up view and a second wide angle shot.

Track Now

Introducing the ‘Track Now’ feature in our Move SE and 4K cameras! With ‘Track Now’, the camera begins tracking from its current position, offering immediate and seamless subject following. This mode is a perfect addition to our standard auto-tracking, which starts from a pre-defined PTZ preset location such as a teachers desk or presenter podium.

Auto-Tracking Sensitivity

Enhance your camera operations with the Move 4K’s new Auto-Tracking Sensitivity feature! This customizable sensitivity setting allows you to adjust camera movements to your specific needs, ensuring smooth, responsive tracking in every scene. Whether it’s a subtle pan or a quick zoom, your Move 4K can adapt to your creative vision. Experience seamless, professional-grade video with just a few adjustments.

Auto-Framing

Auto-Framing is now available in the PTZOptics Move 4K cameras! Auto-Framing seamlessly includes multiple subjects in every shot, intelligently adjusting pan, tilt, and zoom to frame your composition perfectly. Whether it’s a group discussion, a team presentation, or a special event, the camera can intelligently adjust to frame all participants in a single, harmonious scene.

Note: Auto-Framing operates independently and cannot be used simultaneously with auto-tracking.

PTZOptics API G3

Exciting news for developers! We’re thrilled to introduce the PTZOptics API G3, a significant leap forward in camera control technology. Building on the success of our previous versions, the new API expands your capabilities with over five times more options. Now, harness the power of advanced features like auto-tracking, auto-framing, and subject selection, all through our robust API. PTZOptics API G3 is designed to empower our developer community, enabling you to create more dynamic, responsive, customized camera experiences. Dive into a world of possibilities with PTZOptics API G3!

Preset Tour

The Preset Tour feature allows users to cycle through a specific set of saved pan, tilt, and zoom presets. Designed for automation and precision, this feature allows you to cycle through a series of customized pan, tilt, and zoom presets effortlessly. Once activated, the Preset Tour navigates through your pre-determined settings at a chosen speed, ensuring smooth transitions and consistent framing. Ideal for controlled environments like studios, conferences, or theaters, where precise camera positioning is key.

Privacy Mode

Introducing the Privacy Mode on PTZOptics cameras, a feature designed for your peace of mind. In today’s world, privacy and security are paramount, especially in sensitive environments. Privacy Mode goes beyond just turning off the camera. When activated, it places the camera in a standby state, closes the lens iris, and physically turns the lens to face the wall, ensuring complete privacy. Unlike powering down, this mode keeps the camera ready to activate instantly when needed. This blend of convenience and security makes Privacy Mode ideal for confidential settings where quick reactivation is essential.

FreeD

Step into the future of video production with FreeD support now available on PTZOptics Move 4K cameras. FreeD, a camera tracking data protocol, unlocks new creative possibilities. By integrating PTZ camera position data with FreeD systems such as those found in Unreal Engine, you can craft immersive virtual environments and enhance your live video projects. This feature is perfect for creators seeking to blend physical and digital realms, offering a dynamic and engaging viewer experience. Dive into a world where your imagination is your only limit with PTZOptics Move 4K and FreeD.

PTZOptics Move 4K Documentation

SKUMSRPDocuments
PT12X-4K-xx-G3$1,979Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders
PT20X-4K-xx-G3$2,199Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders | HETMA Approval Report
PT30X-4K-xx-G3$2,419Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders

Note: “xx” stands for the color. Use “WH” for white and “GY” for black/gray.

The PTZOptics Move Series is our first line of 4K PTZ cameras, featuring auto-tracking to allow a single operator to take on the task of a full production team. The Move camera has outputs for SDI, HDMI, USB, and IP and comes with either a 12X, 20X, or 30X optical zoom, as well as a built-in tally light. The Move 4K comes native with NDI®|HX, so no additional license is needed to access your camera over the network.
Looking to take more control? You can also use our SuperJoy joystick controller or a camera control app to elevate your production.
The Move 4K comes with a 5 year limited parts and labor warranty.

Accessories

These PTZOptics accessories are compatible with our Move 4K cameras.

Mounts

PTZOptics mounts are the highest quality option for affixing your camera to a wall, ceiling, or pole. Our universal design works with almost any camera and features a sleek silhouette for discreet mounting scenarios.  Available in black or white.

PTZOptics Ceiling Mount

Universal ceiling mount

HuddleCamHD Wall Mount

Universal small-based wall mount

HuddleCamHD Pole Mount

Universal small-based pole mount

PTZOptics Large Base Ceiling Mount

Ceiling mount for Move 4K and Link 4K 30x

PTZOptics Large Base Wall Mount

Wall mount for Move 4K and Link 4K 30x

Joysticks

Streamline your production workflow with a joystick camera controller. Perfect for users of all experience levels, a joystick controller can help take your camera operation to the next level.

HuddleCamHD HC Joy

Serial PTZ Camera Joystick Controller

PTZOptics PT Joy

IP or Serial PTZ Camera Joystick Controller

PTZOptics SuperJoy

IP & Serial PTZ Camera Joystick Controller

Cables

Connect your camera with a cable from PTZOptics—available in 25, 50, 75, and 100 ft. options.

3G SDI Cabling

3G HD-SDI Male to Male cables

DB9 Extender Cable

Serial DB9 Male to Female cables

Cascade Cable

VISCA cascade Male to Male cables

Looking for More?

PTZOptics offers a large selection of accessories to enhance your setup and suit your unique production needs.
Cables

WirelessCable (single and pre-paired)

Wireless Connectivity for IP Video Productions

Spare Infrared PT Remote

Operates all PTZOptics cameras plus the HuddleCamHD Pro and Pro IP

Spare Power Supply

For 12X, 20X & 30X PTZ model PTZOptics cameras

Apps and Software for the Move 4K

Below are several applications that can be used with Move 4K cameras. If you have any questions about the use of the applications, please feel free to submit a ticket or review our knowledge base articles.

NewBlueFX live production graphics software is now included with all PTZOptics cameras. This software allows you to invigorate your meetings and live video presentations with visually appealing graphics and useful information. You can claim your free software here.

The CMP allows users to manage multiple PTZOptics cameras at once. Turn any G2 PoE PTZOptics camera into an auto-tracking camera with the click of a button. The platform includes the most commonly used features of other PTZ camera applications.

The PTZControl Pro 2 app offers easy control of PTZOptics cameras from any iOS device. Set and call presets, make color adjustments, and access documentation with this all-in-one solution.

Advanced wireless PTZ camera control from your iOSAndroid, or Kindle device

PTZOptics IP ADDRESS SETTING TOOL

Upgrade Tool

Download this tool to apply network firmware updates to the camera, as well as change the camera’s IP address (updated tool). For more firmware tools and files, please visit the Firmware page.

Advanced PTZ camera controls, hotkeys support, and much more available inside of OBS

PTZ camera controllers that are dockable within the OBS interface. The included HTML files feature a variety of customizable PTZ controllers that can be used as with the OBS Custom Browser Docks feature. Custom Browser Docks allow you to place the PTZ controllers directly into the OBS interface.

This Twitch extension allows your audience to control your PTZOptics camera in Twitch.

Control your PTZOptics camera using MIDI commands from programs such as Ableton, Pro Tools, and more.

Use this tool in AMCAP Video Capturing App to test the camera’s USB feed.

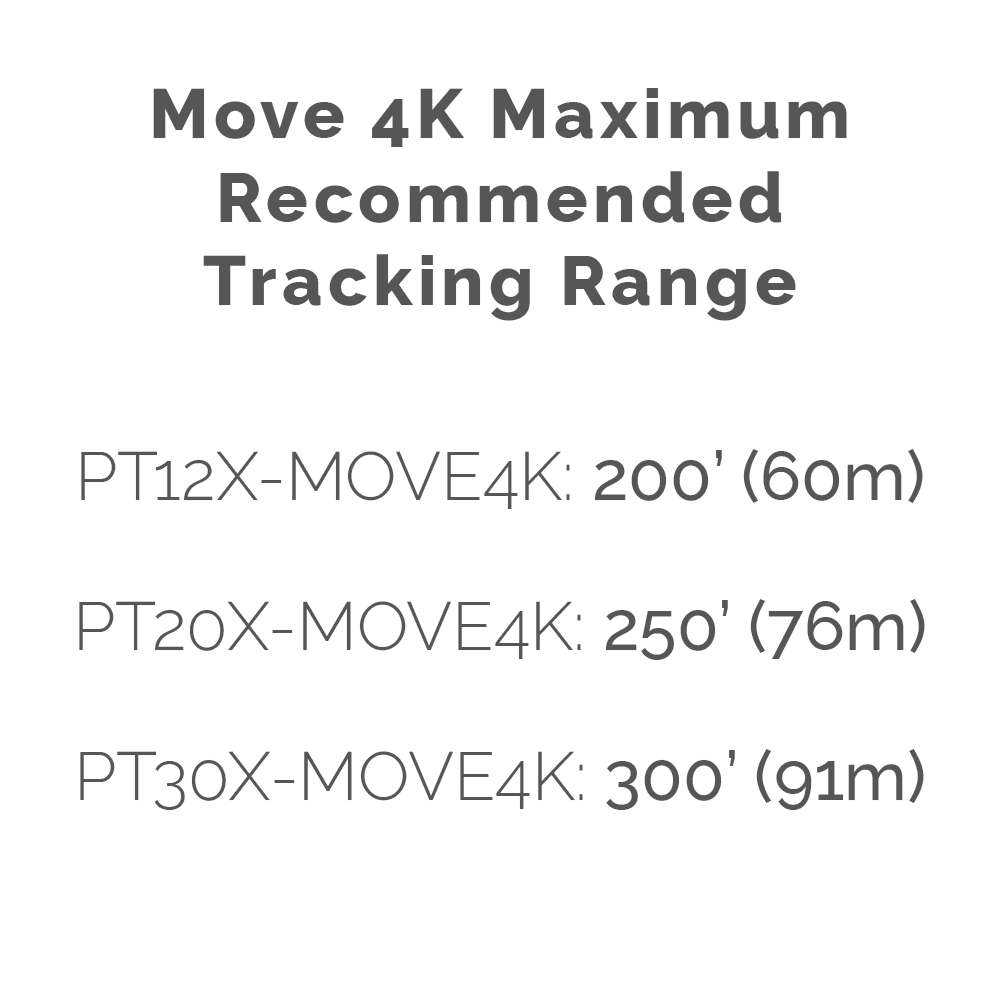

Move 4K 12X:
Maximum Recommended Tracking Range: 200′



Move 4K 20X:
Maximum Recommended Tracking Range: 250′



Move 4K 30X:
Maximum Recommended Tracking Range: 300′

The 12X image sensor is 1/2.5″ CMOS.


The 20X image sensor is 1/1.8″ CMOS.


The 30X image sensor is 1/1.8″ CMOS.

The image sensor is the same size on the 20x and the 30x versions of the Move 4K.

The amount of bandwidth used by the Move 4K is variable. For this camera, bandwidth is equal to the bitrate in kbps.



The Move 4K’s Bitrate Settings are located in the “Audio & Video” tab under IP Video Streams. The Move 4K allows the user to adjust the bitrate in a range of 32-102400 kbps or 0.03125 – 100 megabit/second. We have recommended values which are selectable in the Video Template dropdown. For example, the “Ultra” Template (4K) is 3840×2160 with a recommended bitrate of 16384 kbps or 16 Megabit/second.



The Move 4K offers several Video Templates: Ultra, High, Medium, and Low which are all adjustable, as well as our new Certified NDI®|HX3 Templates (HX3 settings are not customizable).



In other words, the Move 4k gives users the ability to control the amount of bandwidth / bitrate used to give them the best experience to meet the needs of their production.

3G-SDI is only capable of 1080p-60fps.

Yes, it is possible, as long as your USB drive is fast enough. USB 2.0 has a max read/write speed of 60Mbs. In actual use, this can be less. 4k video streams in standard at 15 to 25Mbs, so as long as your USB drive can transfer data at 26Mbs or more, then you should be good to go.

No. The Move 4K can output video with SDI or HDMI, but not both at the same time.

For full pan and tilt information, as well as a host of other specifications, please refer to the Move 4K’s product documentation:

Give Us a Call!

Select your country or territory:

Toll-Free: (833) 888-9706
Direct Line: (484) 593-2247

Don’t see your country listed?

Call us directly at +1 (484) 593-2247 (international call fees may apply) or email us at [email protected].

Toll-Free:

For all customers based in the countries and territories listed below, call (833) 888-9706.



  • United States
  • American Samoa
  • Guam
  • Northern Mariana Islands
  • Puerto Rico
  • US Virgin Islands
  • Anguilla
  • Antigua & Barbuda
  • The Bahamas
  • Barbados
  • Bermuda
  • British Virgin Islands
  • Canada
  • The Cayman Islands
  • Dominica
  • The Dominican Republic
  • Grenada
  • Jamaica
  • Montserrat
  • Saint Kitts and Nevis
  • Saint Lucia
  • Saint Vincent and the Grenadines
  • Sint Maarten
  • Trinidad and Tobago
  • Turks & Caicos



Don’t see your country listed? Call us directly at +1 (484) 593-2247 (international call fees may apply) or email us at [email protected].

For all customers living in the countries below, call the number listed with the appropriate country.





Don’t see your country listed? Call us directly at +1 (484) 593-2247 (international call fees may apply) or email us at [email protected].
