PTZ Camera Cables & Power Supplies

PTZOptics offers a PTZ camera cables for video and control in pre-terminated lenghts of 25′ (7 meters), 50′ (15 meters), 75′ (22 meters) and 100′ (30 meters). Our 3G SDI cables are plenum rated cables which can be used above ceilings and inside walls for professional installations. Our 3G SDI cables for PTZ cameras are ideal for video resolutions up to 1080p at 60 frames per second. These 3G-SDI cables include locking connectors which securely connect to the back of PTZ cameras SDI video ouputs ports

Our DB9 serial control cabling is to be used with PTZ joystick controllers such as the Serial Joystick. This cabling is used to extend the DB9 joystick output to the first PTZ camera in your control system. Subsequent cameras in a daisy-chain setup should use the 8-pin mini-din cascasde cables with the PTZ cameras “out” port for camera controls. Serial control cabling is ideal for super low latency connectivity and daisy-chain camera control setups for PTZ joystick avoid running “home run” cabling to each camera in your system.

3G SDI Cabling

25′ HDSDI
50′ HDSDI
75′ HDSDI
100′ HDSDI

25 foot HDSDI
50 foot HDSDI
75 foot HDSDI
100 foot HDSDI
SKU: HDSDI-25
MSRP: $77
UPC: 53176516400
SKU: HDSDI-50
MSRP: $127
UPC: 53176516394
SKU: HDSDI-75
MSRP: $175
UPC: 53176516387
SKU: HDSDI-100
MSRP: $224
UPC: 53176516370

3G plenum rated HD-SDI cables are made for broadcasting a video signal from your camera to a video input such as a broadcast switcher or frame grabber. The 3G HD-SDI male to male cables are made with Belden 1695A premium cabling. These are plenum rated cables that come in white.

DB9 Extender

25′ DB9 Extender
50′ DB9 Extender
75′ DB9 Extender
100′ DB9 Extender

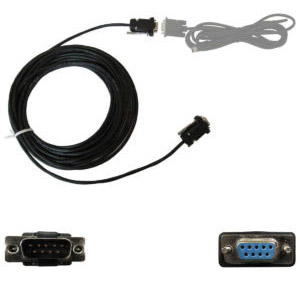

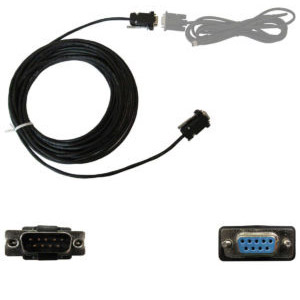

25 foot DB9 with RS-232

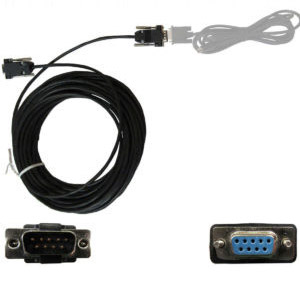

50 foot DB9 with RS-232
75 foot DB9 with RS-232

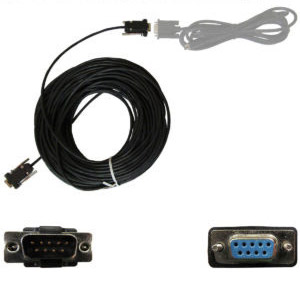

100 foot DB9 with RS-232
SKU: DB9M-F-25
MSRP: $53
UPC: 53176516509
SKU: DB9M-F-50
MSRP: $69
UPC: 53176516431
SKU: DB9M-F-75
MSRP: $85
UPC: 53176516424
SKU: DB9M-F-100
MSRP: $102
UPC: 53176516417

The DB9 Extenders give you the ability to extend your serial/VISCA cables over a longer distance, giving control of your camera via joystick or USB to Serial adapter to your PC with the VISCA software of your choice. These serial DB9 Male to Female cables are plenum rated and they come in black.

CASCADE

25′ CASCADE
50′ CASCADE
75′ CASCADE
100′ CASCADE

25 foot Cascade
50 foot Cascade
75 foot Cascade
100 foot Cascade
SKU: VISCA-25
MSRP: $53
UPC: 53176516363
SKU: VISCA-50
MSRP: $69
UPC: 53176516356
SKU: VISCA-75
MSRP: $85
UPC: 53176516349
SKU: VISCA-100
MSRP: $102
UPC: 53176516332

CASCADE cables are designed to daisy chain cameras to each other for the ability to control multiple cameras with a joystick or VISCA software. These male to male VISCA cascade cables includes an 8-pin mini-din connector on each end. These cables are plenum rated and they come in black.

Power Supplies

Below you will see the different power supplies we regularly stock; although we can buy whatever type is needed. Power supply type C is the European standard, type G is the United Kingdom standard, and type I is the Australian standard.

PT-PSB-C
PT-PSB-G
PT-PSB-I

PT-PSB-C
PT-PSB-G
PT-PSB-I
