PTZOptics

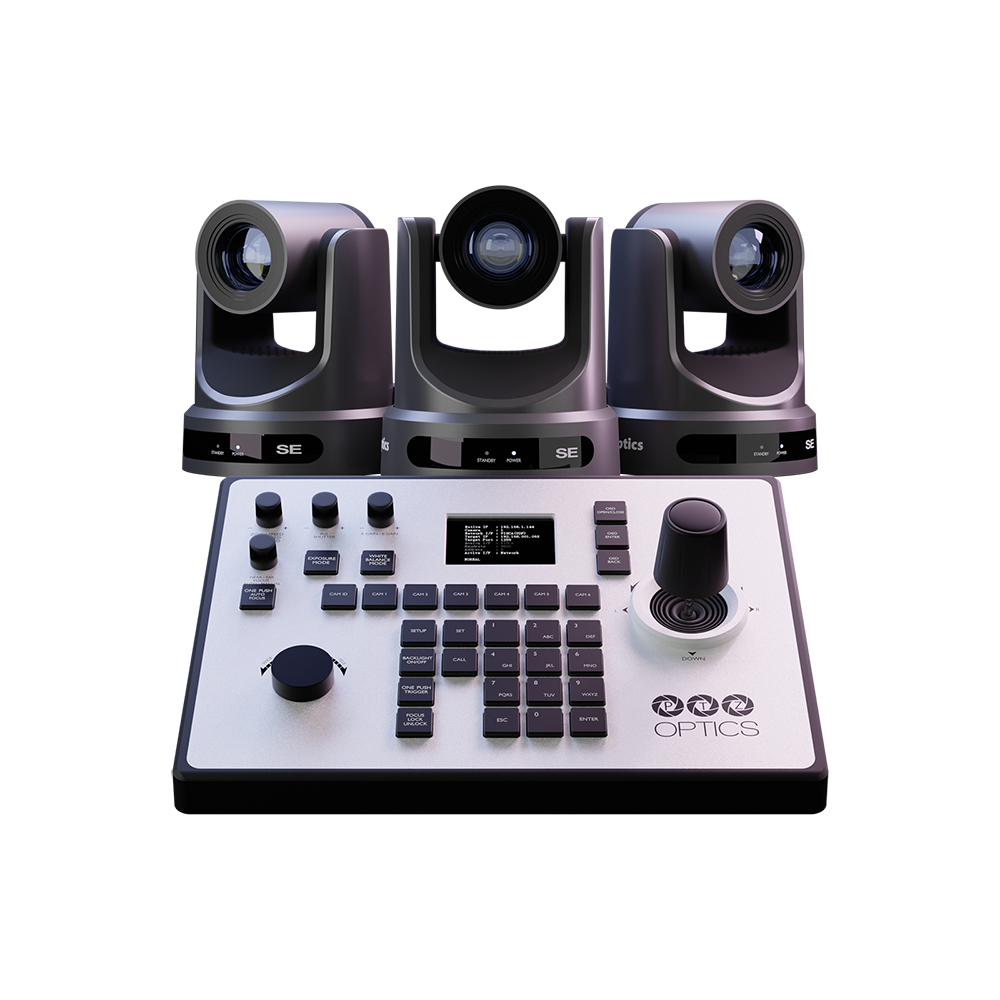

Producer SE Bundle
NOW SHIPPING:
Affordable Quality with the Producer SE Bundle
What You Get:
The Foundation of Your Video Production Setup
Looking to add video to your midsized or larger venue, school, house of worship or municipal meeting space? The PTZOptics Producer SE Bundle gets you started right away with three award-winning 20X Move SE cameras and a PT-JOY-G4 IP/serial connected joystick controller, all in one easy-to-afford package.
The Perfect Combo to Start Streaming or Recording
Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios. With the included PT-JOY-G4 IP/serial connected joystick controller, seamlessly integrate, manage multiple settings, and enjoy intuitive control for a budget-friendly price.
Designed with the Future in Mind
Move SE cameras deliver precision in every shot, even from a distance. Enjoy 1080p clarity, bringing lifelike quality to every frame, along with convenient auto-tracking capabilities. Offering an array of outputs, from SDI to HDMI, USB, NDI®
HX2, and IP, the Move SE cameras are the epitome of versatility and excellence. Users can control Move SE cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or use the PT-JOY-G4 joystick controller. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Pan, Tilt, Zoom, Track.
Through the Move SE’s updated web user interface, control the built-in auto-tracking capabilities — there’s no need to run software on another computer. Plus, PTZOptics’ one-click firmware updates from the web UI make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves. In addition, almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time. With PTZOptics Hive, easily control your Move SE cameras from anywhere in the world with just one simple link.
Enhanced Setup Management
The PT-JOY-G4’s newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.
For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.
Streamlined Production at Your Fingertips
With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:
- Operate cameras in basic, matrix and normal modes
- Access cameras and quickly recall preset locations
- Control white balance, red and blue gain, shutter speed and more!
- Use web-based and smartphone app control for added flexibility
PTZOptics CMP: Multiple Cameras, One Simple Solution
No matter how many cameras are deployed, the new PTZOptics Camera Management Platform, included in both Producer Bundles, allows users to manage multiple cameras at once. In-app tools like color correction can help easily change the look of one or multiple cameras on the fly. The PTZOptics Camera Management Platform is compatible with any desktop operating system—Windows, macOS, and Linux—and fits easily into any workflow using OBS, vMix, and other video production software.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our cameras come with a 5-year limited parts and labor warranty, and our joysticks come with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Why Producer
Bundles?
- Easy Setup
- PoE-Ready
- 1080p or 4K Resolution
- Seamless Integration
- Lifetime Support
- Best-in-Class Warranties
Bundle Comparison
Producer SE Bundle
-
3 PT20X-SE-GY-G3 Cameras
-
1 PT-JOY-G4 Joystick
-
Up to 1080p @ 60 FPS Resolution
-
USB 2.0 (Type C)
-
PoE
-
NDI® HX2 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP OR Serial (must manually toggle between the two)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX2 support for 1080p video up to 60fps
**Native NDI® HX2 support for 1080p video up to 60fps

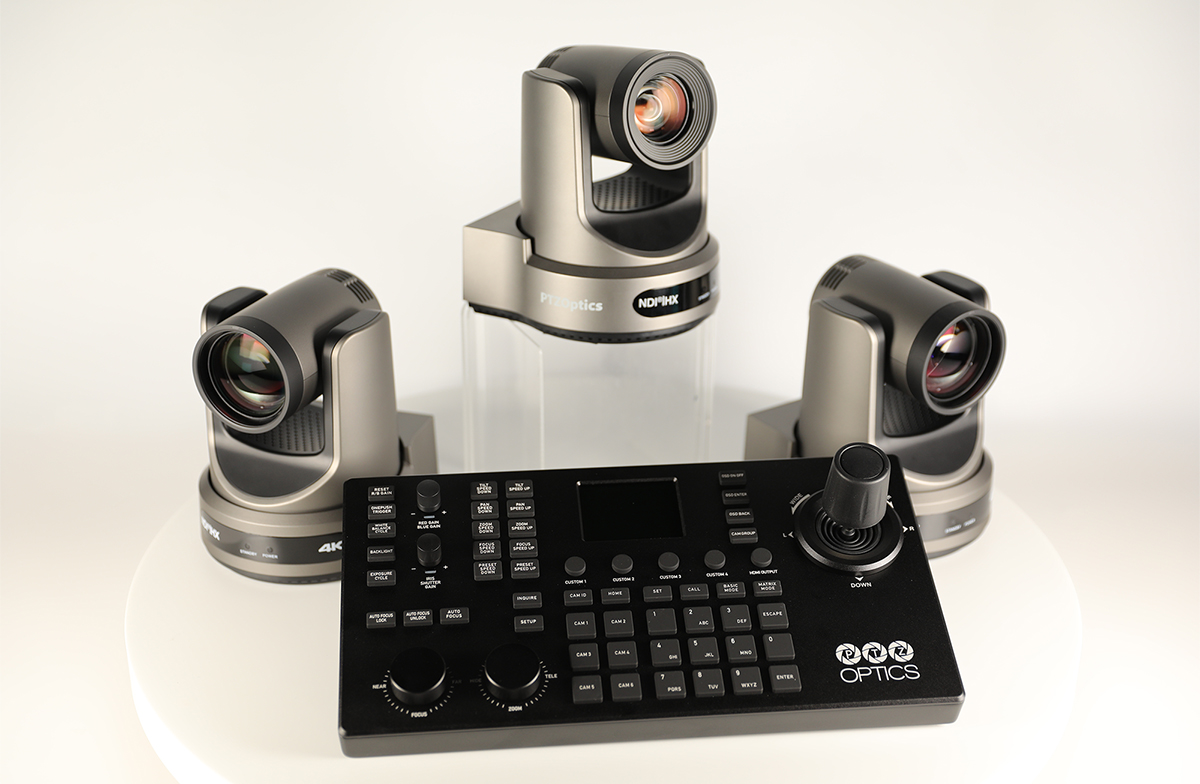

Producer 4K Bundle
-
3 PT20X-4K-GY-G3 Cameras
-
1 PT-SUPERJOY-G1 Joystick
-
Up to 4K @ 60 FPS Resolution
-
USB 2.0 (Type A)
-
PoE+
-
NDI® HX3 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX3 support for 4K video up to 60fps
**Native NDI® HX3 support for 4K video up to 60fps
AV Workflows
PTZOptics Producer Bundles can streamline production setups across a variety of settings:
Business:
Click to enlarge!
Healthcare:
Click to enlarge!
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
Producer SE Specs
Move SE camera specs
| Image Sensor & Lens | Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 720p-60/50 | |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) | |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
|
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
| Backlight Compensation | Supported | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
|
| Pan/Tilt Movement | Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s | |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Image Flip, Mirror and Freeze | Supported | |
| Presets | 255 Presets | |
| Preset Accuracy | 0.1° | |
| Power Options | Power Supply | DC 12V / PoE (802.3af) |
| Input Power | 2A (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up) 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
|
| Weight | 3.2 lbs. (1.445 kg) | |
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard |
| 1x HDMI: version 1.3 | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C | ||
| 1x USB 3.0 Type C | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| IR | 4x IR Addresses, Max distance 30ft / 9m | |
| Power Jack | JEITA type (DC IN 12V) | |
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE (802.3af) |
PT-JOY-G4 joystick specs
| Key Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Maximum Cameras | 253 cameras via network 7 cameras via serial VISCA | |
| Recommended Maximum Distance | RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m) | |
| Baud Rate | 1200 ~ 19200 bps | |
| Operation Specifications | Power | 6W (12VDC) / PoE (802.3af) |
| Working Temp | 14° F ~ 122° F (-10° C ~ +50° C) | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 4.45 lbs (2.02 kg) | |
| Dimensions (in.) | 11.938 W x 9.25 D x 4.25 H | |
| Dimensions (mm) | 303.23 W x 234.95 D x 107.95 H | |
| Other | Warranty | 2 Years |
Producer SE Specs
| Image Sensor & Lens | Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 720p-60/50 | |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) | |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
|
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
| Backlight Compensation | Supported | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
|
| Pan/Tilt Movement | Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s | |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Image Flip, Mirror and Freeze | Supported | |
| Presets | 255 Presets | |
| Preset Accuracy | 0.1° | |
| Power Options | Power Supply | DC 12V / PoE (802.3af) |
| Input Power | 2A (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up) 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
|
| Weight | 3.2 lbs. (1.445 kg) | |
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard |
| 1x HDMI: version 1.3 | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C | ||
| 1x USB 3.0 Type C | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| IR | 4x IR Addresses, Max distance 30ft / 9m | |
| Power Jack | JEITA type (DC IN 12V) | |
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE (802.3af) |
| Key Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Maximum Cameras | 253 cameras via network 7 cameras via serial VISCA | |
| Recommended Maximum Distance | RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m) | |
| Baud Rate | 1200 ~ 19200 bps | |
| Operation Specifications | Power | 6W (12VDC) / PoE (802.3af) |
| Working Temp | 14° F ~ 122° F (-10° C ~ +50° C) | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 4.45 lbs (2.02 kg) | |
| Dimensions (in.) | 11.938 W x 9.25 D x 4.25 H | |
| Dimensions (mm) | 303.23 W x 234.95 D x 107.95 H | |
| Other | Warranty | 2 Years |
Producer SE Bundle Documentation
Save $596 (14%)!
| SKU | MSRP | Documents and Info |
|---|---|---|
| Camera(s): PT20X-SE-GY-G3 | $1209 | Data Sheet | Manual | CAD Line Drawing |
| IP/Serial Joystick: PT-JOY-G4 | $714 | Data Sheet | Manual | CAD Line Drawing |
| Bundle: PT20XSE-PRODUCER-JOY4 | $3745 | Includes 3x Move SE 20X Cameras and 1x PT-JOY-G4 Controller |
The PTZOptics Producer bundles are designed with precision, choice, and value in mind. Whether you’re seeking 1080p excellence with the Producer SE or aspiring for 4K brilliance with the Producer 4K, we’ve got you covered. Every bundle guarantees captivating close-ups with the 20X lens, paired with controllers designed for effortless production. Your vision deserves the best tools – make your choice today.
The Move SE comes with a 5 year limited parts and labor warranty, and the PT-JOY-G4 comes with a 2 year limited parts and labor warranty.
