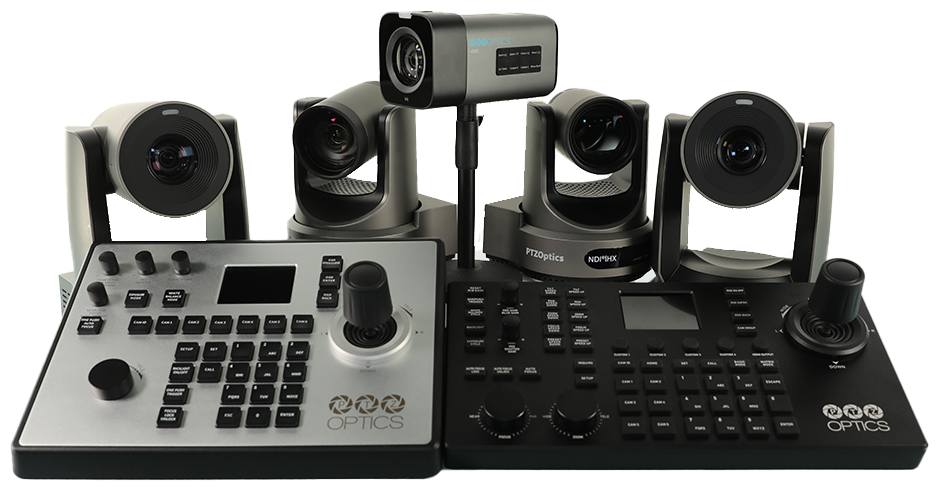

PTZOptics Producer Bundles
NOW SHIPPING:
Producer SE and Producer 4K
The Next Chapter in Modern Video Production
Your Next Chapter in Video Production Begins Here
Dive into the PTZOptics Producer bundles, our easy to setup systems, tailored for every production aspiration. Choose from the 1080p resolution Producer SE or elevate your vision with the 4K-ready Producer 4K. Each bundle is 100% PoE-ready for easy setup and breakdown or permanent installation. Share your vision with a trio of 20X PTZ cameras, ensuring close-up shots even from afar, and control it all with a PT-JOY-G4 IP/serial-connected joystick controller or the SuperJoy joystick controller.
1080p Excellence:

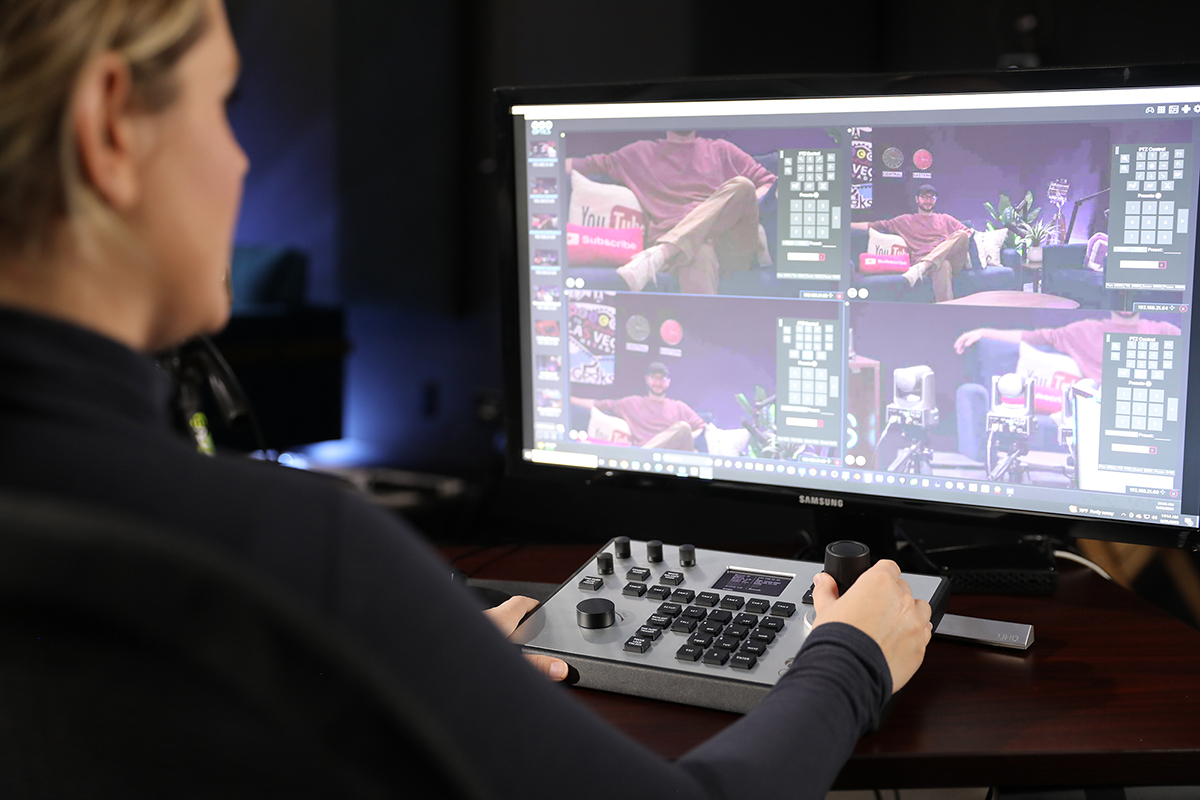

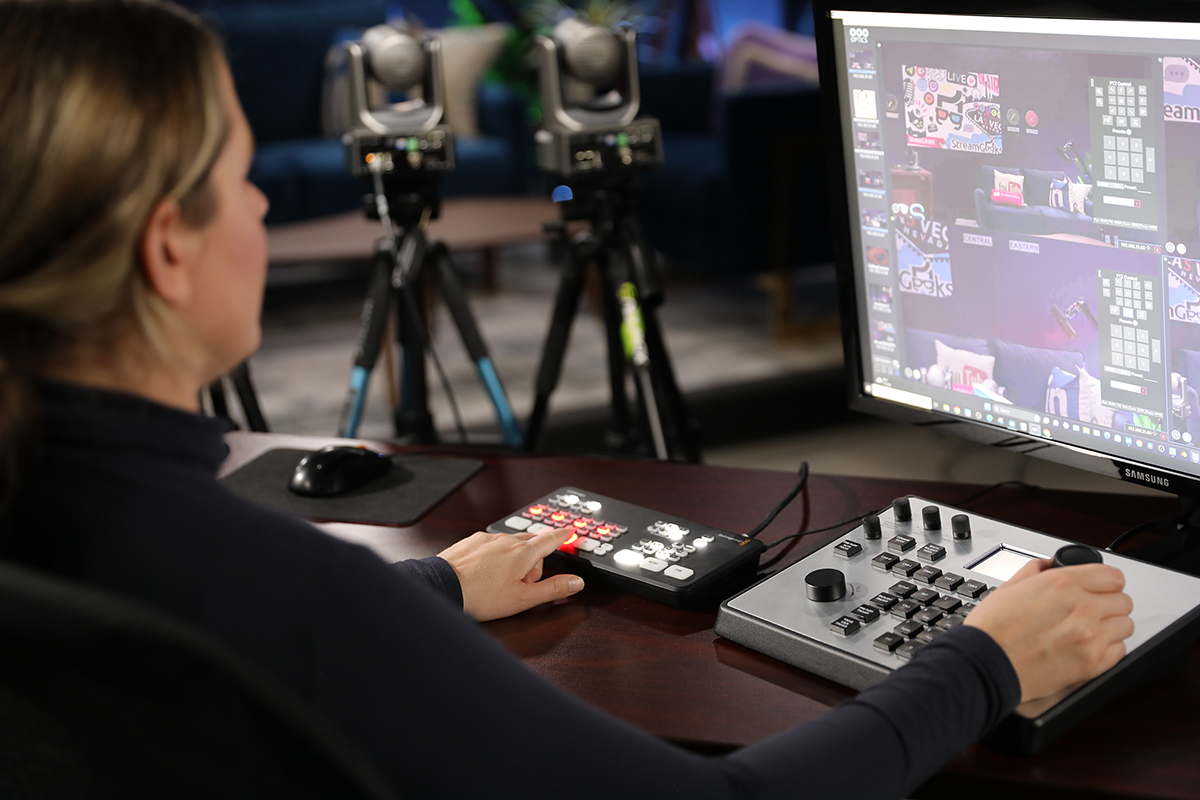

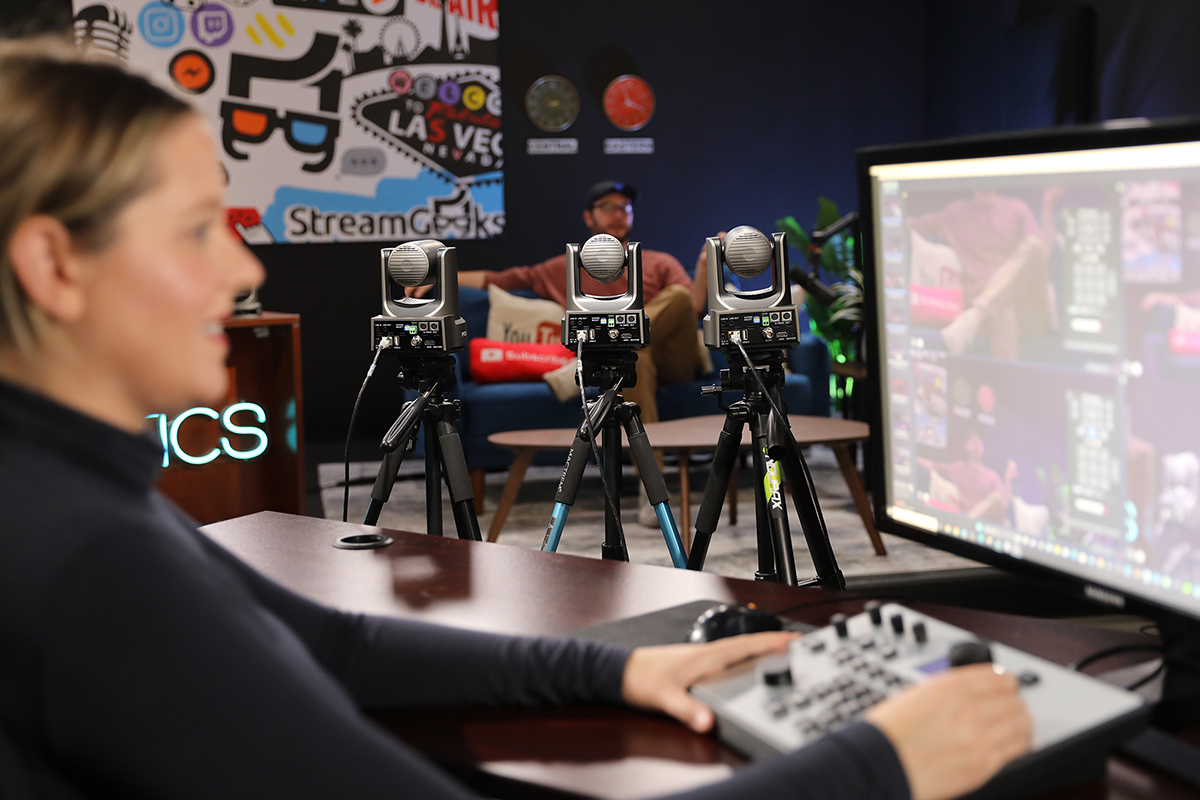

The Producer SE Bundle
With three award-winning 20X Move SE cameras, the Producer SE bundle delivers precision in every shot, even from a distance. Enjoy the lifelike quality and clarity of 1080p clarity in every frame and convenient auto-tracking capabilities. Plus, streamline your setup process with the included PT-JOY-G4 IP/serial connected joystick controller. Seamlessly integrate, manage multiple settings, and enjoy intuitive control for a budget-friendly price. Offering an array of outputs, from SDI to HDMI, USB, NDI® HX2, and IP, Move SE cameras are the epitome of versatility and excellence.
Ultimate Precision:

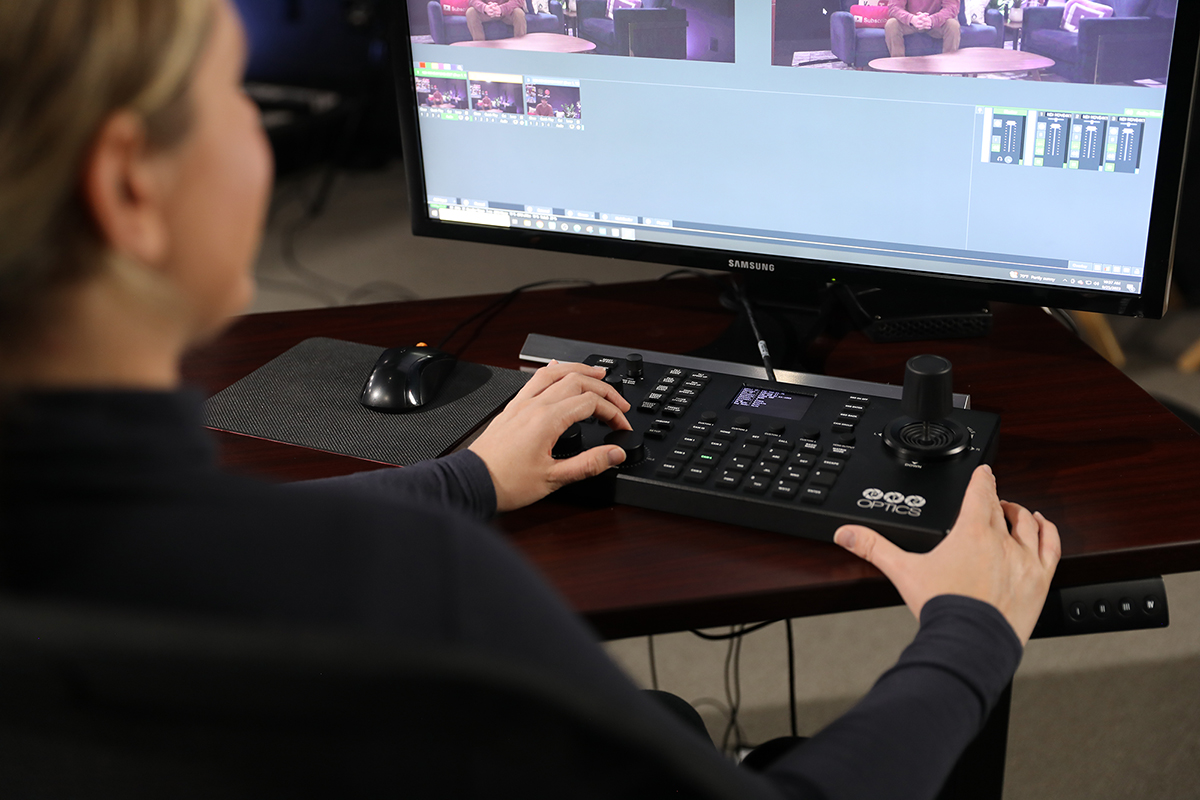

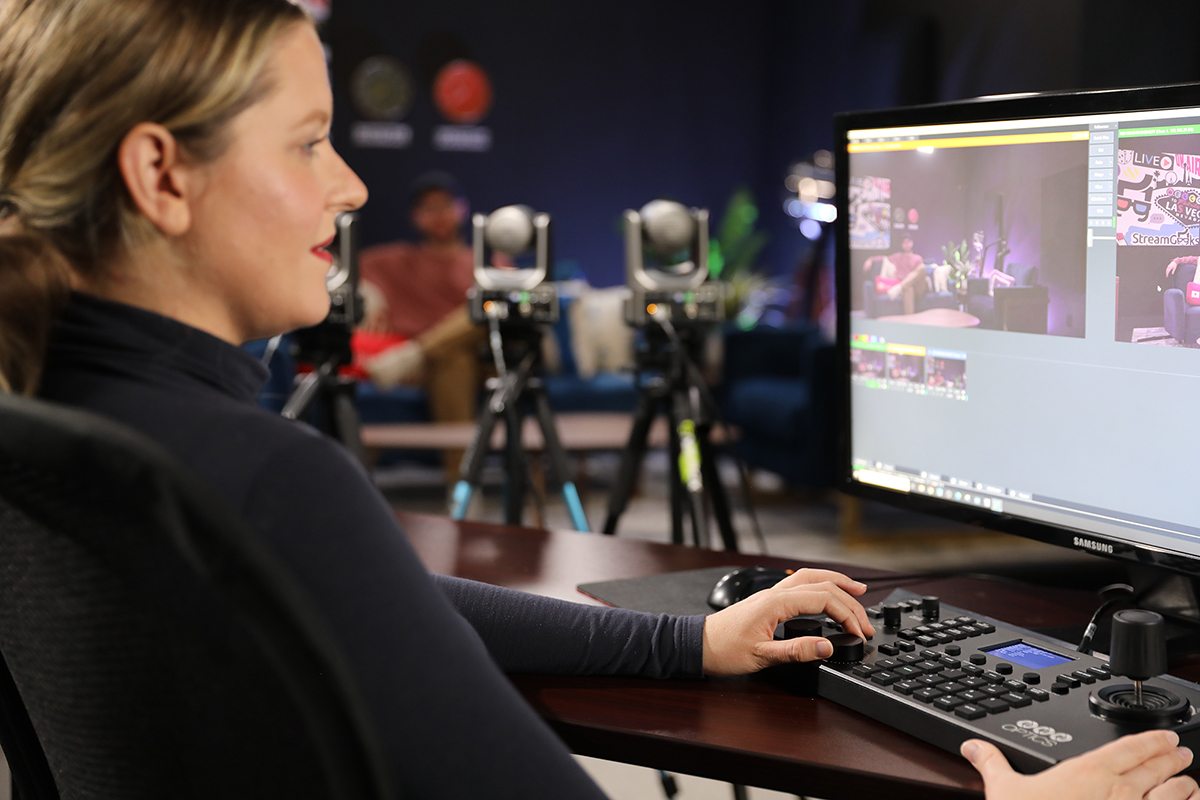

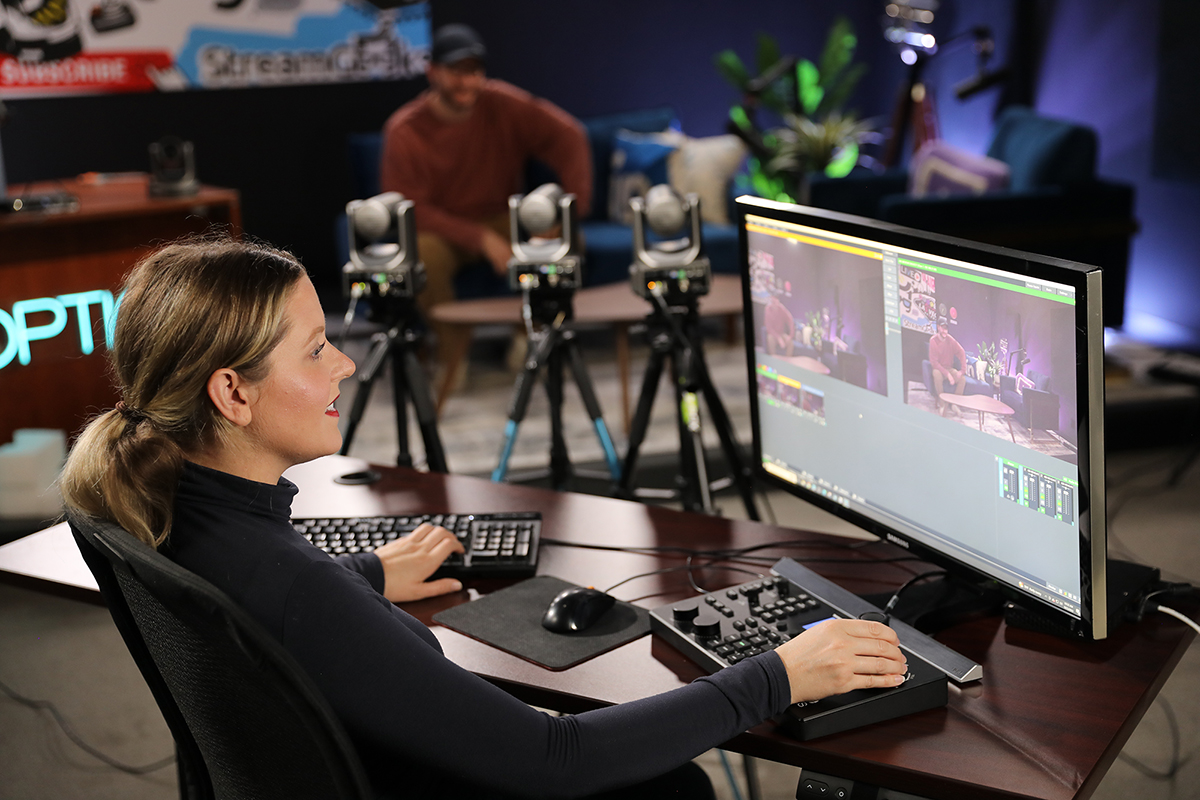

The Producer 4K Bundle
Capture every detail in ultra-high-definition 4K with 3 award-winning 20X Move 4K cameras. Each camera includes our most advanced auto-tracking capabilities and comes native with NDI® HX3 for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of professionals seeking the best.
Bundle Comparison
Producer SE Bundle
-
3 PT20X-SE-GY-G3 Cameras
-
1 PT-JOY-G4 Joystick
-
Up to 1080p @ 60 FPS Resolution
-
USB 2.0 (Type C)
-
PoE
-
NDI® HX2 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP OR Serial (must manually toggle between the two)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX2 support for 1080p video up to 60fps
**Native NDI® HX2 support for 1080p video up to 60fps
Producer 4K Bundle
-
3 PT20X-4K-GY-G3 Cameras
-
1 PT-SUPERJOY-G1 Joystick
-
Up to 4K @ 60 FPS Resolution
-
USB 2.0 (Type A)
-
PoE+
-
NDI® HX3 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX3 support for 4K video up to 60fps
**Native NDI® HX3 support for 4K video up to 60fps
Producer SE Specs

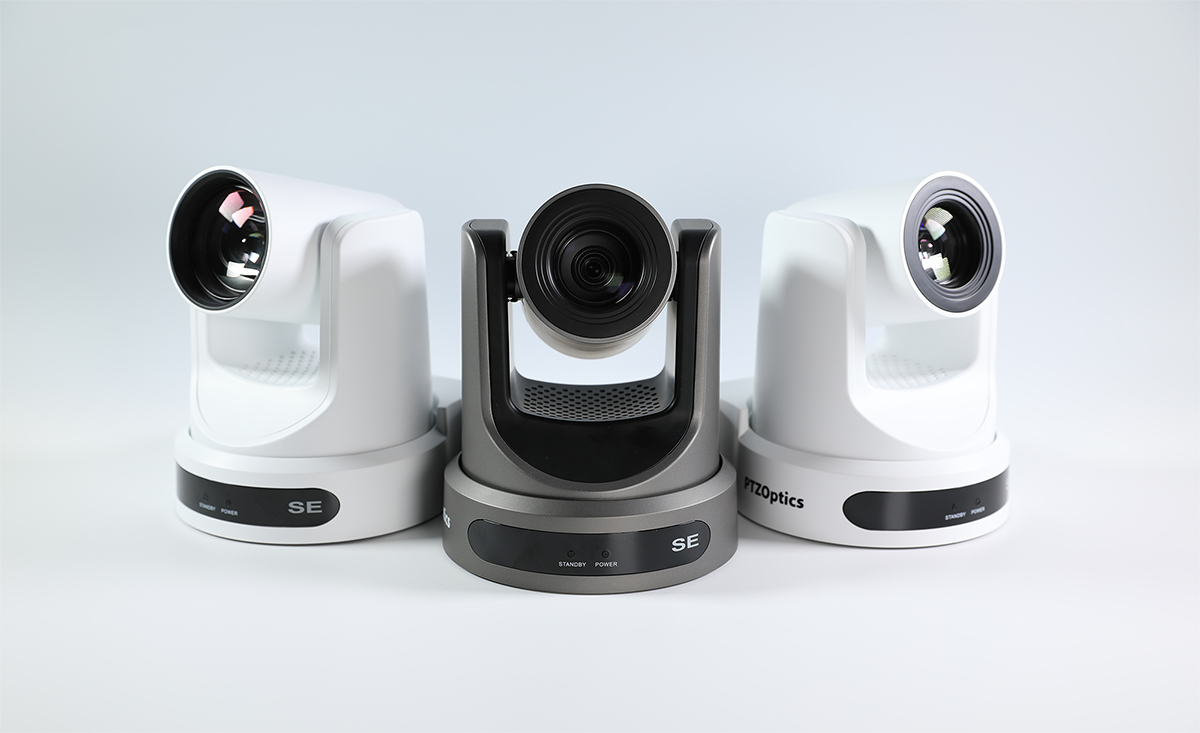

Move SE camera specs
| Image Sensor & Lens | Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 720p-60/50 | |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) | |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
|
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
| Backlight Compensation | Supported | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
|
| Pan/Tilt Movement | Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s | |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Image Flip, Mirror and Freeze | Supported | |
| Presets | 255 Presets | |
| Preset Accuracy | 0.1° | |
| Power Options | Power Supply | DC 12V / PoE (802.3af) |
| Input Power | 2A (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up) 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
|
| Weight | 3.2 lbs. (1.445 kg) | |
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard |
| 1x HDMI: version 1.3 | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C | ||
| 1x USB 3.0 Type C | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| IR | 4x IR Addresses, Max distance 30ft / 9m | |
| Power Jack | JEITA type (DC IN 12V) | |
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE (802.3af) |

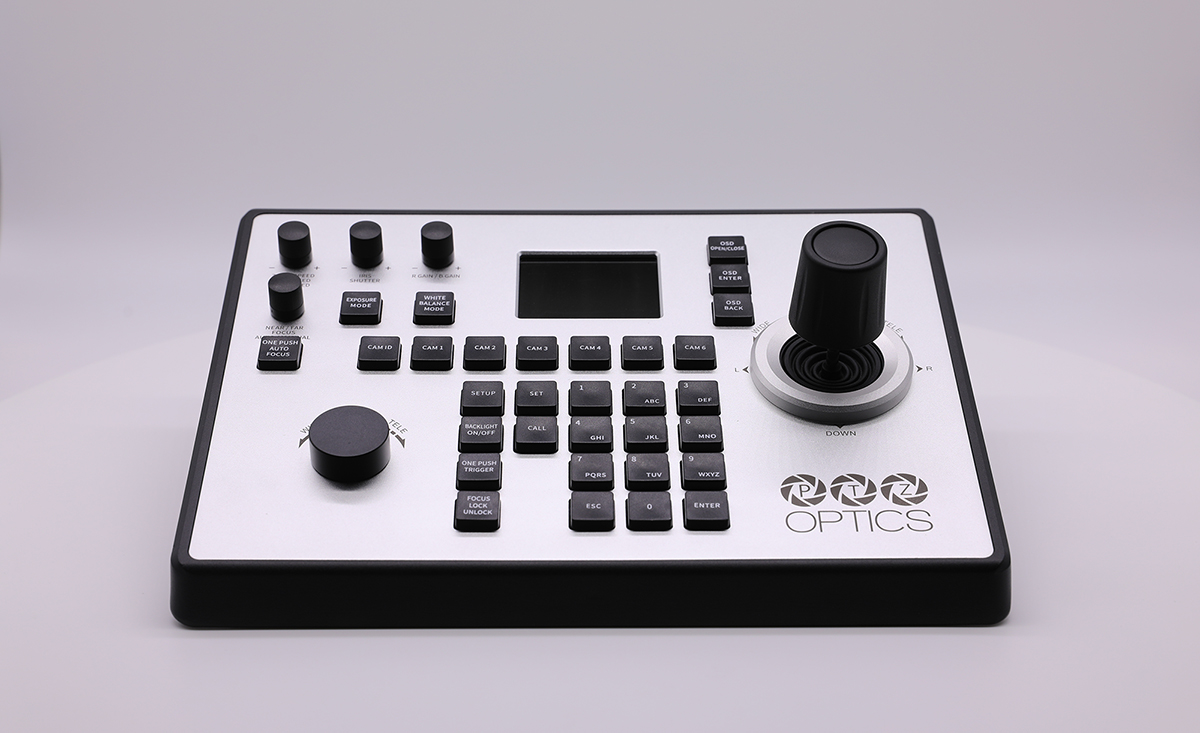

PT-JOY-G4 joystick specs
| Key Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Maximum Cameras | 253 cameras via network 7 cameras via serial VISCA | |
| Recommended Maximum Distance | RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m) | |
| Baud Rate | 1200 ~ 19200 bps | |
| Operation Specifications | Power | 6W (12VDC) / PoE (802.3af) |
| Working Temp | 14° F ~ 122° F (-10° C ~ +50° C) | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 4.45 lbs (2.02 kg) | |
| Dimensions (in.) | 11.938 W x 9.25 D x 4.25 H | |
| Dimensions (mm) | 303.23 W x 234.95 D x 107.95 H | |
| Other | Warranty | 2 Years |
Producer 4K Specs

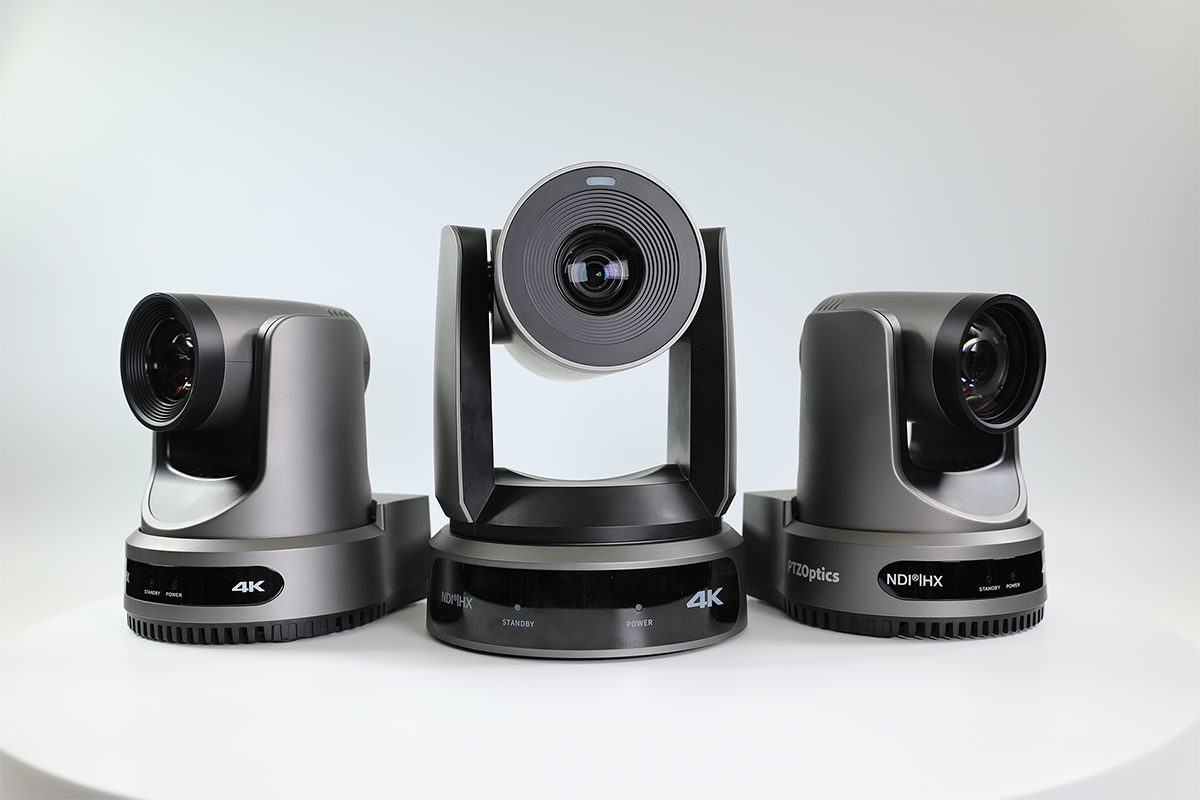

Move 4K camera specs
| Image Sensor & Lens | Video Sensor | 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M |
| Lens | 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19 Estimated 35mm Equivalencies are here. |
|
| Lens (35mm Equivalencies) | 12x: 25mm ~ 299mm, F1.8 ~ F2.6 20x: 31mm ~ 589mm, F1.58 ~ F3.95 30x: 32mm ~ 825mm, F1.61 ~ F5.19 |
|
| Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 | |
| SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94 | ||
| Digital Zoom | Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144) | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide) |
|
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Pan/Tilt Movement | Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Presets | 255 Presets | |
| Video Tracking | Supported | |
| Image Flip, Mirror and Freeze | Supported | |
| Power Options | Power Supply | DC 12V / PoE+ (802.3at) |
| Input Power | 18W (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm 30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm |
|
| Weight | 12x and 20x: 3.25 lbs (1.47 kg) 30x: 4.41 lbs (2.0 kg) |
|
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard |
| 1x HDMI: version 2.0 | ||
| 1x USB 2.0: type A | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at) | |
| Power Jack | JEITA type (DC IN 12V) |

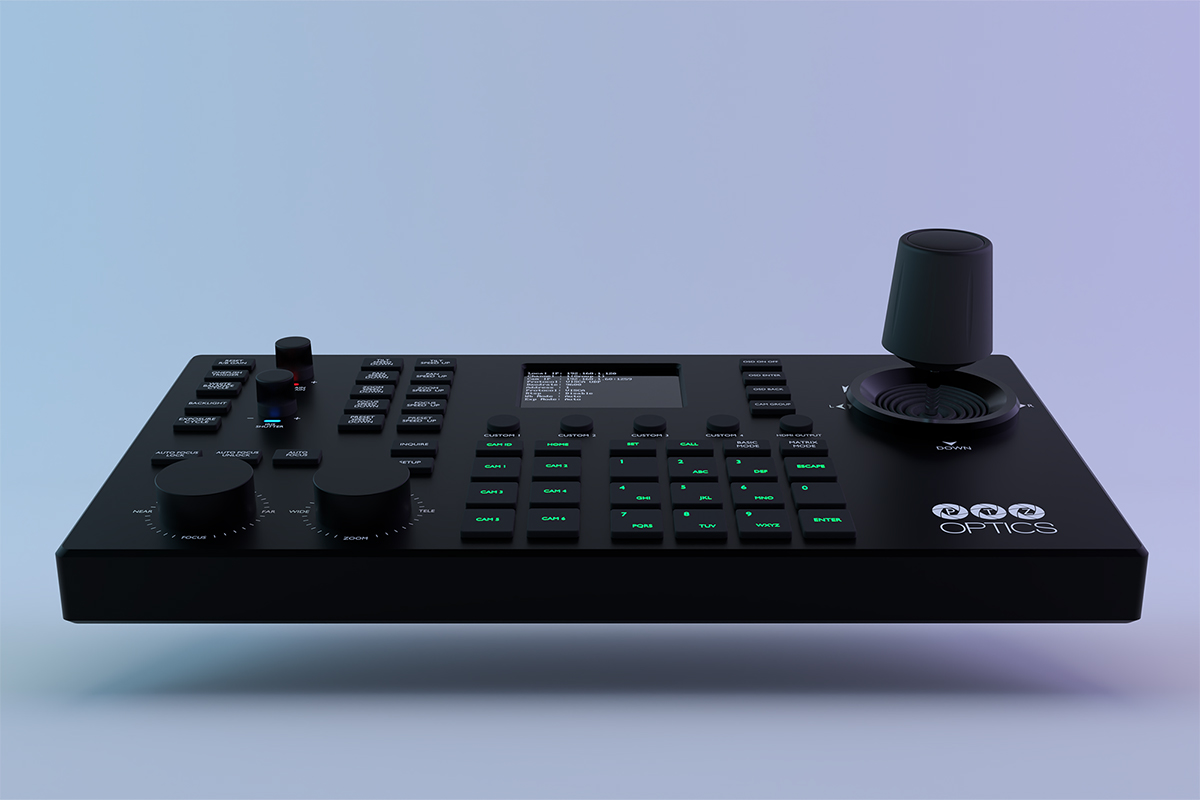

SuperJoy joystick specs
| Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI® | |
| Max Cameras | 28 cameras total (5 groups of 7 channels) | |
| Recommended Max Distance | RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m | |
| Baud rate | 1200 -19200 bps | |
| Operation Specifications | Power | 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.) |
| Working Temp | 14° F -122° F | -10° C +50°C | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 3.75 lbs | 1.70 kg | |
| Dimensions (in.) | 13.94 W x 7.05 D x 3.98 H | |
| Dimensions (mm.) | 370 W x 180 D x 101 H |
