PTZOptics

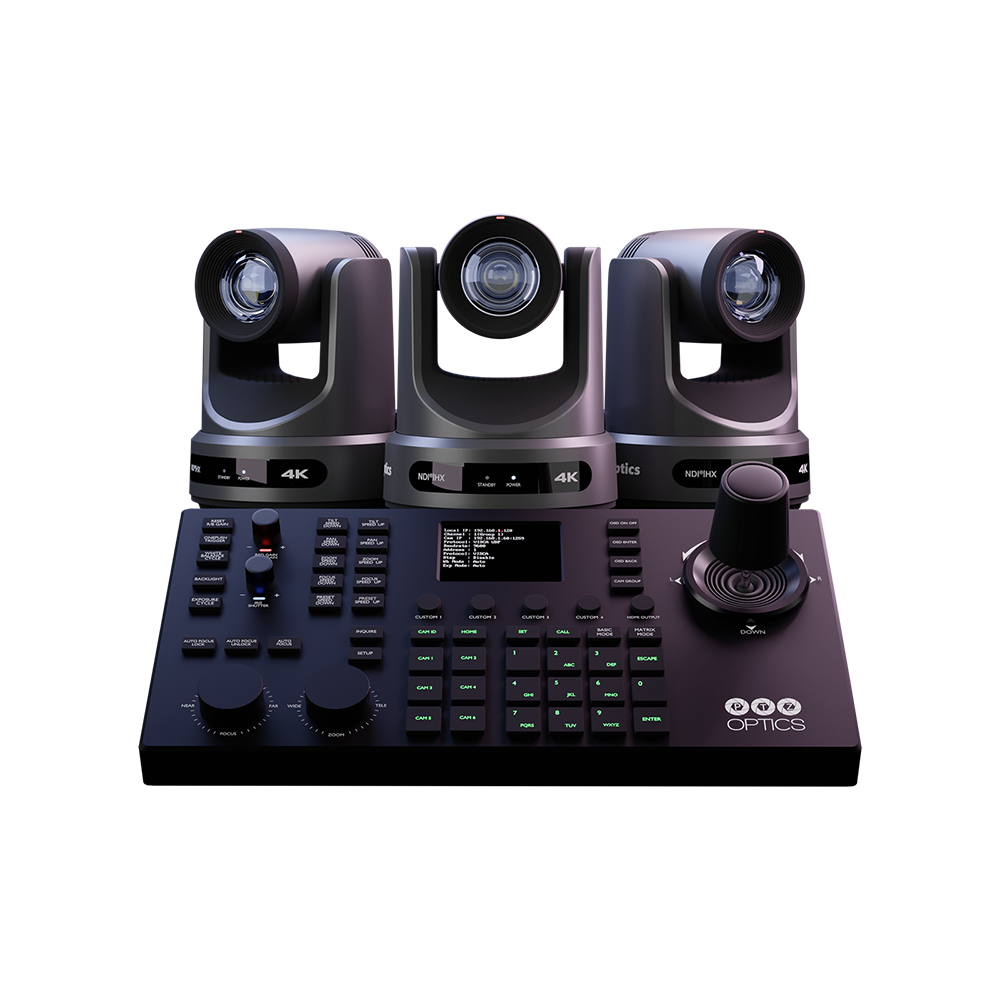

Producer 4K Bundle
NOW SHIPPING:
Ultimate Precision with the Producer 4K Bundle
What You Get:
Ramp Up to Dazzling 4K Clarity
If professional-level video is your goal, the Producer 4K Bundle is the way to go! Three Move 4K 20X PTZ cameras plus a SuperJoy joystick controller give you the stunning quality of 4K at 60fps, cinematic camera movements and expansive, flexible control.
Advanced Production in a Single Package
Capture every detail in ultra-high-definition 4K with 3 award-winning 20X Move 4K cameras. Each camera includes our most advanced auto-tracking capabilities and comes native with NDI® HX3 for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of professionals seeking the best.
Designed with the Future in Mind
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking to ensure your subject is always in the frame. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolution equipment. Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or use the SuperJoy joystick controller. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Capabilities that Go Beyond Expectations
The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light. Experience a more intelligent video production workflow with the Move 4K’s updated web user interface. The Move cameras offer built-in auto-tracking capabilities — no need to run software on another computer. Plus, PTZOptics’ one-click firmware updates from the web UI make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves.
Streamlined, Real-Time Production
The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. The SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. Set up your SuperJoy controller anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.
- Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required
- Control white balance, red and blue gain, shutter speed and more!
Custom Control Across a Variety of Cameras and Devices
The PTZOptics SuperJoy is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.
- Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, Lumens, Marshall, NewTek, and Panasonic (newer Panasonic cameras that support Sony VISCA will work)
- If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
- Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to seven cameras each, as well as a fifth group of up to 225 cameras
PTZOptics CMP: Multiple Cameras, One Simple Solution
No matter how many cameras are deployed, the new PTZOptics Camera Management Platform, included in both Producer Bundles, allows users to manage multiple cameras at once. In-app tools like color correction can help easily change the look of one or multiple cameras on the fly. The PTZOptics Camera Management Platform is compatible with any desktop operating system—Windows, macOS, and Linux—and fits easily into any workflow using OBS, vMix, and other video production software.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our cameras come with a 5-year limited parts and labor warranty, and our joysticks come with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Why Producer
Bundles?
- Easy Setup
- PoE-Ready
- 1080p or 4K Resolution
- Seamless Integration
- Lifetime Support
- Best-in-Class Warranties
Bundle Comparison
Producer 4K Bundle
-
3 PT20X-4K-GY-G3 Cameras
-
1 PT-SUPERJOY-G1 Joystick
-
Up to 4K @ 60 FPS Resolution
-
USB 2.0 (Type A)
-
PoE+
-
NDI® HX3 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX3 support for 4K video up to 60fps
**Native NDI® HX3 support for 4K video up to 60fps
Producer SE Bundle
-
3 PT20X-SE-GY-G3 Cameras
-
1 PT-JOY-G4 Joystick
-
Up to 1080p @ 60 FPS Resolution
-
USB 2.0 (Type C)
-
PoE
-
NDI® HX2 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP OR Serial (must manually toggle between the two)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX2 support for 1080p video up to 60fps
**Native NDI® HX2 support for 1080p video up to 60fps
AV Workflows
PTZOptics Producer Bundles can streamline production setups across a variety of settings:
Education:
Click to enlarge!
House of Worship:
Click to enlarge!
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
Producer 4K Specs
Move 4K camera specs
| Image Sensor & Lens | Video Sensor | 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M |
| Lens | 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19 Estimated 35mm Equivalencies are here. |
|
| Lens (35mm Equivalencies) | 12x: 25mm ~ 299mm, F1.8 ~ F2.6 20x: 31mm ~ 589mm, F1.58 ~ F3.95 30x: 32mm ~ 825mm, F1.61 ~ F5.19 |
|
| Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 | |
| SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94 | ||
| Digital Zoom | Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144) | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide) |
|
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Pan/Tilt Movement | Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Presets | 255 Presets | |
| Video Tracking | Supported | |
| Image Flip, Mirror and Freeze | Supported | |
| Power Options | Power Supply | DC 12V / PoE+ (802.3at) |
| Input Power | 18W (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm 30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm |
|
| Weight | 12x and 20x: 3.25 lbs (1.47 kg) 30x: 4.41 lbs (2.0 kg) |
|
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard |
| 1x HDMI: version 2.0 | ||
| 1x USB 2.0: type A | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at) | |
| Power Jack | JEITA type (DC IN 12V) |
SuperJoy joystick specs
| Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI® | |
| Max Cameras | 28 cameras total (5 groups of 7 channels) | |
| Recommended Max Distance | RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m | |
| Baud rate | 1200 -19200 bps | |
| Operation Specifications | Power | 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.) |
| Working Temp | 14° F -122° F | -10° C +50°C | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 3.75 lbs | 1.70 kg | |
| Dimensions (in.) | 13.94 W x 7.05 D x 3.98 H | |
| Dimensions (mm.) | 370 W x 180 D x 101 H |
Producer 4K Specs
| Image Sensor & Lens | Video Sensor | 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M |
| Lens | 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19 Estimated 35mm Equivalencies are here. |
|
| Lens (35mm Equivalencies) | 12x: 25mm ~ 299mm, F1.8 ~ F2.6 20x: 31mm ~ 589mm, F1.58 ~ F3.95 30x: 32mm ~ 825mm, F1.61 ~ F5.19 |
|
| Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 | |
| SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94 | ||
| Digital Zoom | Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144) | |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide) |
|
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Pan/Tilt Movement | Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 | |
| Tilt Speed | 1.7° ~ 69.9° | |
| Presets | 255 Presets | |
| Video Tracking | Supported | |
| Image Flip, Mirror and Freeze | Supported | |
| Power Options | Power Supply | DC 12V / PoE+ (802.3at) |
| Input Power | 18W (Max) | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | White and Gray | |
| Dimensions (W x D x H) | 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm 30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm |
|
| Weight | 12x and 20x: 3.25 lbs (1.47 kg) 30x: 4.41 lbs (2.0 kg) |
|
| Working Environment | Indoor | |
| Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard |
| 1x HDMI: version 2.0 | ||
| 1x USB 2.0: type A | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at) | |
| Power Jack | JEITA type (DC IN 12V) |
| Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI® | |
| Max Cameras | 28 cameras total (5 groups of 7 channels) | |
| Recommended Max Distance | RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m | |
| Baud rate | 1200 -19200 bps | |
| Operation Specifications | Power | 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.) |
| Working Temp | 14° F -122° F | -10° C +50°C | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 3.75 lbs | 1.70 kg | |
| Dimensions (in.) | 13.94 W x 7.05 D x 3.98 H | |
| Dimensions (mm.) | 370 W x 180 D x 101 H |
Producer 4K Bundle Documentation
Save $1023 (14%)!
| SKU | MSRP | Documents and Info |
|---|---|---|
| Camera(s): PT20X-4K-GY-G3 | $2199 | Data Sheet | Manual | CAD Line Drawing |
| IP & Serial Joystick: PT-SUPERJOY-G1 | $989 | Data Sheet | Manual | CAD Line Drawing |
| Bundle: PT20X4K-PRODUCER-SJOY | $6545 | Includes 3x Move 4K 20X Cameras and 1x SuperJoy Controller |
The PTZOptics Producer Bundles are designed with precision, choice, and value in mind. Whether you’re seeking 1080p excellence with the Producer SE or aspiring for 4K brilliance with the Producer 4K, we’ve got you covered. Every bundle guarantees captivating close-ups with the 20X lens, paired with controllers designed for effortless production. Your vision deserves the best tools – make your choice today.
The Move 4K comes with a 5 year limited parts and labor warranty, and the SuperJoy comes with a 2 year limited parts and labor warranty.
