PTZOptics
Studio Series
NOW SHIPPING:
PTZOptics Studio SE and Studio 4K, with built-in mic and tally light
Available in 12x and 20x
Fixed Cameras, Superior Video
Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio Series provides sharp 1080p or crystal-clear 4K resolution, 12X or 20X zoom and the convenience of our easy-to-use online platform, Hive Studio, providing future-ready connectivity and control from anywhere.
Connect, Point, Produce!
The Studio Series features SDI, HDMI, USB, and IP output and comes native with NDI®
HX3, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in Hive-Linked connectivity links to Hive Studio automatically!
Power, Endurance, and Performance
The Studio SE is your perfect entry into the world of videography, offering powerful zoom capabilities, reliable performance, and scalability. Need to upgrade to the power of 4K resolution? Consider the Studio 4K. With either model, capture a head-and-shoulders shot of your subject from over 100 feet away with zoom strengths of 12X or 20X, perfect for medium or large spaces. Designed for utility, connectivity, and endurance, a camera from the Studio Series will be your new video system workhorse.
A Multitude of Applications
A Studio Series camera is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with additional fixed-camera options that complement your PTZ cameras. The Studio Series’ high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as fixed cameras the Studio Series is courtroom friendly. Looking for a mix of fixed and PTZ cameras for your project? Check out the PTZOptics Producer, Action, and Flex bundles.
Future-Friendly Performance
Studio Series cameras are Hive-Linked (now in beta!) and equipped with cutting-edge onboard control technology, providing the perfect solution for evolving production workflows. With just a few clicks, you’ll have centralized management of all your cameras from anywhere with just a web connection, making controlling and configuring multiple cameras from a single interface easier.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, and auto-tracking (zoom-only for the Studio 4K)
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS
- Camera configuration and management tools
- Support and testing utilities
- And more!
View a full list of our free software here.

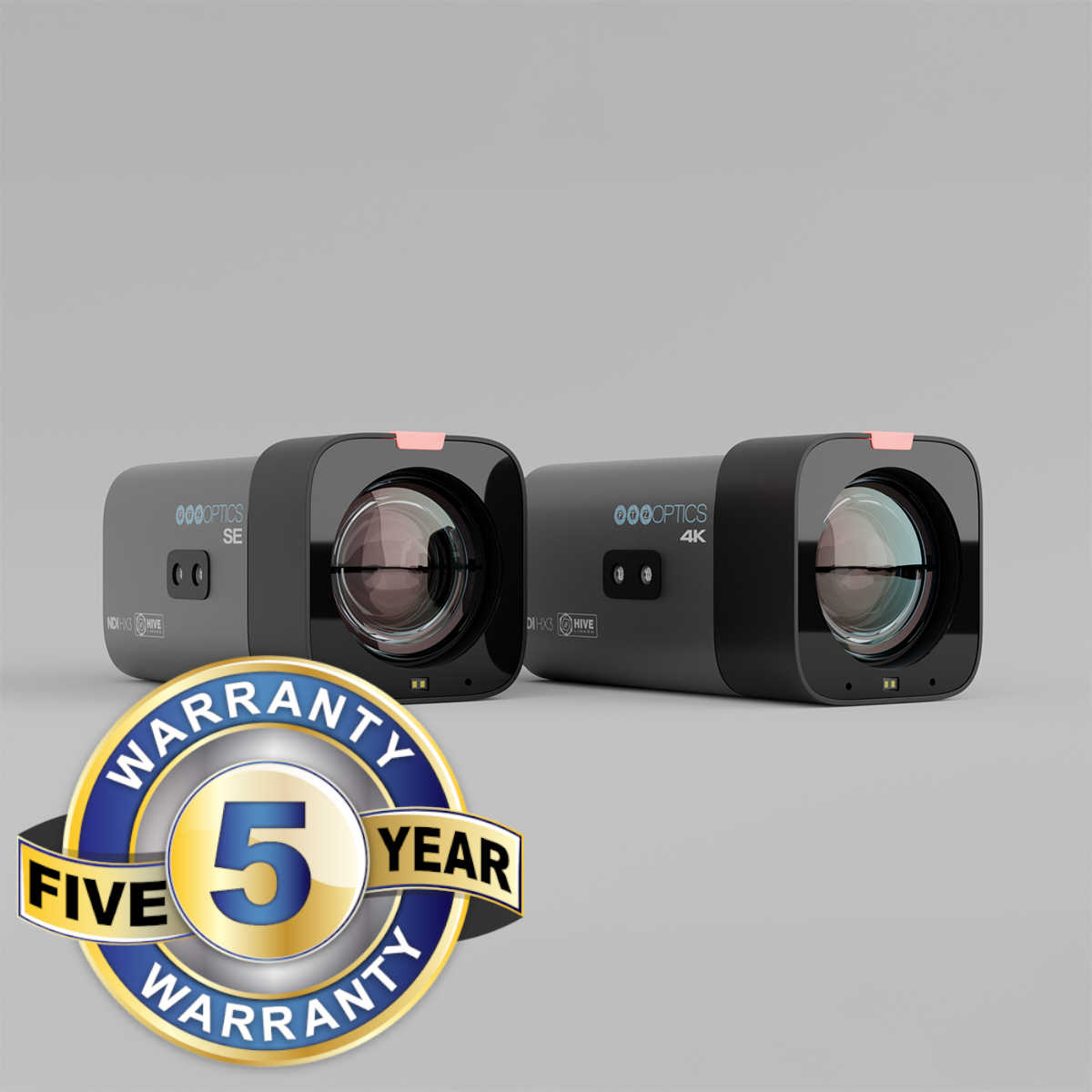

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Studio 4K and Studio SE come with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our monthly live shows
Features and
benefits
- 1080p (Studio SE) or 4K (Studio 4K) 60fps Resolution
- 12x or 20x Optical Zoom
- Compact & Modern Fixed Design
- Hive-Linked for One-Click Integration
- SDI, HDMI, USB, and IP Outputs with NDI® HX3
Camera Comparison

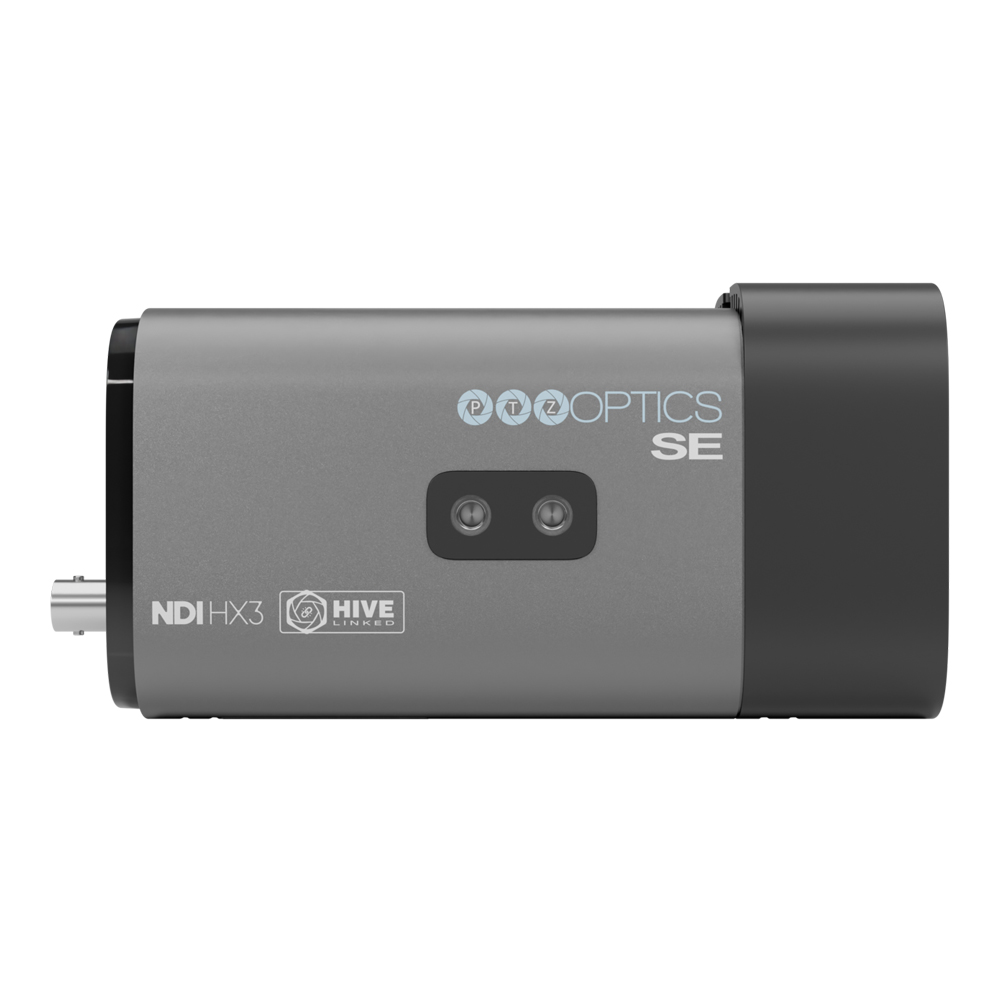

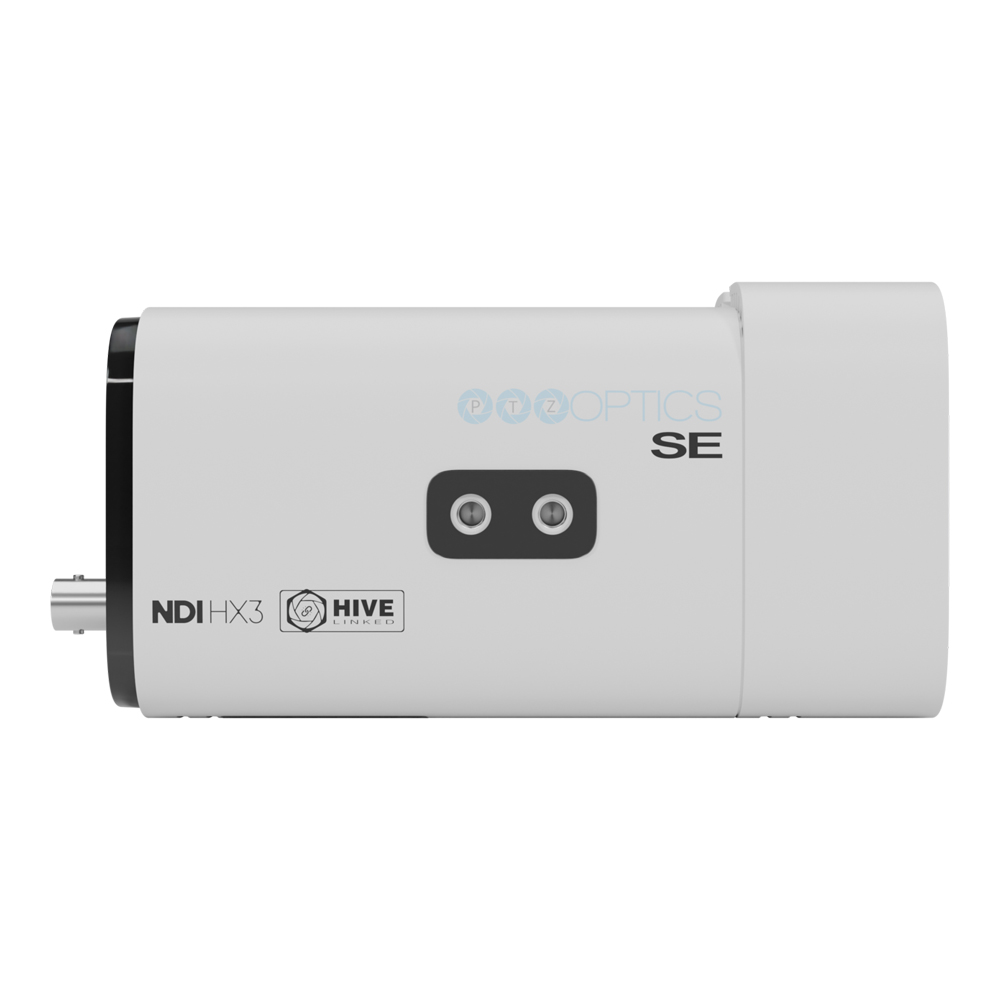

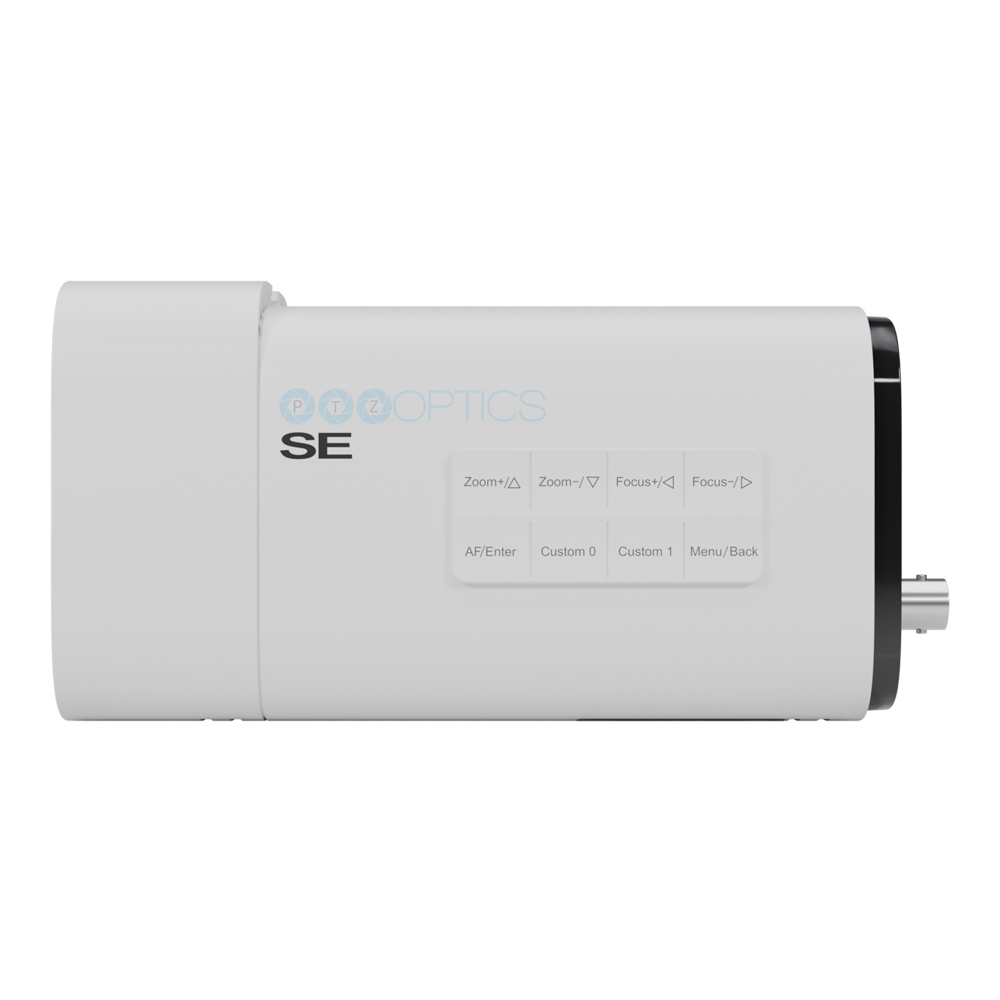

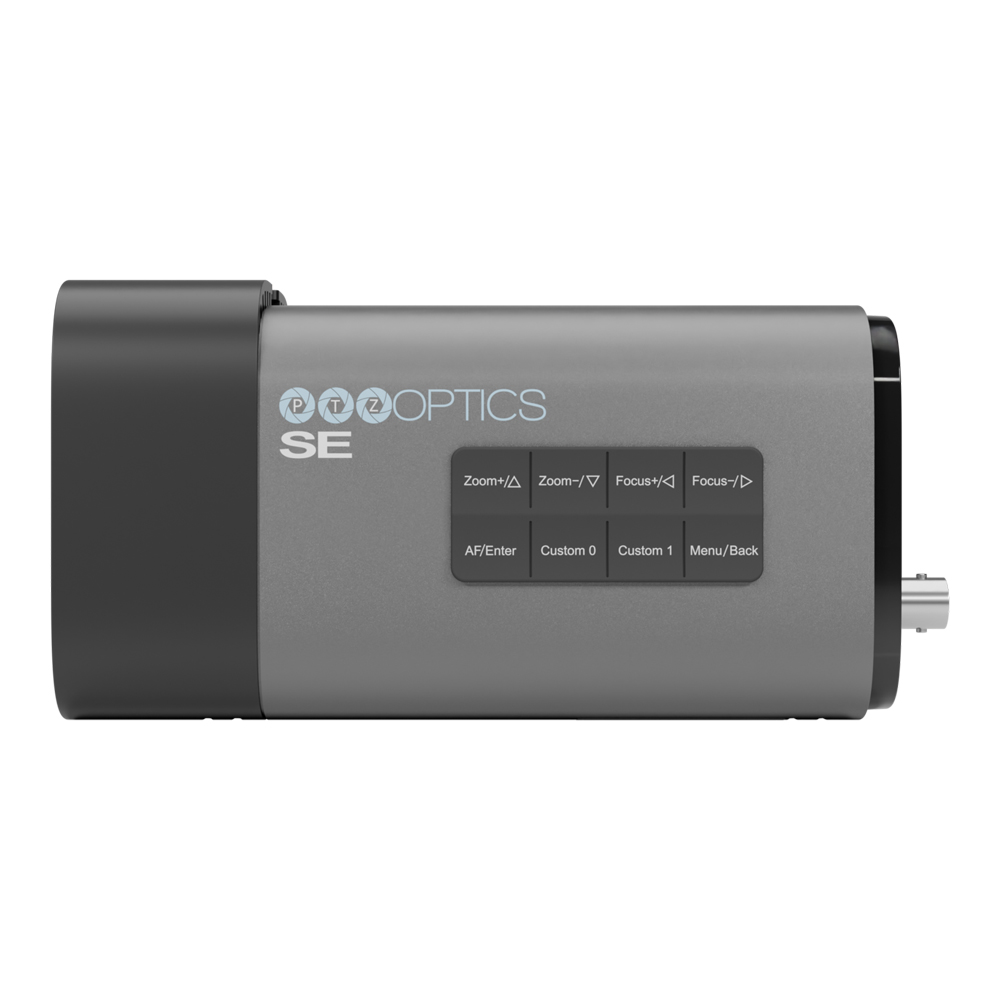

PTZOptics Studio SE
-
Starting at $1,049 MSRP
-
12X or 20X Optical Zoom/16x Digital Zoom
-
72.5° Field of View
-
5 Year Warranty
-
1080p @ 60fps Resolution
-
NDI® HX3 Native
-
USB 3.0 (Type C)
-
USB 2.0 (Type A, power only)
-
HDMI
-
PoE
-
SRT
-
RTSP/RTMP(S)

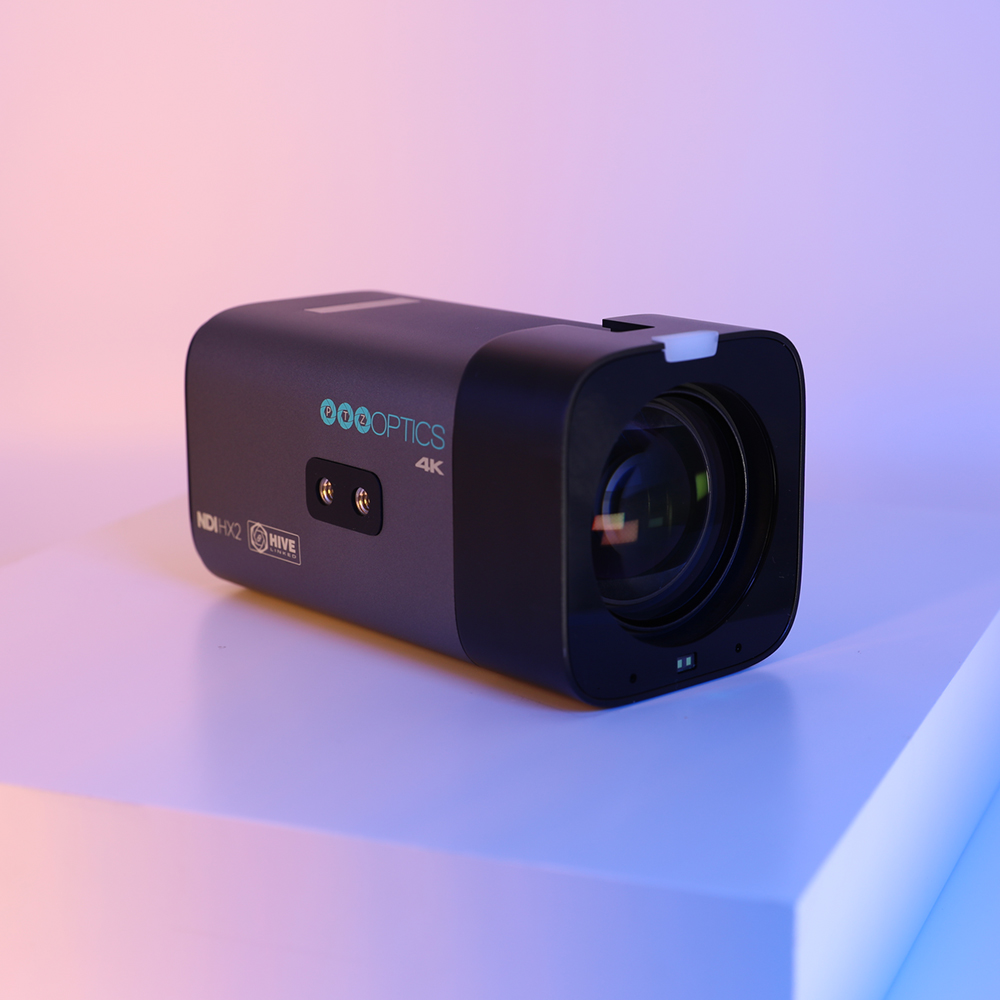

PTZOptics Studio 4K
-
Starting at $1,319 MSRP
-
12x or 20x Optical Zoom/16x Digital Zoom
-
72.5° (12x) or 60.7° (20x) Field of View
-
5 Year Warranty
-
4K @ 60fps Resolution
-
NDI® HX3 Native
-
USB 3.0 (Type C)
-
USB 2.0 (Type A, power only)
-
HDMI
-
PoE+
-
SRT
-
RTSP/RTMP(S)
Hive-Linked (Now in Beta!)
The Studio SE and 4K Connect Instantly to Hive, Right Out of the Box
Easily control your Studio Series camera from anywhere in the world with just one simple link. PTZOptics Hive is the keystone of the PTZOptics ecosystem, offering a centralized platform that enhances your PTZOptics cameras. After a one-time link to the Hive, users can control their cameras anytime, anywhere. Hive-Linked cameras can be connected anytime they are plugged into a network – no application or additional hardware required. Hive-Linked functionality is now in beta!
Click to enlarge!
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.Â
Proudly Partnering With Distributors Around the World!
North America
International
...And More Worldwide!
Field-of-View Calculator
Enter the distance.
Show output in:
Calculate
The Studio 4K and Studio SE are both compliant with NDAA 2019, Section 889. These product do not contain components from any of the companies highlighted in NDAA 2019, Section 889.
| Camera & Lens | Image Sensor & Lens | 12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels) |
| Digital Zoom | 16x | |
| Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25,
1920x1080p-60/59.94/50/30/29.97/25,
1920x1080i-60/59.94/50, 1280x720p-60/59.94 SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50 |
|
| Optical Lens Focal Length (Zoom) | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6 |
|
| Optical Lens Field of View, Horizontal & Vertical | 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8° 20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1° |
|
| Display Field of View | 12x: 80.2° 20x: 67.8° |
|
| Min Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Presets | 255 Presets | |
| Presets Accuracy | 0.1° | |
| Image Flip | Supported | |
| Image Mirror | Supported | |
| Image Freeze | Supported | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | Gray or White | |
| Dimensions (L x W x H) | 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H | |
| Weight | 12x: 1.5 lbs | 0.68kg 20x: 1.4 lbs | 0.64kg |
|
| Working Environment | Indoor | |
| Humidity Range | 10% ~ 80% | |
| Operating Temperature | 14°F ~ 104°F (-10°C ~ 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40 ~ 60°C) | |
| Connections | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI®
HX3 enabled 1x HDMI: Version 2.0 1x USB: 3.0 Type C 1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M |
| Audio Interface | 1x 3.5mm Line level input 1x 3.5mm Line level output |
|
| Video Formats | USB:
RTSP/NDI® HX3 only:
|
|
| Compression Standards | H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only) | |
| UVC Version Supported | UVC 1.1 ~ 1.5 | |
| Supported Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc. | |
| IR | 4x IR Addresses, Max distance 30ft / 9m | |
| Power Supply | JEITA type (DC IN 12V) / PoE+ (802.3at) | |
| Current Consumption | Max 2A | |
| Power Consumption | Max 18W |
| Camera & Lens | Image Sensor & Lens | 12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels) |
| Digital Zoom | 16x | |
| Resolution and Frame Rate | HDMI:
1920x1080p-60/59.94/50/30/29.97/25,
1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97 SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94/50/30/29.97 |
|
| Optical Lens Focal Length (Zoom) | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6 |
|
| Optical Lens Field of View, Horizontal & Vertical | 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8° 20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1° |
|
| Display Field of View | 12x: 80.2° 20x: 67.8° |
|
| Min Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| Presets | 255 Presets | |
| Presets Accuracy | 0.1° | |
| Image Flip | Supported | |
| Image Mirror | Supported | |
| Image Freeze | Supported | |
| Physical Specifications | Material | Aluminum, Plastic |
| Color | Gray or White | |
| Dimensions (L x W x H) | 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H | |
| Weight | 12x: 1.5 lbs | 0.68kg 20x: 1.4 lbs | 0.64kg |
|
| Working Environment | Indoor | |
| Humidity Range | 10% ~ 80% | |
| Operating Temperature | 14°F ~ 104°F (-10°C ~ 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40 ~ 60°C) | |
| Connections | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI®
HX3 enabled 1x HDMI: Version 2.0 1x USB: 3.0 Type C 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M |
| Audio Interface | 1x 3.5mm Line level input 1x 3.5mm Line level output |
|
| Video Formats | USB:
RTSP/NDI® HX3 only:
|
|
| Compression Standards | H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only) | |
| UVC Version Supported | UVC 1.1 | |
| Supported Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc. | |
| IR | 4x IR Addresses, Max distance 30ft / 9m | |
| Power Supply | JEITA type (DC IN 12V) / PoE (802.3at) | |
| Current Consumption | Max 2A | |
| Power Consumption | Max 18W |
Studio Series Documentation
| SKU | MAP | Documents |
|---|---|---|
| PT12X-STUDIO-4K-xx-G3 | $1,319 | Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders |
| PT20X-STUDIO-4K-xx-G3 | $1,489 | Data Sheet | Manual | CAD Line Drawing | 3D CAD Renders |
| PT12X-STUDIO-SE-xx-G3 | $1,049 | Data Sheet | Manual |
| PT20X-STUDIO-4K-xx-G3 | $1,269 | Data Sheet | Manual |
Note: “xx” stands for the color. Use “WH” for white and “GY” for black/gray.
Get ready for the PTZOptics Studio Series, a new collection of fixed cameras offering stunning 1080p or 4K 60fps resolution with 12X or 20X optical zoom options, all in a compact form factor. The Studio SE and Studio 4K are Hive-Linked, allowing for one-click integration with Hive Studio for instant cloud-based camera control over multiple video output options. By adding the Studio Series to your setup, you’re investing in a future-proof solution that will consistently deliver reliability, versatility, and top-tier performance for years to come.
The Studio SE and Studio 4K have a built-in microphone and come with an IR remote (batteries included), a 12V 2A international power supply, lens cap, and a USB A-C cable.
Want more control? Our new Web UI is easy to access from your browser and allows users to fine-tune their settings to fit their production needs.
