MultiCamera Systems

Future Proof Your Live Streaming Setup


Where to Buy  Watch the Video




A System Built for Streaming & Recording

Finally, a complete PTZ live streaming system built for your favorite video production software. Easily use with Wirecast, vMix, OBS, xSplit, Livestream Studio and more to record powerful videos and/or live stream to the internet.

Get ready to deploy a PTZ camera system designed for your exact needs. This system is designed around a core PC for video production. With three (3) HD video outputs you can use one monitor for your favorite video production software, another for a multiview or full-screen output and another for presentation software such as PowerPoint, Propresenter, MediaShout or EasyWorship.







Easily setup a PTZ camera for your church or organization with a system that volunteers (or professionals) can easily operate. Review your system options and consider setting up a PoE (Power Over Network) switch so that you can provide each camera power over a single Ethernet cable. This system leverages the very reliable SDI video cabling for maximum video quality. Each cable supports locking connectors to ensure a reliable setup for each broadcast.

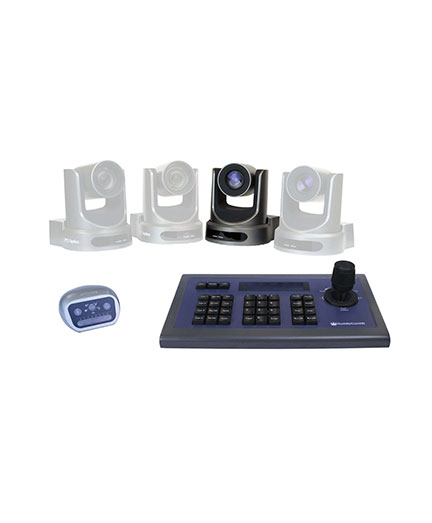

Meet the MultiCamera Kit


The PTZ Producer Kits are built to give anyone (including volunteers) an easy camera control system to operate with multiple PTZ cameras. This allows small teams to do BIG things.




Using a PTZ camera system designed for video production will reduce the need for camera operators and increase your production team’s capabilities. Using high definition PTZ cameras in this system provides small teams to more with less. Forget about over the shoulder cameras, with massive tripods and platforms. This system includes a simple PTZ camera controller with all of the connection cabling required for a complete system.

MultiCamera Kit Comparison Chart

SKU Camera Connectivity Joystick Cabling
PT-MULTICAMERA-xxKIT-USB-NOPC SDI to USB converter Included 100′ VISCA & 100′ SDI
PT-MULTICAMERA-xxKIT-PCIE-NOPC 3G-SDI to PCIe Included 100′ VISCA & 100′ SDI
PT-MULTICAMERA-xxKIT-TB3-NOPC 3G-SDI to External PCIe via Thunderbolt 3 Included 100′ VISCA & 100′ SDI
PT-PRODUCER-ADDxxX SDI to USB converter 100′ VISCA Extender & 100′ SDI
PT-PRODUCERPLUS-ADDxxX 3G-SDI to PCIe 100′ VISCA Extender & 100′ SDI

*xx represents the camera selected. 12X would be a 12X-SDI-G2-GY (gray). 20X would be a 20X-SDI-G2-GY (gray). 30X would be a 30X-SDI-G2-GY (gray).

PC Recommendation

Lower-End PC Recommended Parts Higher-End PC Recommended Parts
Motherboard Asus Prime X570 Pro Gigabyte Z390 AORUS PRO Intel Z390 or Z370 motherboard
Graphics Card NVIDIA GeForce GTX 1060 NVIDIA GeForce GTX 1660 TI
Case Corsair Case Series 100R Mid Tower ATX SilverStone Redline RL05 Case
SDD Samsung 850 EVO 500GB Samsung 960 EVO NVMe M.2 1TB
PSU 500W ATX PSU 600W ATX PSU
Capture Card Magewell Capture Card (Included in MultiCamera-USB Kit & Producer-Add On Kit) External Magewell Quad SDI Capture Card (Included in MultiCamera-TB3 Kit)
Internal Magewell Quad SDI Capture Card (Included in MultiCamera-PCIE Kit)
CPU AMDRyzen 5 3600X w/ Wraith Spire (6 cores / 12 threads 3.8 GHz) Intel Core i7 9700K 3.6GHz+ Cooler Master MasterLiquid 120 Liquid CPU Cooler
RAM 16GB (2x8GB) DDR4 32GB (2x16GB) DDR4
Operating System Windows 10 Windows 10
Camera Inputs 4 SDI Cameras 8 SDI Cameras
Streaming Up to 1080p 20Mbps
NDI 4 NDI sources up to HD 1080p
Recording Up to 1080p 75Mbps MP4






Easy System Setup

Used by hundreds of churches, small businesses and live streamers around the world. Loved for it’s practical design and easy setup. Check out a few of our case studies below.



Share Your Vision


Complete Live Streaming System

Where to Buy

SKU MSRP Documents
PT-MULTICAMERA-xxXKIT-USB-NOPC $3,003 – $3,223 Data Sheet | User Manual
PT-MULTICAMERA-xxXKIT-PCIE-NOPC $3,663 – $3,883 Data Sheet | User Manual
PT-MULTICAMERA-xxXKIT-TB3-NOPC $4,213 – $4,433 Data Sheet | User Manual

*MultiCamera Kit MSRP costs range from PT12X-SDI-GY-G2, PT20X-SDI-GY-G2, & PT30X-SDI-GY-G2 cameras.

SKU MSRP Description
PT-PRODUCER-ADD12X* $2,371 Add a 12X + 100′ of cabling**
PT-PRODUCER-ADD20X* $2,481 Add a 20X + 100′ of cabling**
PT-PRODUCER-ADD30X* $2,636 Add a 30X + 100′ of cabling**
PT-PRODUCER-UPGRADE*** $1,759 4-port SDI enclosure box


*12X/20X/30X in each SKU designated the camera optical zoom included with the base system.
**100′ of 3G SDI and RS-232 cabling is provided for each camera. The 3G SDI cabling is provided for video and the RS-232 cabling is provided for serial joystick camera control.
***This is the 4-port SDI enclosure box that connects to the system via thunderbolt. This is included in all producer plus base systems. This is only needed for producer base systems to upgrade.
Please note that each SKU includes one (1) camera.

The all-new MultiCamera Kits systems from PTZOptics are complete turn-key live streaming systems built around a custom PC. We do not include the custom PC in the kit, but do include the minimum requirements and suggested parts in the documentation. These systems available with 12X, 20X, and even 30X optical zoom 3G-SDI cameras, finally make television-quality video production affordable. With hundreds of potential video angles made possible with PTZ cameras and the included 3D PTZ Joystick, this system will make any venue your next live streaming destination.

High Definition
3 Year Camera Warranty
HD 1080p
Power Over Ethernet
H.264 & H.265
Windows 10 Platform

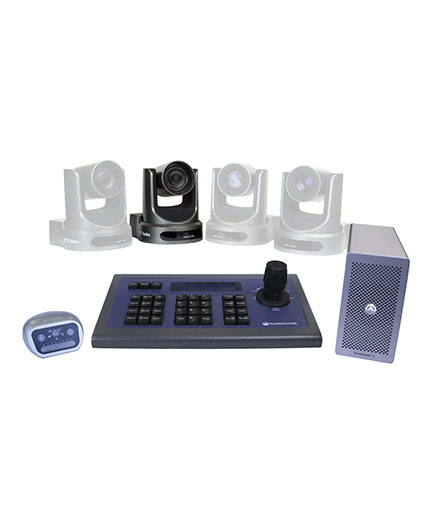

Quad SDI PortsExternal Quad SDI Enclosure

Each TB3 kit includes a Magewell Quad SDI PCIe card, and an external PCIe enclosure with a Thunderbolt3 connection to the PC.

Magewell Frame Grabber3G-SDI to USB 3.0 Frame Grabber

Each USB kit includes a Magewell SDI to USB converter and 100′ of ultra reliable plenum-rated 3G-SDI cabling. Easily connect the SDI cable to the converter for an easy PC connection


Built Your Own PCBuilt Your Own PC

We offer two (2) PC recommendations for the MultiCamera Kit. The “Low End” and the “High End”, which can be seen above and in the User Manual.

VISCA ControlIncluded Joystick

Control multiple cameras and presets for advanced video productions with the included 3D Joystick Controller and cabling. (100′ of cabling is provided. Daisy-chaining cameras is supported).


Shure MViAudio Converter

The Shure MVi-LTG is ready to convert any professional audio to USB for your live stream. The all metal design is rugged for mobile productions. You can easily make changes to the DSP (Digital Signal Processing) and volume controls for perfect audio.

NewTek NDI

The NewTek Connect Pro App will be included with every PTZ Producer Kit allowing users to make their cameras NDI™ ready. Learn more about the NewTek Connect Pro App here.


Use with your favorite softwareUse with your favorite software

Ready to use with OBS, xSplit, Wirecast, vMix or the NewTek Connect Pro App. Always use the latest software available for live streaming and video production.

3 Year Warranty3 Year Warranty

PTZOptics offers the industries best 3 Year Warranty on every camera (For other devices see data sheet). Repairs are handled in our USA repair center located outside Philadelphia, PA.


Mix & Match CamerasUse any Camera

Mix and Match your preferred cameras with the MultiCamera kit. Use any combination of 12X or 20X SDI cameras to a maximum of 4 through the External PCIe enclosure.

Power Over EthernetPower Over Ethernet

PTZOptics 3G-SDI camera models also include PoE (Power Over Ethernet) which can be used for power, control and video/audio streaming.
