PTZOptics
Action Bundle
NOW SHIPPING:
Capture Every Play with the Action Bundle
-
Overview
-
Tech Specs
-
Documentation

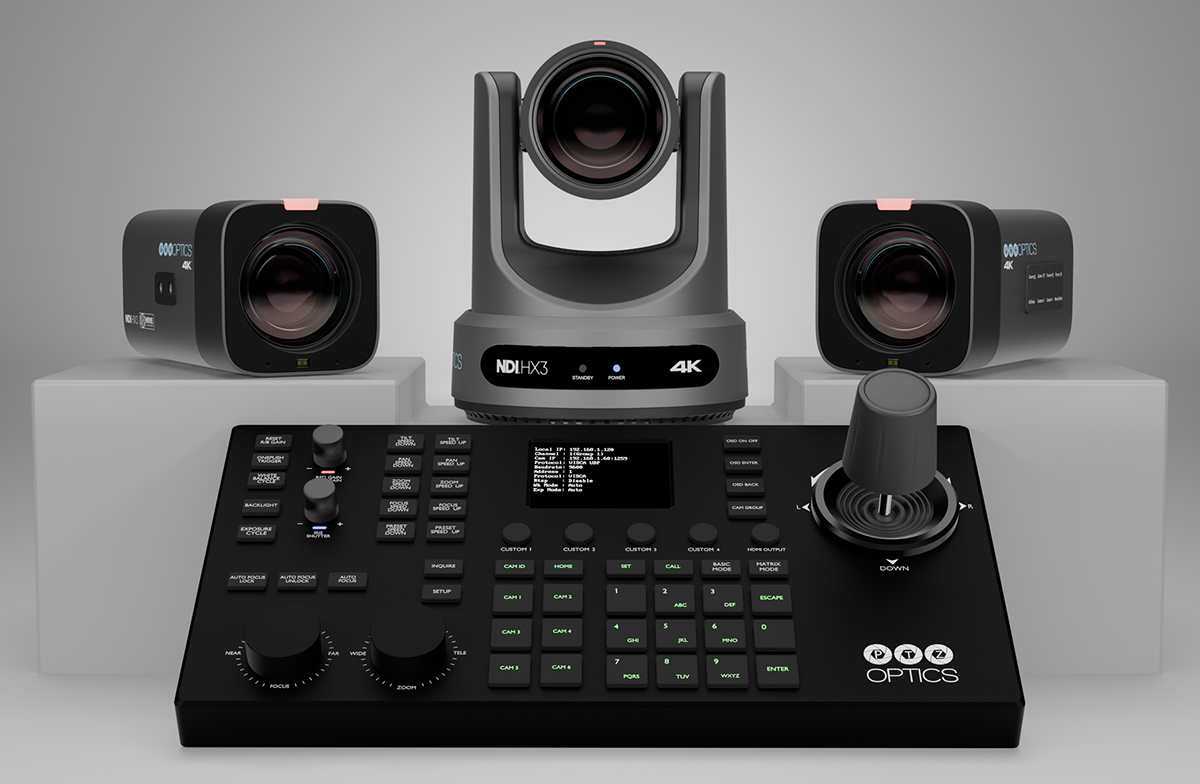

What You Get:

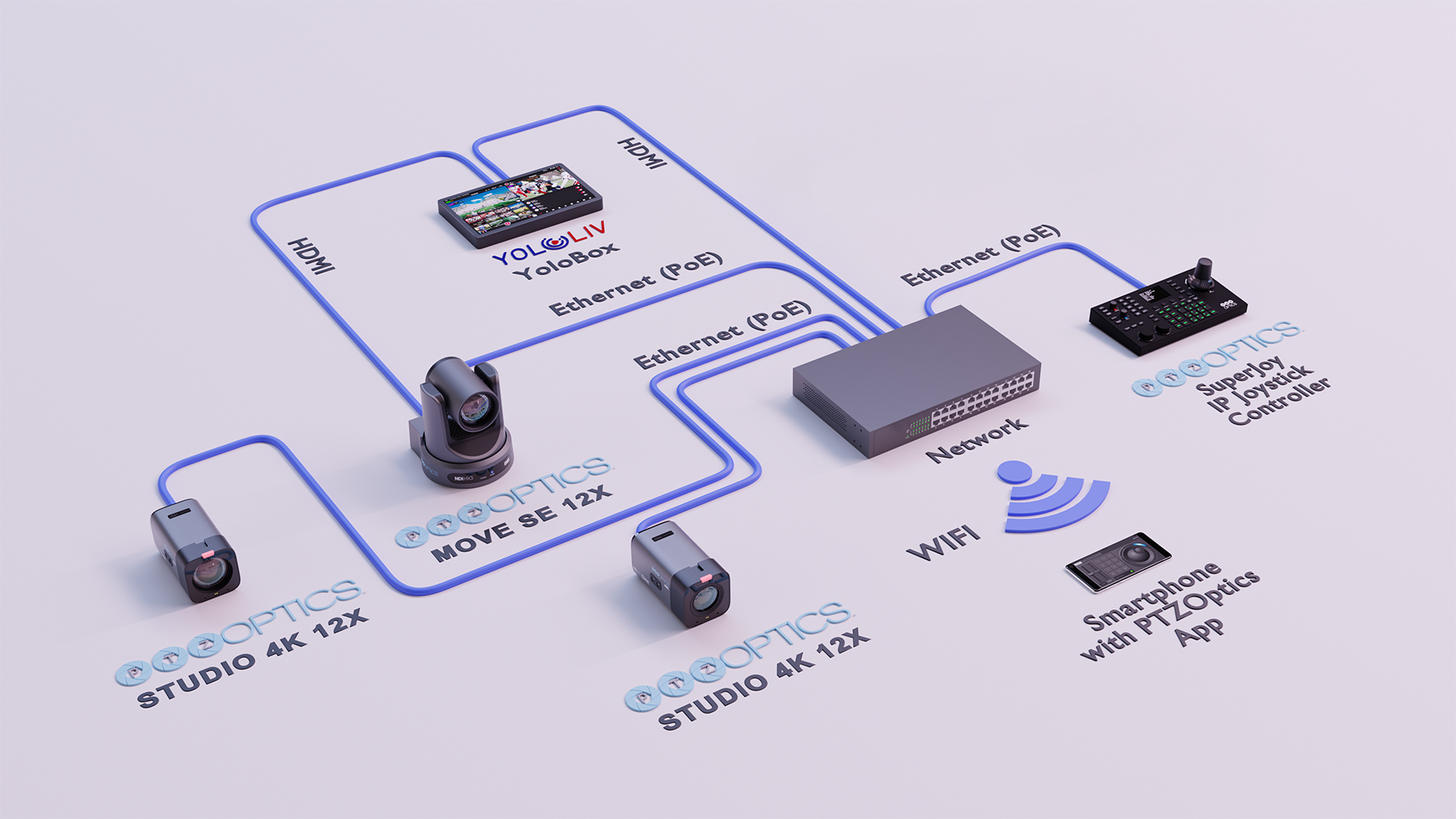

Connect Everywhere
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities – no need to run software on another computer and no camera operator required!

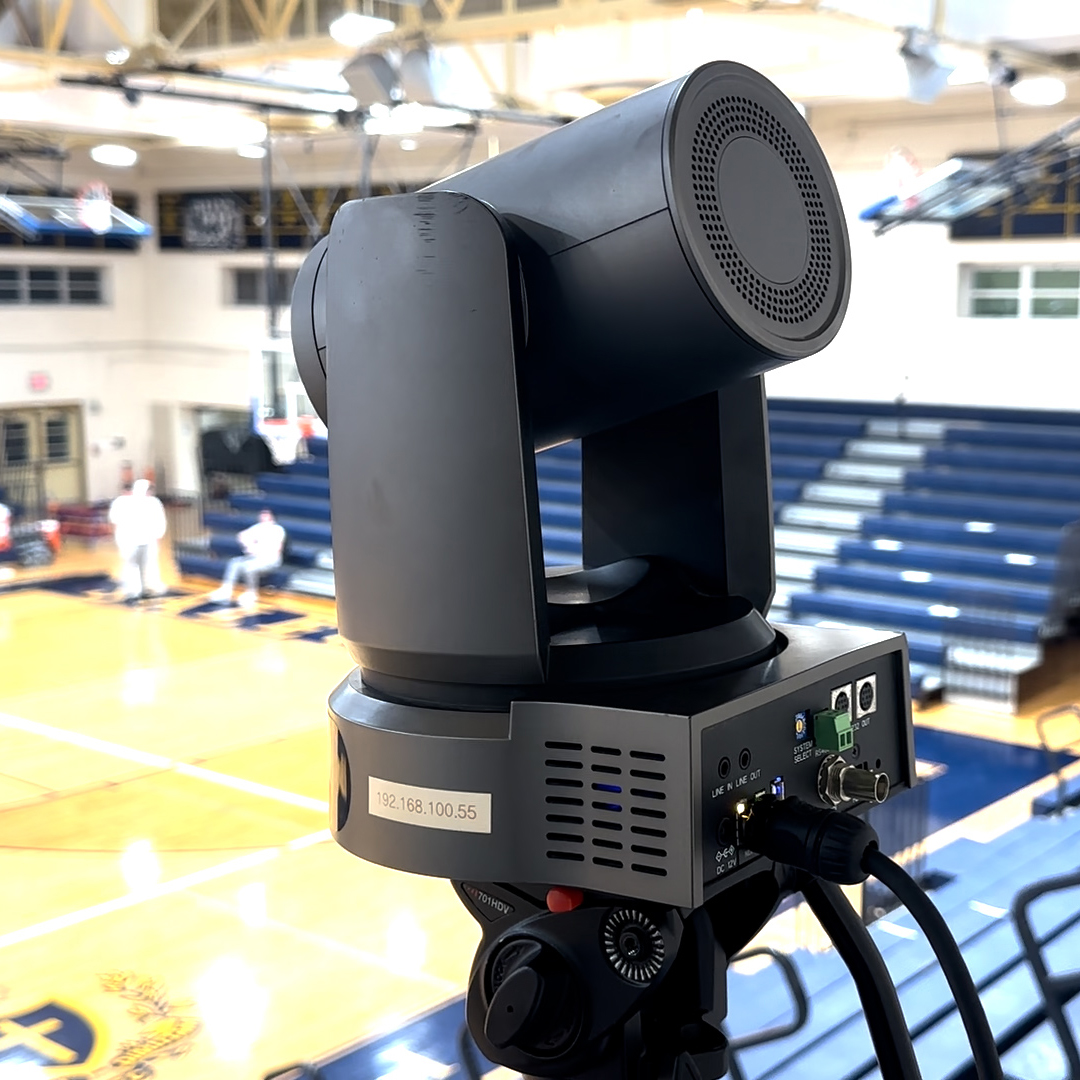

The Power of PTZ
Robotically controlled PTZ (pan-tilt-zoom) cameras give you the advantage of being able to manage your camera’s movements without a dedicated camera operator. Cinematic techniques are placed right at your fingertips to make sure your viewers catch all the action. With the included Move 4K, you’ll have the flexibility to cover the entire field, court or diamond with studio-quality camera controls.
Easy Control
In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI – updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

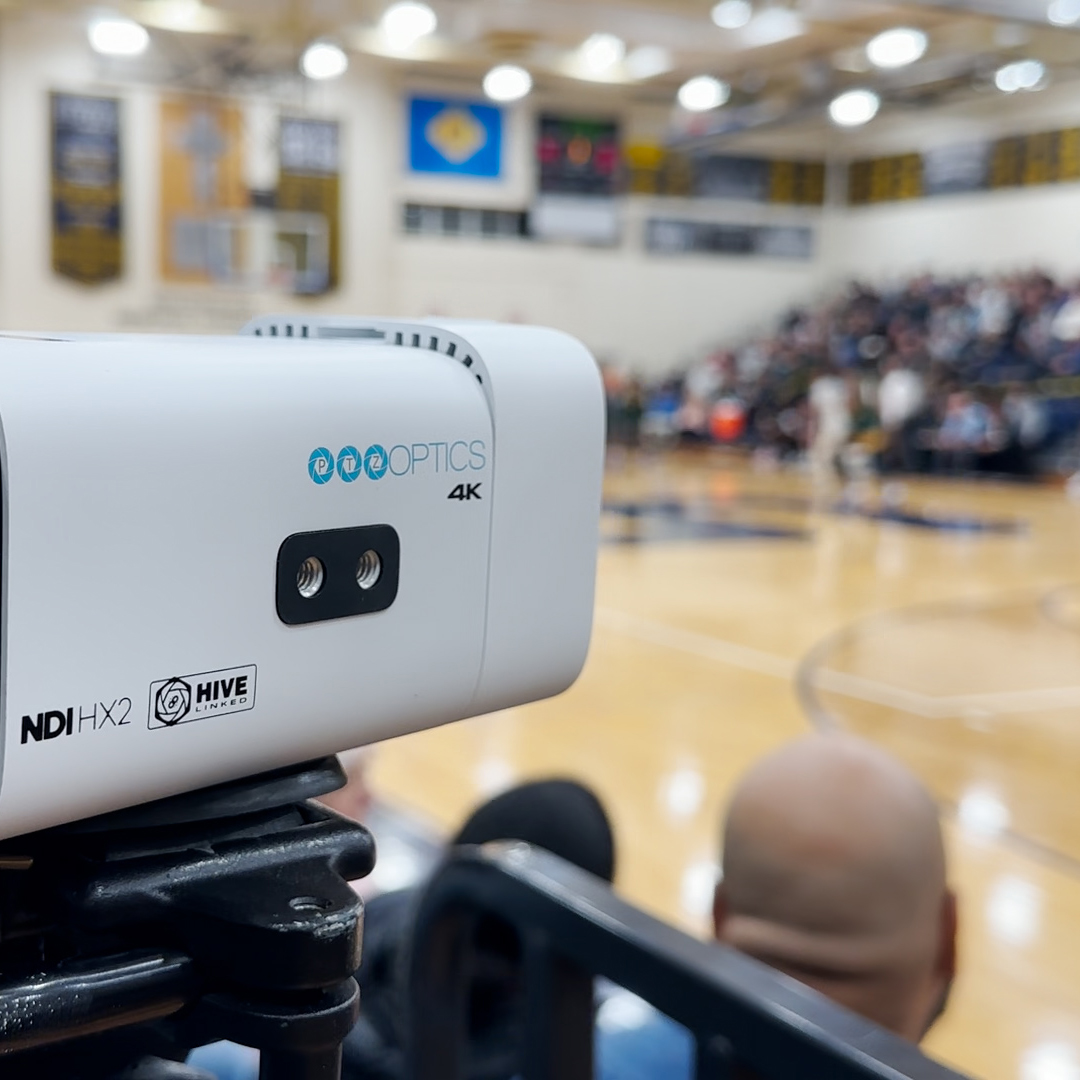

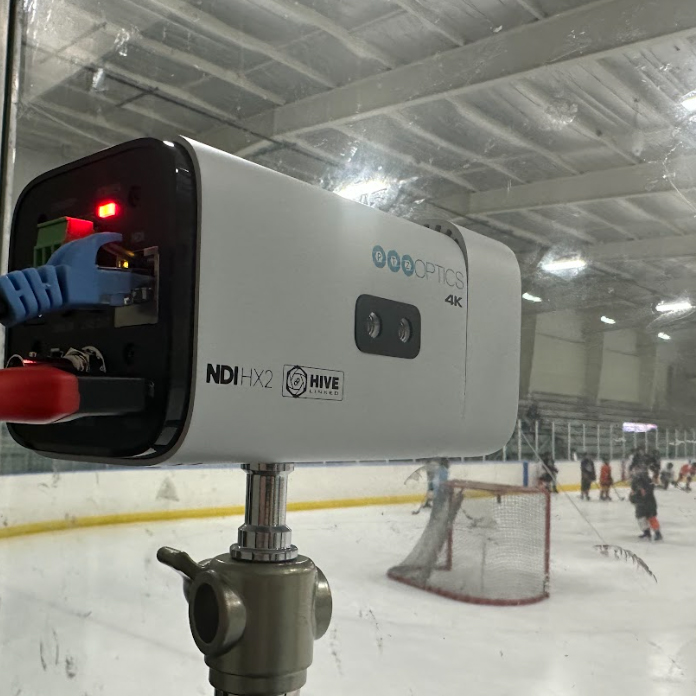

Fixed Camera Creativity
Never miss a scoring shot with your Studio 4K fixed cameras capturing the action at each goal line, net or basket. The power of 12K optical zoom helps you capture the up-close action and player reactions.
The Studio 4K provides crystal-clear 4K resolution, 12X or 20X optical zoom and conveniently Hive-Linked™ to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere. The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX3.
Controller at Your Command
The SuperJoy joystick controller offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. The SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.
Hive Studio and the Hive-Linked™ Advantage
PTZOptics Hive Studio revolutionizes video production by merging professional-grade camera control with real-time recording. This unified platform allows for seamless connection, control, and creation from anywhere, and allows for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. All PTZOptics 4K cameras are Hive-Linked (now in beta!), providing instant connection to Hive Studio.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our cameras come with a 5-year limited parts and labor warranty, and our joysticks come with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Why Producer
Bundles?
- Easy Setup
- PoE+
- Stunning 4K Resolution
- Seamless Integration
- Lifetime Support
- Best-in-Class Warranties
Bundle Comparison
Producer SE Bundle
$4,794 MAP
-
3 Move SE 20x PTZ Cameras
-
Studio 4K Fixed Camera
-
1 PT-JOY-G4 Joystick
-
Up to 1080p @ 60 FPS Resolution
-
USB 2.0 (Type C)
-
PoE
-
NDI® HX2 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP OR Serial (must manually toggle between the two)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX2 support for 1080p video up to 60fps
**Native NDI® HX2 support for 1080p video up to 60fps
Producer 4K Bundle
$7,923 MAP
-
3 Move 4K 20x PTZ Cameras
-
Studio 4K Fixed Camera
-
1 PT-SUPERJOY-G1 Joystick
-
Up to 4K @ 60 FPS Resolution
-
USB 2.0 (Type A)
-
PoE+
-
NDI® HX3 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX3 support for 4K video up to 60fps
**Native NDI® HX3 support for 4K video up to 60fps

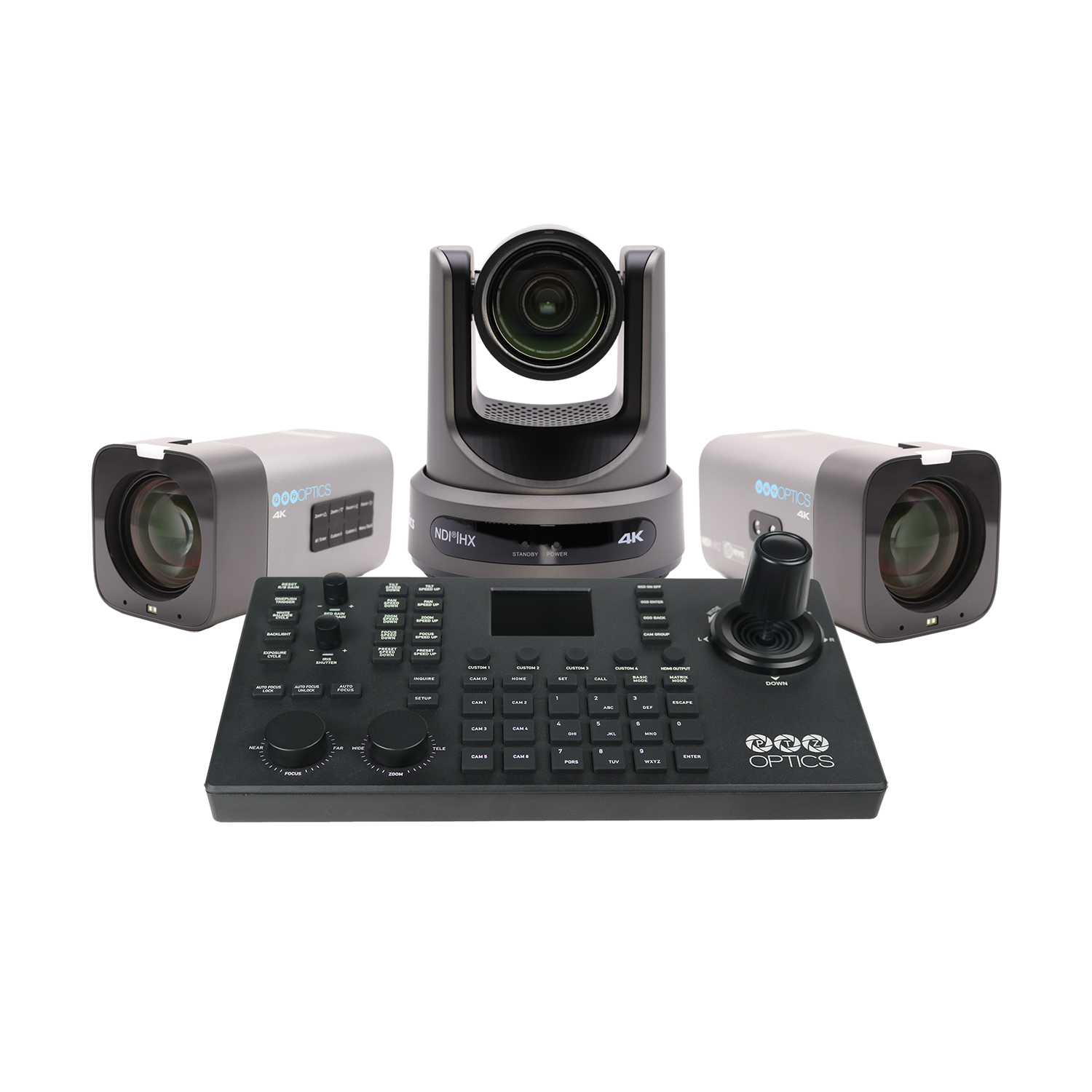

Action Bundle
$5,411 MAP
-
1 Move 4K 12x PTZ Camera
-
2 Studio 4K 12x Fixed Cameras
-
1 PT-SUPERJOY-G1 Joystick
-
Up to 4K @ 60 FPS Resolution
-
USB 2.0 (Type A)
-
PoE+
-
NDI® HX3 Native**
-
Auto-Tracking
-
Serial Control (RS-232/RS-485)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Built-In Tally Light
-
Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
-
Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
-
Joystick HDMI Output
*Save big by bundling!
**Native NDI® HX3 support for 4K video up to 60fps
**Native NDI® HX3 support for 4K video up to 60fps
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Action Bundle Specs
Move 4K camera specs
Image Sensor & Lens | Video Sensor | 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M |
Lens | 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19 Estimated 35mm Equivalencies are here. |
|
Lens (35mm Equivalencies) | 12x: 25mm ~ 299mm, F1.8 ~ F2.6 20x: 31mm ~ 589mm, F1.58 ~ F3.95 30x: 32mm ~ 825mm, F1.61 ~ F5.19 |
|
Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 | |
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94 | ||
Digital Zoom | Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144) | |
Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide) |
|
Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
Shutter | 1/30s ~ 1/10000s | |
Pan/Tilt Movement | Pan Speed | 1.7° ~ 100°/s |
Tilt Movement | +90° to -30 | |
Tilt Speed | 1.7° ~ 69.9° | |
Presets | 255 Presets | |
Video Tracking | Supported | |
Image Flip, Mirror and Freeze | Supported | |
Power Options | Power Supply | DC 12V / PoE+ (802.3at) |
Input Power | 18W (Max) | |
Physical Specifications | Material | Aluminum, Plastic |
Color | White and Gray | |
Dimensions (W x D x H) | 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm 30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm |
|
Weight | 12x and 20x: 3.25 lbs (1.47 kg) 30x: 4.41 lbs (2.0 kg) |
|
Working Environment | Indoor | |
Operating Temperature | 14°F ~ 104°F (-10°C to 40°C) | |
Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |
Rear Board Connectors | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard |
1x HDMI: version 2.0 | ||
1x USB 2.0: type A | ||
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard | ||
Audio Interface | 1x 3.5mm Line level Input | |
Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P | ||
Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at) | |
Power Jack | JEITA type (DC IN 12V) |
Studio 4K camera specs
Camera & Lens | Image Sensor & Lens | 12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels) |
Digital Zoom | 16x | |
Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25,
1920x1080p-60/59.94/50/30/29.97/25,
1920x1080i-60/59.94/50, 1280x720p-60/59.94 SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50 |
|
Optical Lens Focal Length (Zoom) | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6 |
|
Optical Lens Field of View, Horizontal & Vertical | 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8° 20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1° |
|
Display Field of View | 12x: 80.2° 20x: 67.8° |
|
Min Lux | 0.5 Lux @ (F1.8, AGC ON) | |
Shutter | 1/30x ~ 1/10000s | |
Presets | 255 Presets | |
Presets Accuracy | 0.1° | |
Image Flip | Supported | |
Image Mirror | Supported | |
Image Freeze | Supported | |
Physical Specifications | Material | Aluminum, Plastic |
Color | Gray or White | |
Dimensions (L x W x H) | 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H | |
Weight | 12x: 1.5 lbs | 0.68kg 20x: 1.4 lbs | 0.64kg |
|
Working Environment | Indoor | |
Humidity Range | 10% ~ 80% | |
Operating Temperature | 14°F ~ 104°F (-10°C ~ 40°C) | |
Storage Temperature | -40°F ~ 140°F (-40 ~ 60°C) | |
Connections | HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI®
HX3 enabled 1x HDMI: Version 2.0 1x USB: 3.0 Type C 1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M |
Audio Interface | 1x 3.5mm Line level input 1x 3.5mm Line level output |
|
Video Formats | USB:
RTSP/NDI® HX3 only:
|
|
Compression Standards | H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only) | |
UVC Version Supported | UVC 1.1 ~ 1.5 | |
Supported Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc. | |
IR | 4x IR Addresses, Max distance 30ft / 9m | |
Power Supply | JEITA type (DC IN 12V) / PoE+ (802.3at) | |
Current Consumption | Max 2A | |
Power Consumption | Max 18W |
SuperJoy joystick specs
Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI® | |
Max Cameras | 28 cameras total (5 groups of 7 channels) | |
Recommended Max Distance | RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m | |
Baud rate | 1200 -19200 bps | |
Operation Specifications | Power | 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.) |
Working Temp | 14° F -122° F | -10° C +50°C | |
Working Humidity | 10% ~ 90% (non-condensation) | |
Weight | 3.75 lbs | 1.70 kg | |
Dimensions (in.) | 13.94 W x 7.05 D x 3.98 H | |
Dimensions (mm.) | 370 W x 180 D x 101 H |
