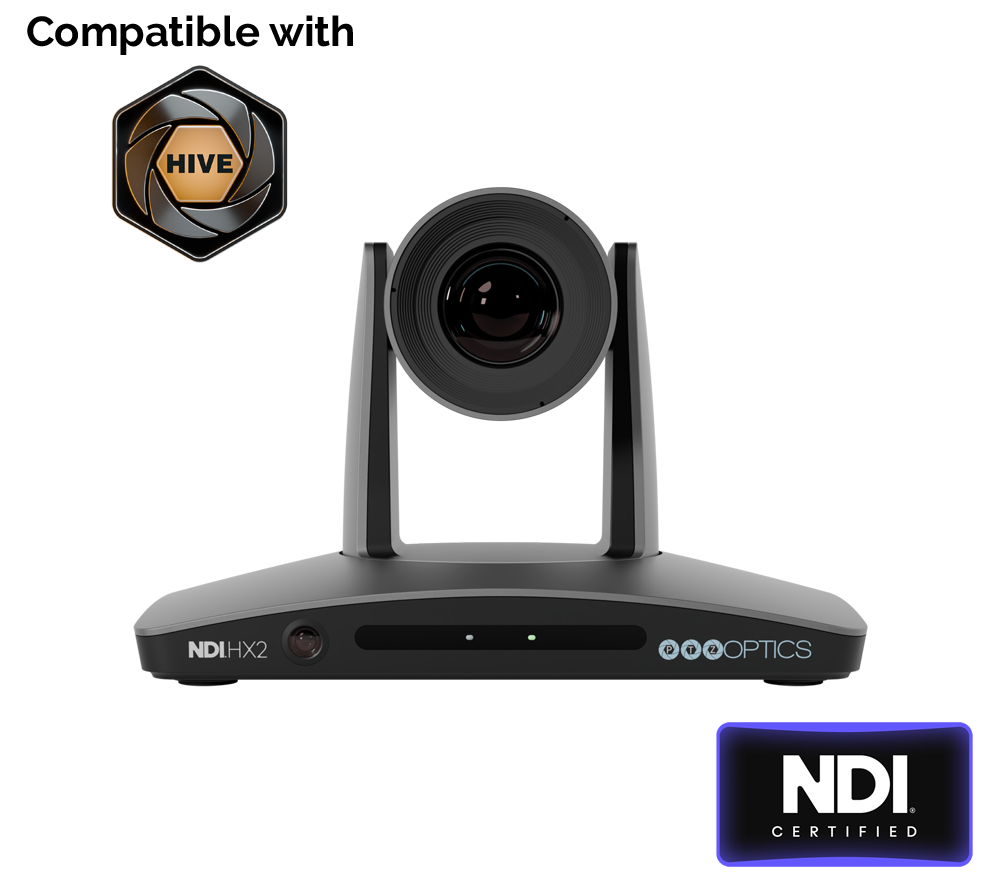

The HuddleCamHD SimplTrack3
NOW SHIPPING:
The Next Generation of Dual Lens Auto-Tracking
Auto-Tracking and Auto-Framing

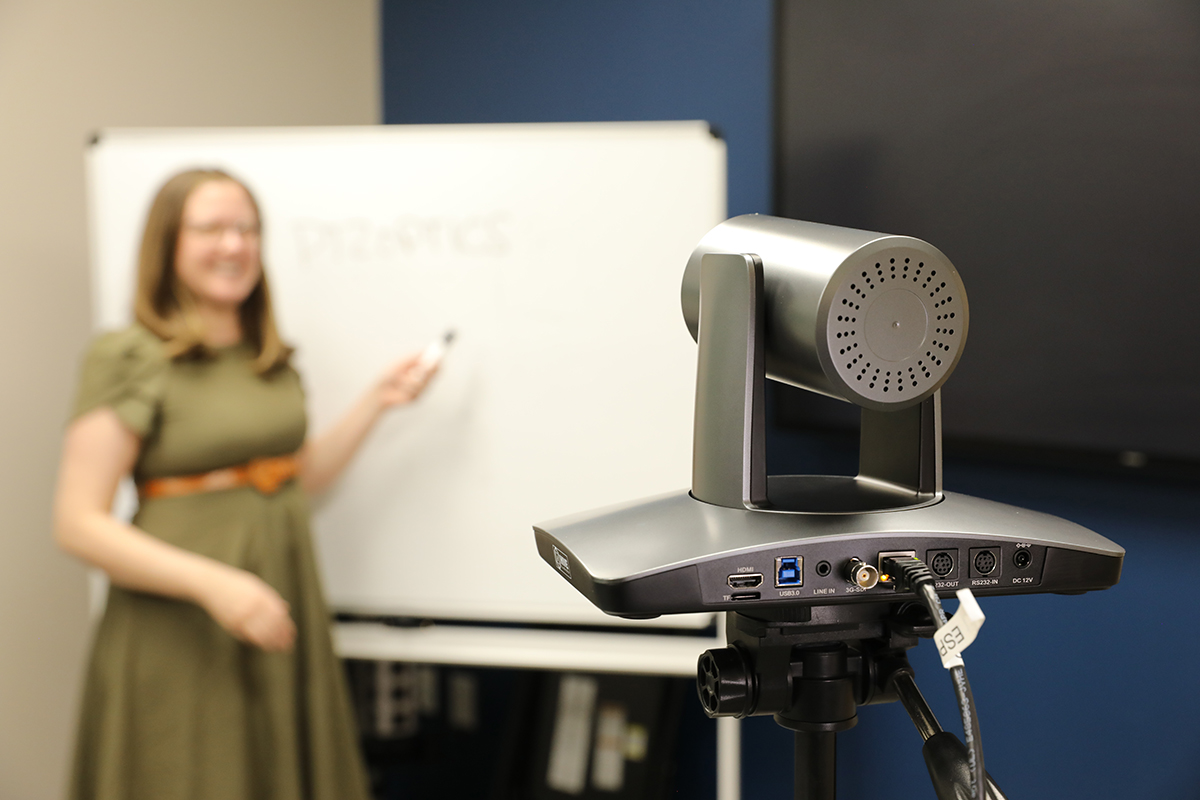

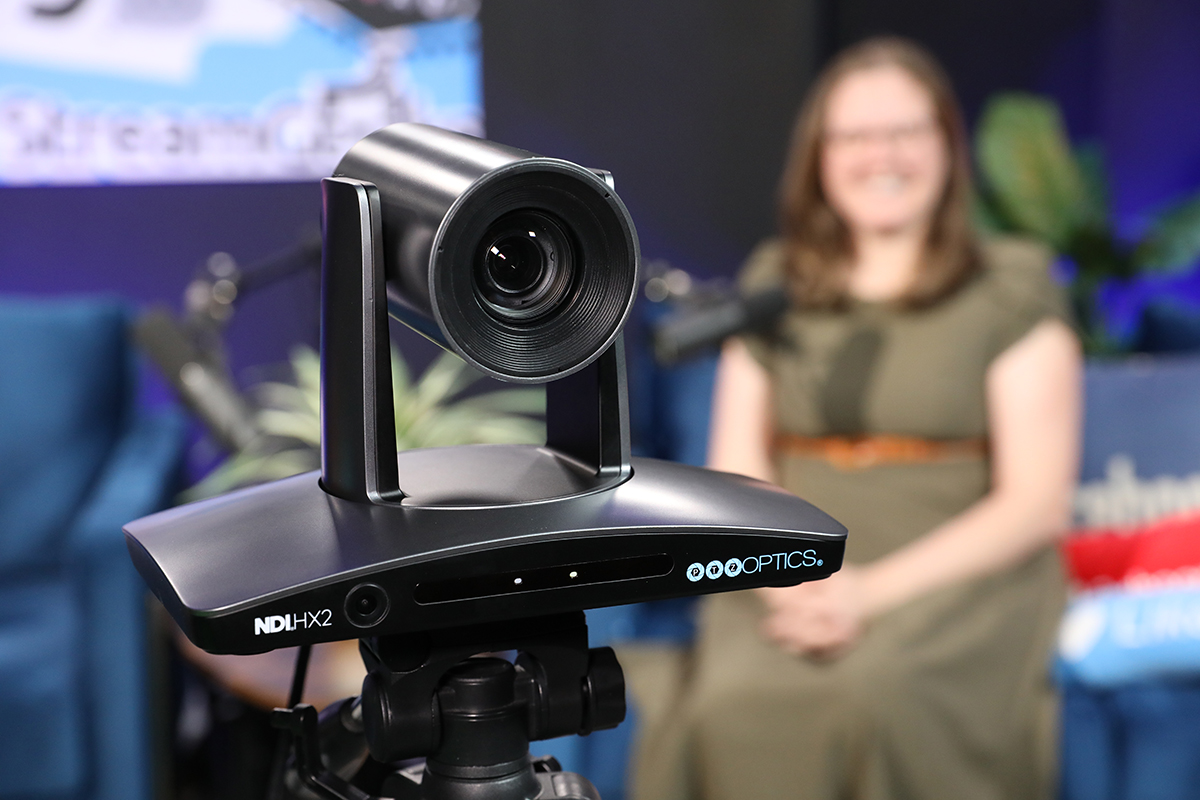

The HuddleCamHD SimplTrack3 streamlines high-quality conference and lecture productions without a camera operator. It offers automatic motion tracking up to 55ft, 20X zoom in 1080p at 60fps, 270° rotation, and a 59.5° field of view. Connectivity is simplified through USB 3.0 and Power over Ethernet (PoE), allowing a dual-sensor camera to be powered with a single ethernet cable.

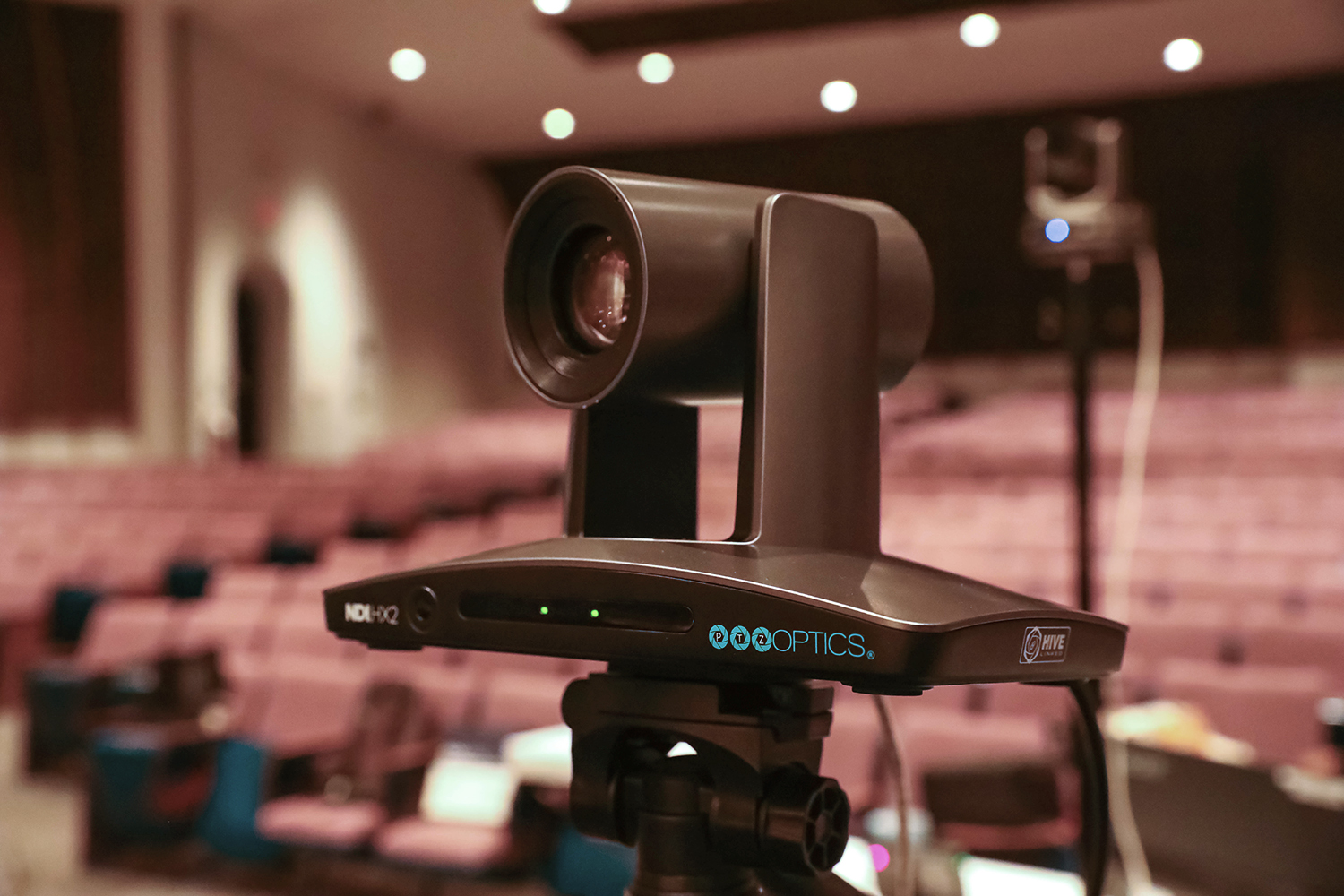

With advanced auto-tracking and auto-framing, SimplTrack3 switches effortlessly between tracking individuals and framing groups, ideal for conferences, stage productions, and classrooms. Its smart technology focuses on the subject, ignoring distractions, with easy toggling and manual PTZ control options.
Advanced Zone Management
The Tracking Zone encompasses the entire area where an auto-tracking subject might move across your frame. It’s designed to ensure smooth tracking of the presenter or lecturer, covering a wide range and offering flexibility in movement.
The Preset Zone represents an innovative feature where an automated preset is triggered when the camera enters a selected area. This could include switching to a separate camera, activating a stage light, or any other preset tailored to enhance the presentation or lecture experience. The SimplTrack3 contains 8 preset zones.
The wide angle reference camera provides intelligent controls for camera operation allow the camera to have stage awareness and produce the entire event automatically.
Customizability
With SimplTrack3, you can automate camera controls and quickly adapt to any unique workflow. Customized tracking sensitivity options allow for the complete customization of the zoom level, pan/tilt speeds, and automatic operations to match the educator’s presentation style. Manual Mode can be enabled, allowing you to operate the SimplTrack3 with the included IR remote, a PTZ camera joystick controller, or camera control apps.
Set and Forget
The HuddleCamHD SimplTrack3 caters to various user preferences with its auto-tracking functionality, allowing for a straightforward setup with a single button for those seeking an uncomplicated solution. For users desiring more control, the SimplTrack3 also offers advanced capabilities for more complex setups, enabling detailed adjustment and fine-tuning of the tracking process.
Dual-Sensor and Scalability

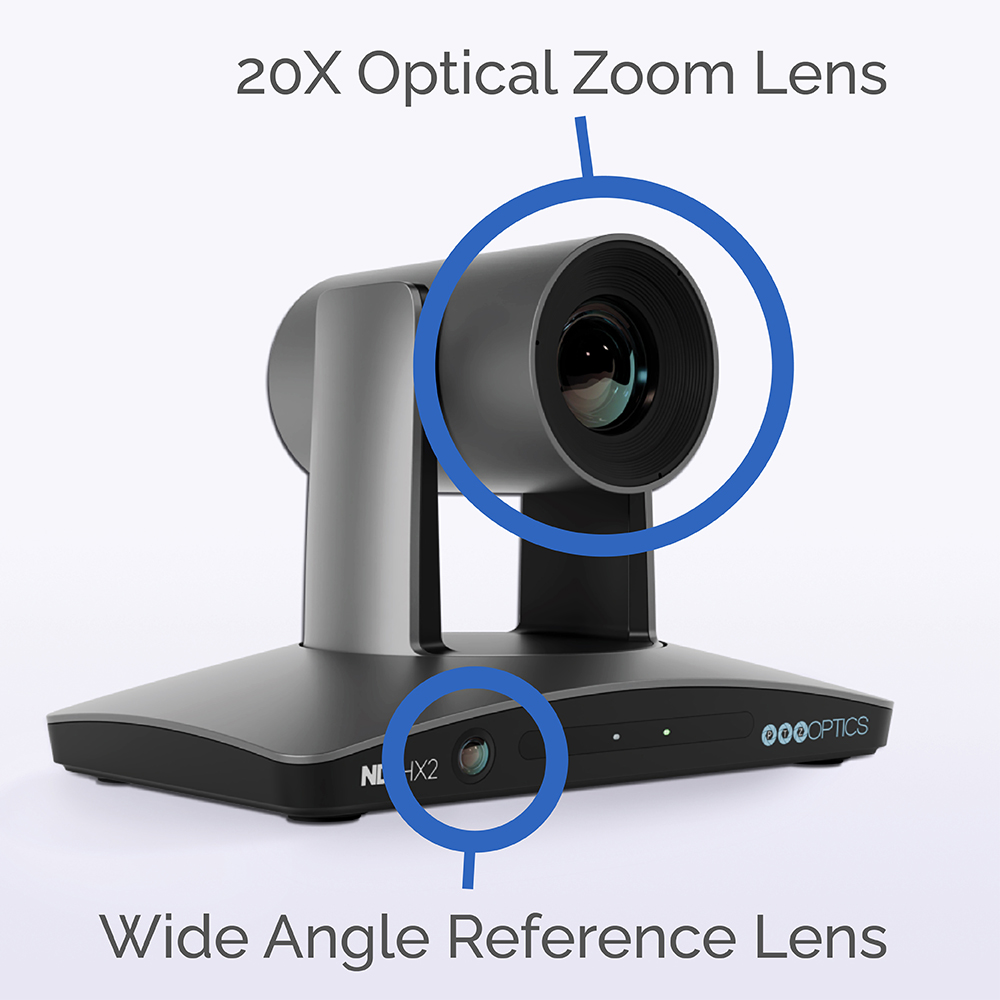

The SimplTrack3’s dual-sensor system provides flexibility and superior performance, simultaneously capturing wide-angle and close-up views. SimplTrack3 supports multiple video outputs for seamless system integration and is designed for scalable deployments with dedicated management software.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics and HuddleCamHD solutions to deliver high performance from day one, and for many years to follow.
The SimplTrack3 comes with a 5-year limited parts and labor warranty. PTZOptics and HuddleCamHD stand by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation for HuddleCamHD products purchased in the United States here. View our warranty documentation for products purchased internationally here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features and
benefits
- Auto-Tracking up to 55ft
- Advanced Zone Management
- 20X Zoom in 1080p
- PoE Support
- Dual-Sensor System
- 5-Year Warranty
Choose the Auto-Tracking Solution For You
SimplTrack3
-
$1649 MSRP
-
20x Zoom
-
Up to 1080p @ 60 FPS Resolution
-
5 Year Warranty
-
HDMI 2.0
-
USB 3.0 (Type B)
-
PoE
-
NDI® HX2 Native
-
Auto-Tracking (Dual-Lens)
-
Auto-Framing
-
Serial Control (RS-232)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Tracking Software
Move SE
-
Starting at $1099 MSRP
-
12x, 20x, and 30x Zoom Options
-
Up to 1080p @ 60 FPS Resolution
-
5 Year Warranty
-
HDMI 1.3
-
USB 2.0 (Type C)
-
PoE
-
NDI® HX2 Native
-
Auto-Tracking (Single-Lens)
-
Auto-Framing
-
Serial Control (RS-232)
-
SRT
-
RTSP/RTMP(S)
-
3.5mm Audio Embedding Connection
-
Tracking Software
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
The SimplTrack3 is compliant with NDAA 2019, Section 889. This product does not contain components from any of the companies highlighted in NDAA 2019, Section 889.
| Camera & Lens | Optical Lens Video Sensor | 20X: Sony 1/2.8 inch, CMOS, effective pixels: 2.14M |
| Resolution and Frame Rate | HDMI, SDI: 1080p60 / 50 | |
| USB, NDI® HX2: 1080p60, 1080p30, 720p30, 360p3 | ||
| Optical Lens Focal Length | 20X: f = 4.7mm ~ 94mm, F1.6 ~ F3.55 | |
| Display Field of View | Optical Lens: 71.0° Reference Lens: 101.0° |
|
| Optical Lens Field of View | Horizontal 3° ~ 59.5° | Vertical 2° ~ 36° | |
| Reference Lens Video Sensor | 1/2.8” | |
| Reference Lens Focal Length | 2.14 Mega Pixel, 2.4mm | |
| Reference Lens Field of View | Horizontal 86° | Vertical 52° | |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/1s ~ 1/10000s | |
| Pan/Tilt Movement | Pan Movement Range | ±170° |
| Pan Speed | 0.1°/s ~ 120°/s | |
| Tilt Movement Range | -30° ~ +90° | |
| Tilt Speed | 0.1°/s ~ 90°/s | |
| Presets | 255 Presets | |
| Preset Accuracy | 0.1⁰ | |
| Image Flip, Mirror and Freeze | Flip: Not Supported Mirror: Supported Freeze: Not Supported |
|
| Physical Specifications | Material | Aluminum, Plastic |
| Color | Gray | |
| Dimensions (W x D x H) | W 9.6” x D 6.1” x H 6.4” (W 243mm x D 157mm H 163mm) | |
| Weight | 5.7 lbs (2.59 kg) | |
| Working Environment | Indoor | |
| Humidity Range | 10% - 80% | |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) | |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) | |

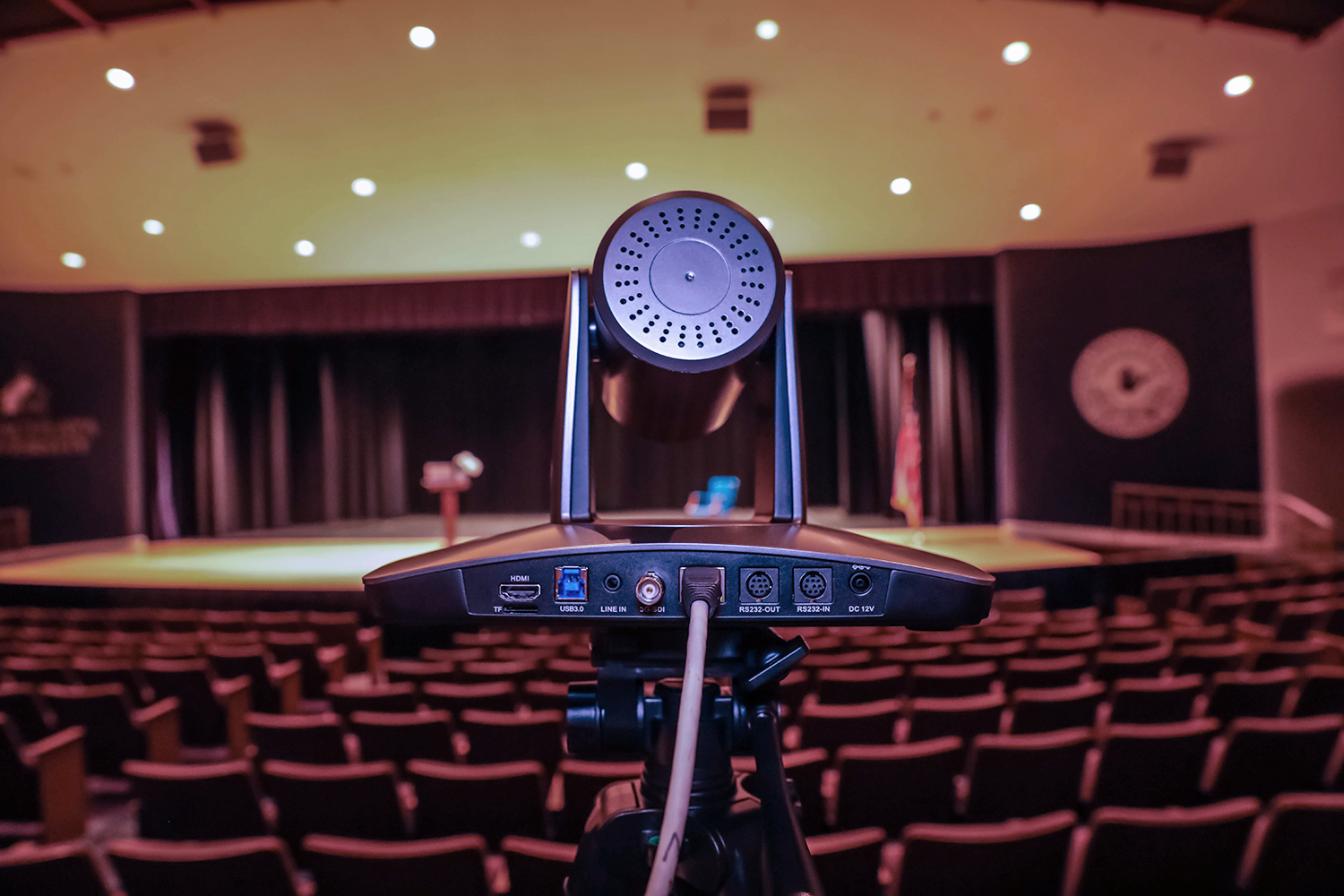

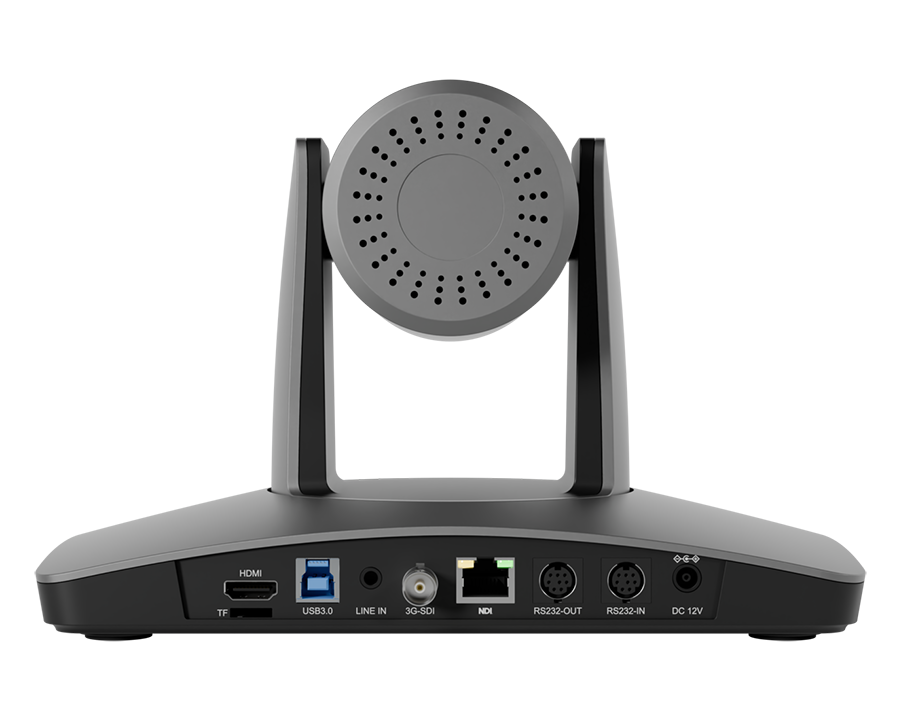

| Rear Board Connectors | HD Video Output | 1x RJ45: 10/100M Adaptive Ethernet Port | NDI® HX2 enabled |
| 1x HDMI: version 2.0 | ||
| 1x USB 3.0: type B | ||
| 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard | ||
| Audio Interface | 1x 3.5mm Line level Input | |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | |
| 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P | ||
| IR | 4x IR Addresses, max. distance 30ft / 9m | |
| Power Options | Power Supply | JEITA type (DC IN 12V) / PoE (802.3af) |
| Current Consumption | Max 1.0A |
SimplTrack3 Documentation
| SKU | MSRP | Documents |
|---|---|---|
| HC20X-SIMPLTRACK3 | $1,649 | Data Sheet | Manual | 3D CAD Renders |
Built with an advanced dual sensor system, the 1080p 60fps SimplTrack3 provides a high-precision auto-tracking mode and an intuitive auto-framing mode for a wide variety of applications.
- 5-Year Warranty
- Motion & Facial Tracking
- Customizable Zones
- Simultaneous Outputs: HDMI, SDI, NDI, USB, IP
- Facial Framing
- Dual Sensor Total Stage Awareness
