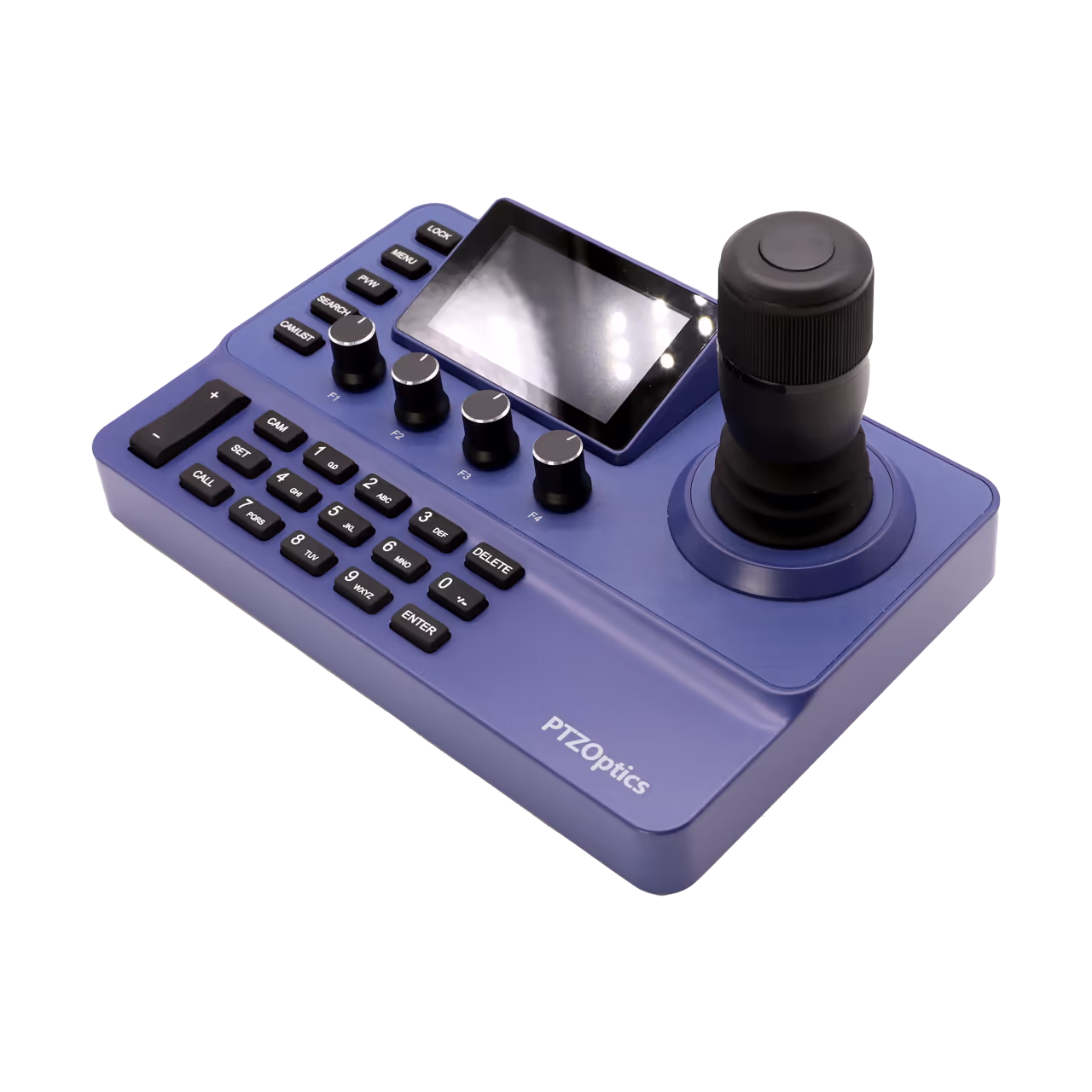

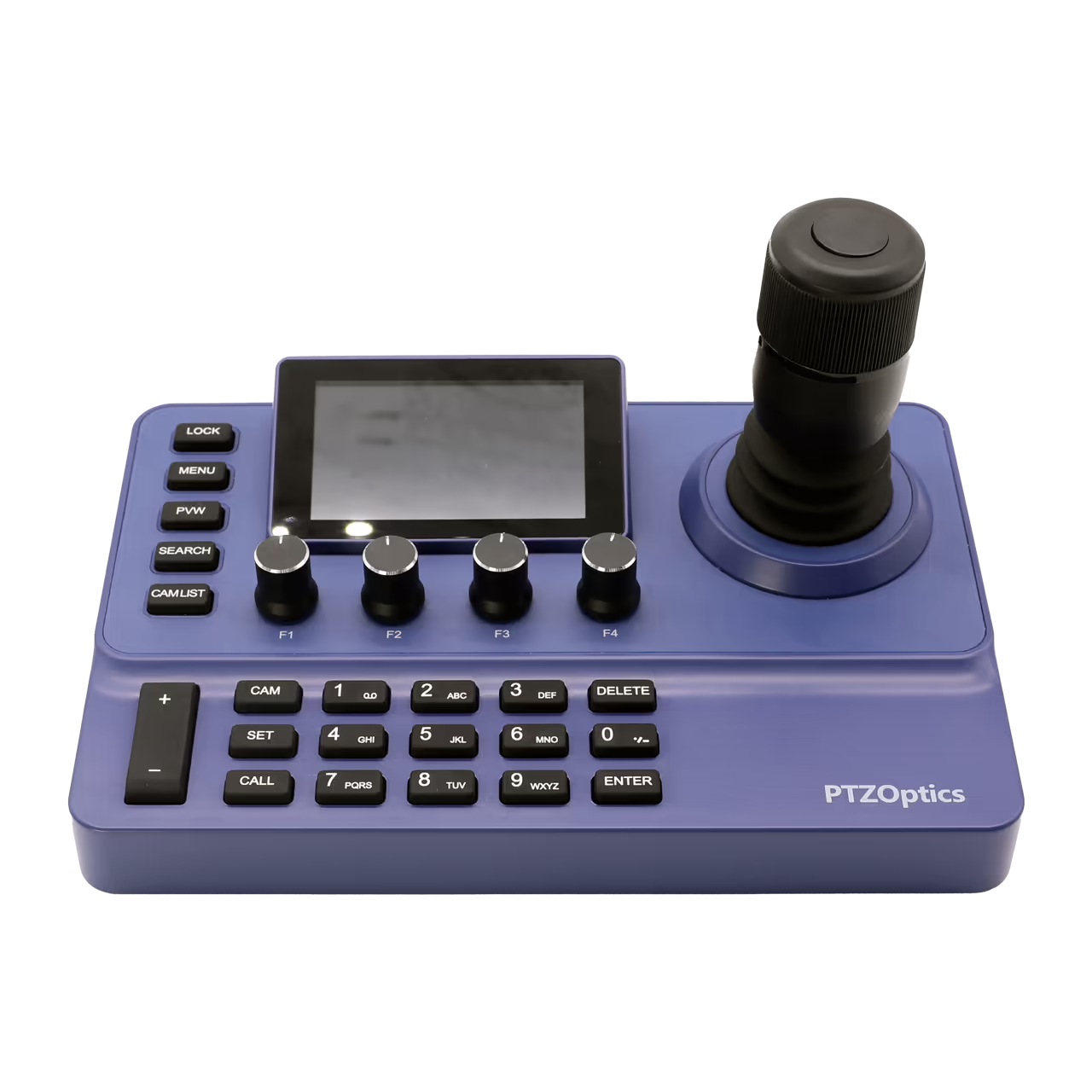

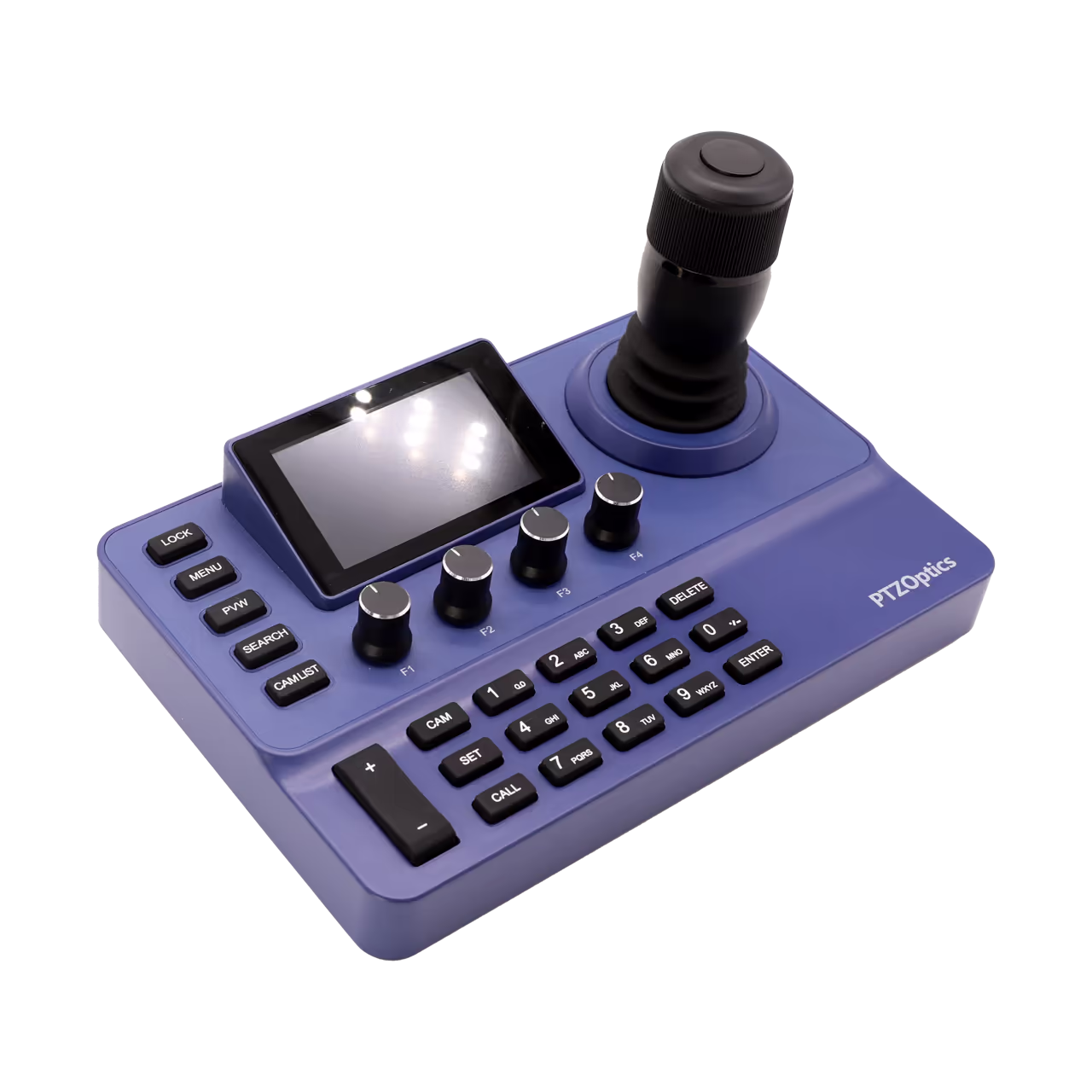

MiniJoy
MiniJoy delivers powerful IP and serial PTZ camera control in an exceptionally compact design. Built-in camera discovery, live video preview and customizable controls help operators manage cameras and essential production functions from one intuitive interface. Ideal for houses of worship, studios, live events, sports and mobile productions where space and simplicity matter.
Integrated 3-inch display with NDI® and RTSP video preview
24 customizable control slots across six pages, supported by an extensive PTZOptics command library
4K30 HDMI output with convenient PoE or DC power options
IP and serial camera control with VISCA, VISCA over IP, NDI® and ONVIF support
Product Overview
Description
MiniJoy combines professional IP and serial PTZ camera control in a remarkably compact design. Discover cameras across your network, preview NDI® and RTSP video, and access camera movement, presets and production commands from one intuitive interface. With flexible customization and integrated video monitoring, MiniJoy simplifies control for productions of every size
Key Features
Network camera discovery and configuration through a browser-based interface
Integrated 3-inch display with NDI® and RTSP video preview
24 customizable control slots across six pages with an extensive PTZOptics command library
4K30 HDMI output with flexible PoE or DC power options
Benefits
Find and Configure Cameras Faster
MiniJoy discovers compatible cameras across your network, helping simplify setup and reduce manual configuration. Its browser-based interface provides a centralized place to add cameras, manage connections and customize controls.
Preview Video While You Control It
View NDI® and RTSP video directly on MiniJoy’s integrated 3-inch display, so you can confirm your shot without looking away from the controller. A 4K30 HDMI output also supports video monitoring on a larger external display
Build Controls Around Your Workflow
Six pages of four customizable control slots give you quick access to the commands, presets and camera functions you use most. Choose from the PTZOptics command library to create a control layout that fits your productio
Professional Control Without the Footprint
At just 8.27 inches wide by 5.43 inches deep, MiniJoy brings powerful PTZ control to crowded production desks, mobile systems and space-conscious installations. PoE and DC power options make it easy to integrate into a wide variety of workflow
Technical Specifications
Video Specifications
Max Cameras
1000
Recommended Max Distance
Ethernet: 328 feet | 100 Meters RS-232: 50 feet | 15 Meters RS-422: 50 feet | 15 Meters RS-485: 3,937 feet | 1200 Meters
Baud Rate
1200-19200bps
Warranty
2 Years
Physical Specifications
Power
3W (12VDC) / PoE (802.3af)

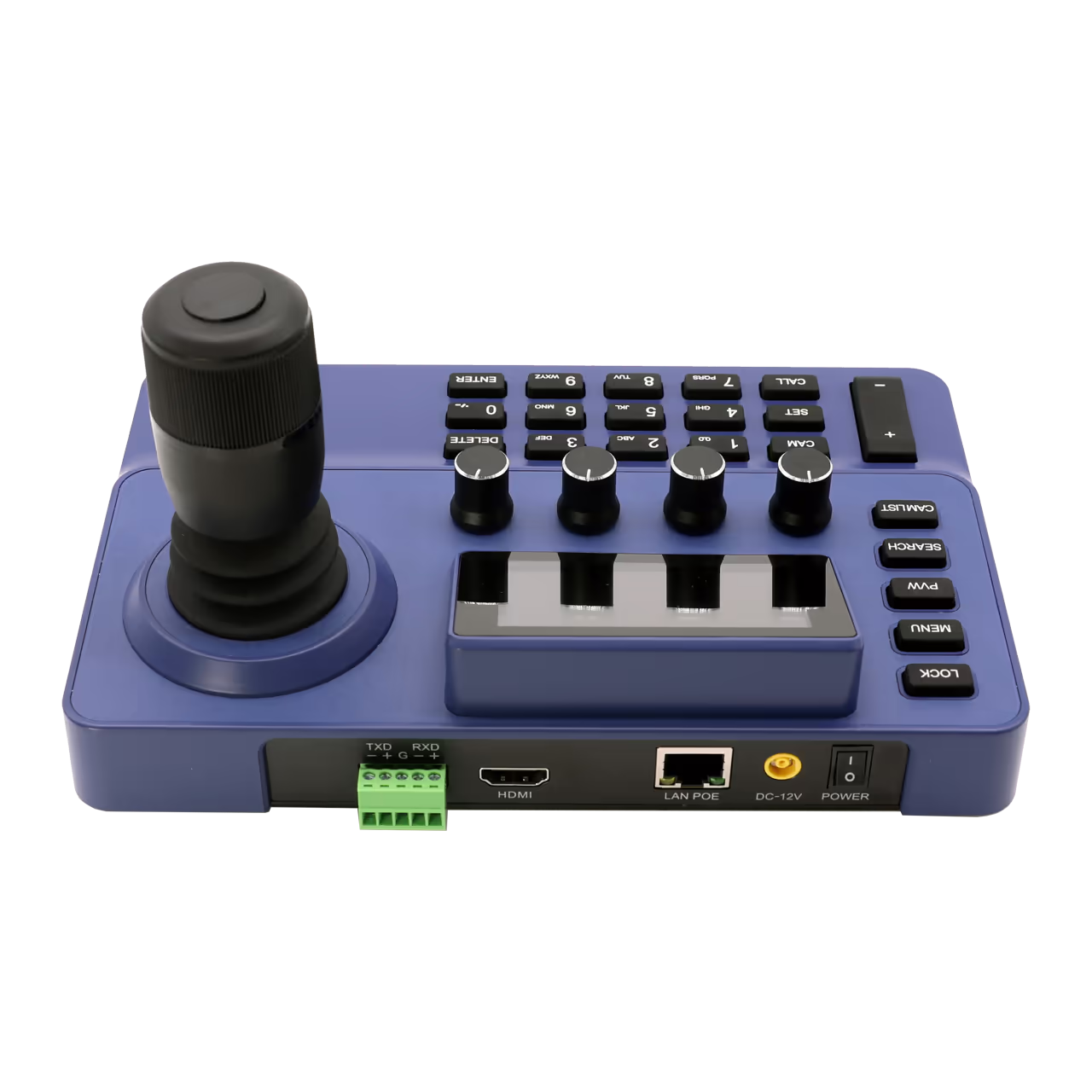

Connections
RS-232 Control Connection RS-422 / RS-485 Control Connection 10/100M Ethernet / RJ-45 (PoE) Network Port Supports 802.3af PoE power Network: NIC (TCP and UDP) Serial/Analog: RS-232 Full Duplex, RS-485 Semi Duplex, RS422 Full Duplex
Protocols
PTZOptics VISCA and VISCA over IP PELCO-D and PELCO-P via Serial Ports Limited Sony VISCA and VISCA over IP support Limited ONVIF support Limited NDI® support Limited Panasonic Support (HTTP) WebSockets
Colors
Blue
