Power+Link
Power+Link adds wireless video, camera control and PoE+ power to IP camera workflows in one compact, portable solution. Pair it with a V-mount battery to position compatible PTZ cameras where network cabling and power outlets are impractical. Ideal for mobile productions, sports, live events and clean AV installations.
Wireless IP video and camera control for flexible production workflows
PoE+ camera power from a compatible V-mount battery
Compact design with flexible mounting for mobile and installed applications
Product Overview
Power+Link is built for productions that need flexibility without adding complexity. By enabling wireless video and device control over standard Wi-Fi networks, it helps streamline camera placement in environments where running cables isn’t practical. Integrated PoE+ support simplifies your setup by delivering both power and data over a single Ethernet connection. Whether you’re working in a studio, live venue, or mobile production environment, multiple power options—including V-mount battery compatibility—make it easier to stay operational wherever the shoot takes you. The compact aluminum housing is designed for professional installs and portable workflows alike, with multiple mounting points that support wall, ceiling, and tripod mounting configurations.
Key Features
Wireless IP video and device connectivity over Wi-Fi 6
Integrated PoE+ injector with IEEE 802.3at support
Flexible Power Options
Multiple 1/4-20 mounting points with anti-rotation slots
Benefits
Wireless Freedom
Transform any IP-based camera into a fully wireless powerhouse. Stream video or control devices remotely and effortlessly through virtually any Wi-Fi router or network.
Power Over Ethernet (PoE+)
Built-in PoE+ injector delivers both data and reliable power through a single cable, simplifying setup and keeping your rig clean.
Flexible Power Options
Power your compatible equipment anywhere. Choose from DC24V input, output POE+, or the versatile V-mount battery series. (The Power+Link is not powered by POE)
Mountable Build

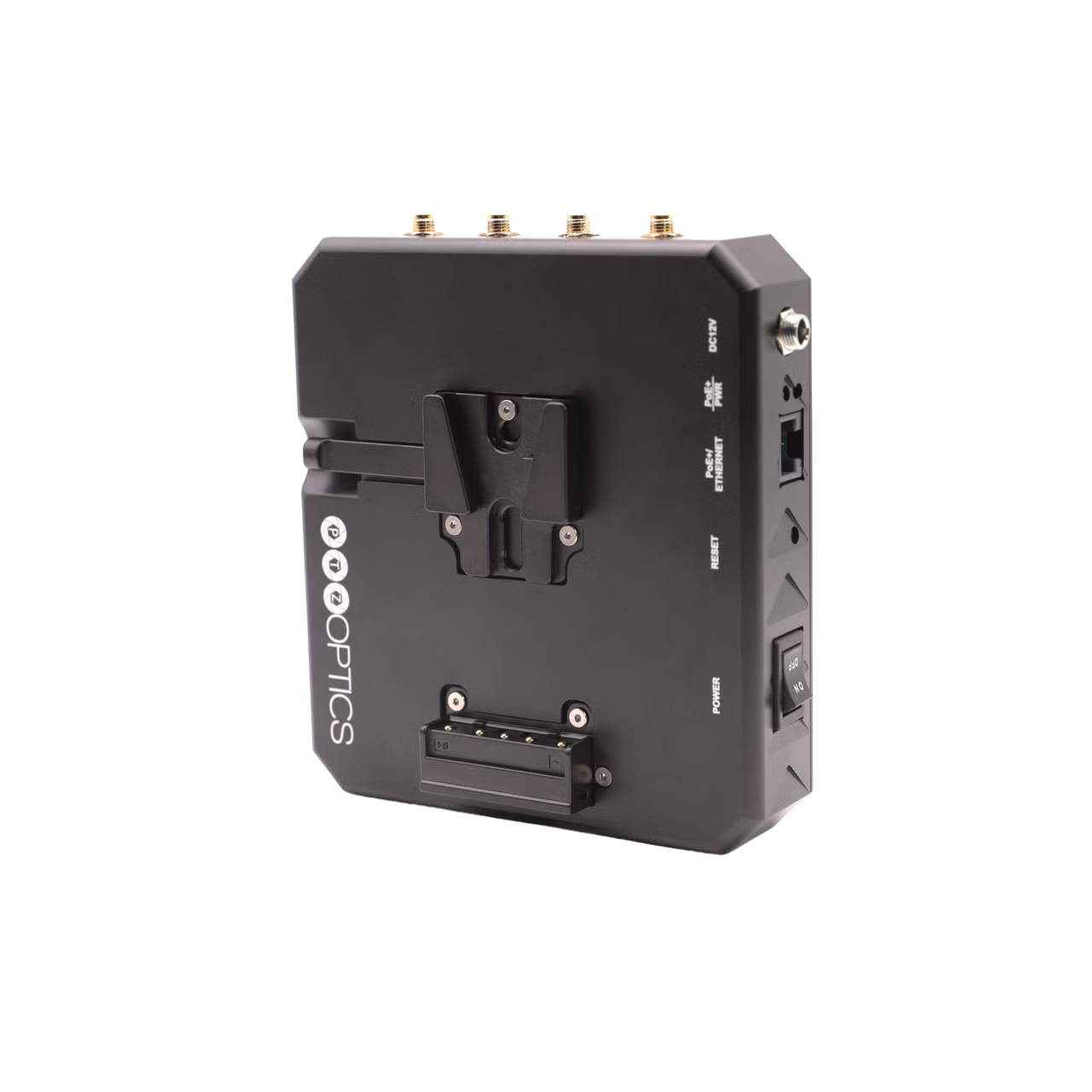

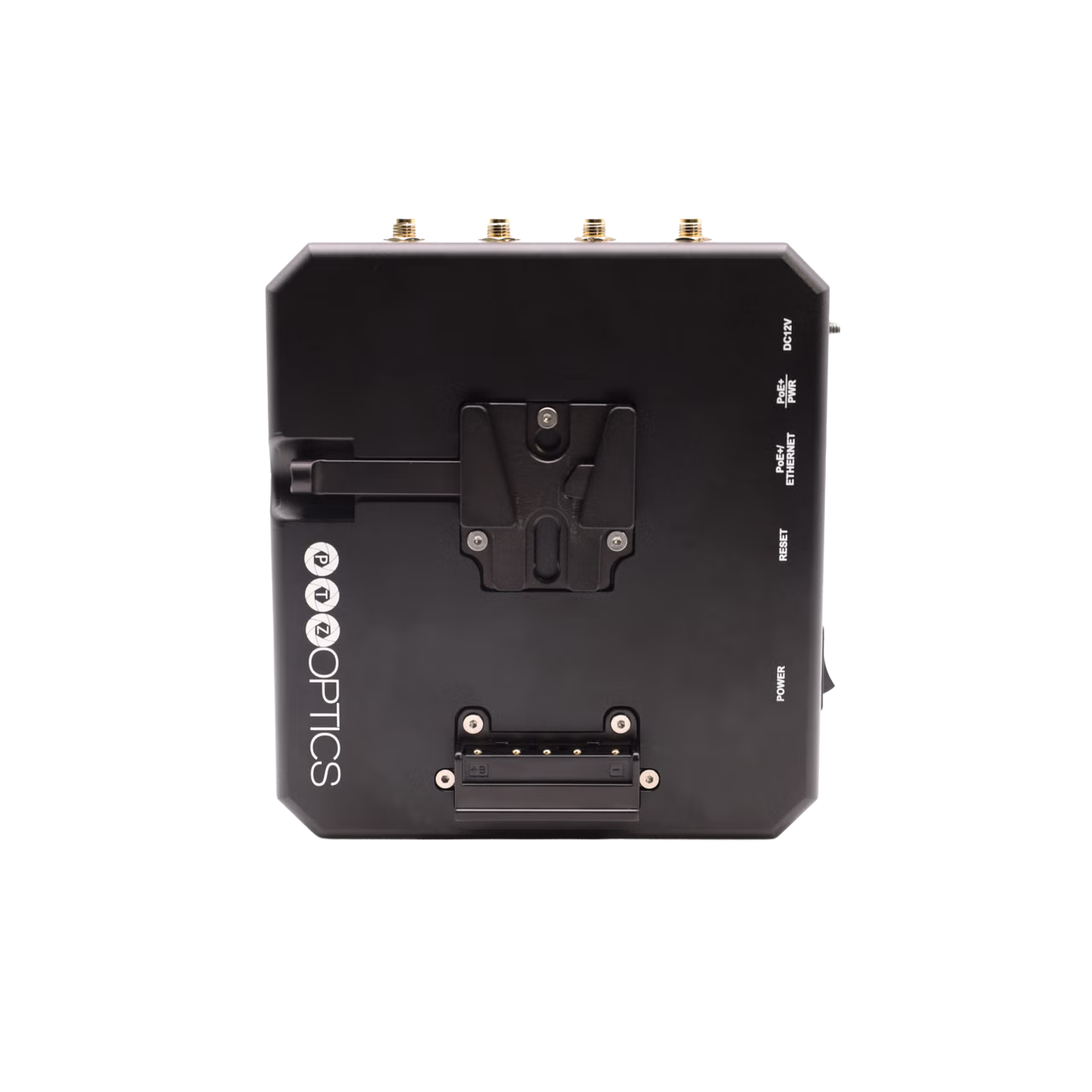

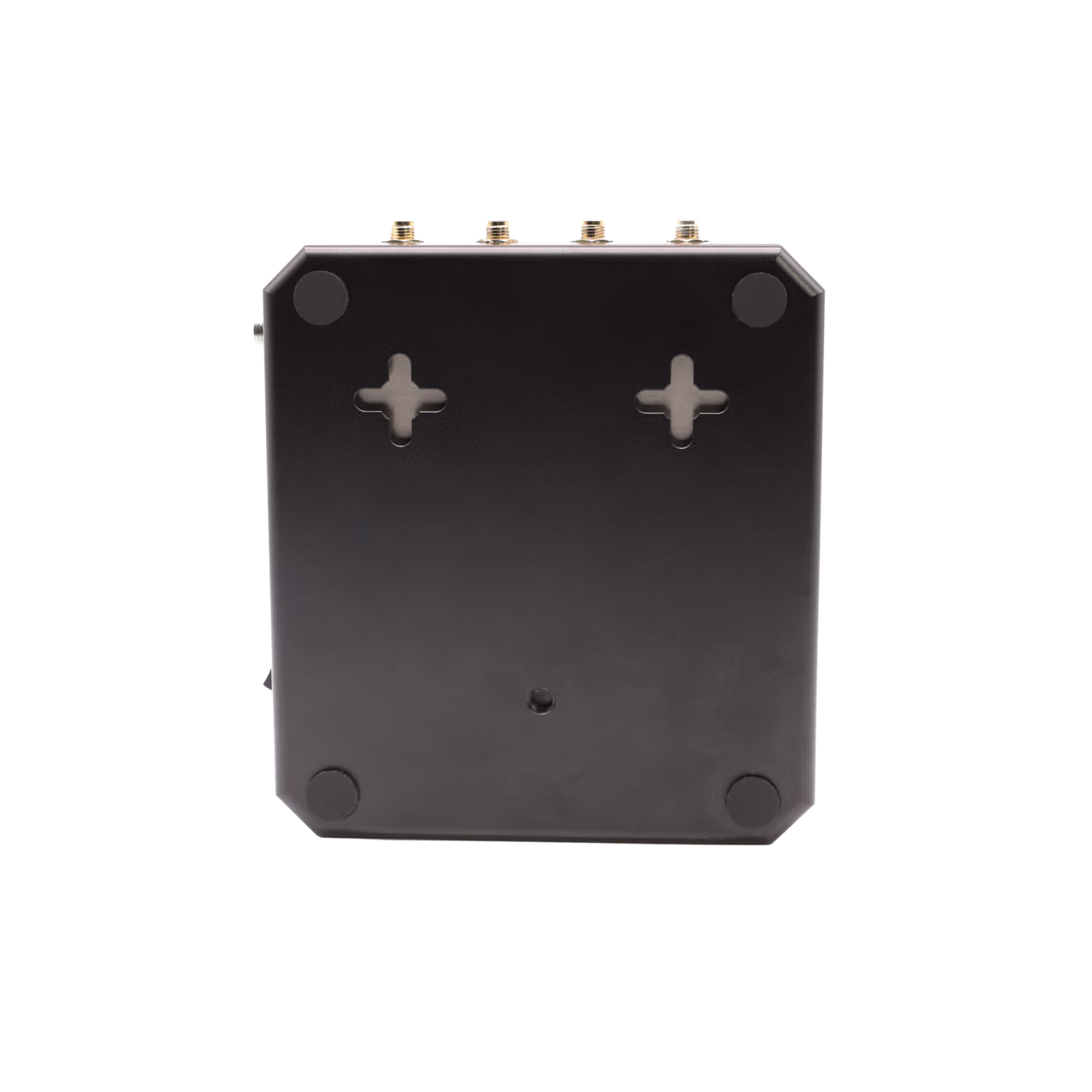

Designed for flexible installation, this device can be securely mounted on a wall, ceiling, or tripod to fit your space. Both sides feature one standard 1/4-20 mounting insert, and the back is fitted with two keyhole slots, providing a stable, professional setup with common mounting hardware. The integrated V-mount plate securely attaches a battery to the unit, providing a clean, cable-free power solution for mobile or on-set use.
Technical Specifications
Transmission
Antenna
4x 5 dBi high-gain antennas
Wireless Standard
IEEE 802.11ax/ac/a/b/g/n
Transmission Rate
574 Mbps on 2.4 GHz / 2400 Mbps on 5.8 GHz
RF Paramaters
Receiver Sensitivity: -98 dBm
Frequencies
2.412-2.472 GHz / 5.180-5.825 GHz
Channel Bandwidth
20/40/80/160 MHz, auto
Encryption
WPA-PSK / WPA2-PSK / WPA/WPA2
Wifi
6
Physical Specifications
Physical Ports
Gigabit RJ45 port, 24V DC port, V-Mount battery plate
Case
Hardened aluminum
PoE+ Port Standard
Up to IEEE 802.3at
Indicators
PWR, PoE+ output status
Switch
On and Off
Operating Temp
-10°C - 50°C
Power Connector
24VDC Power Connector, V-Mount Style Battery Adapter (Battery not included)
LAN Connector
LAN / POE+ Output
Product Resources
Need Help?
Our technical support team is available:
Monday - Thursday 8:00am - 6:00pm EST/EDT
Friday 8am - 4pm EST/EDT
Monday - Thursday 8:00am - 6:00pm EST/EDT
Friday 8am - 4pm EST/EDT
Power+Link
PT-WIRELESS-POWERLINK
Power+Link adds wireless video, camera control and PoE+ power to IP camera workflows in one compact, portable solution. Pair it with a V-mount battery to position compatible PTZ cameras where network cabling and power outlets are impractical. Ideal for mobile productions, sports, live events and clean AV installations.
Wireless Freedom
Transform any IP-based camera into a fully wireless powerhouse. Stream video or control devices remotely and effortlessly through virtually any Wi-Fi router or network.
Power Over Ethernet (PoE+)
Built-in PoE+ injector delivers both data and reliable power through a single cable, simplifying setup and keeping your rig clean.
Flexible Power Options
Power your compatible equipment anywhere. Choose from DC24V input, output POE+, or the versatile V-mount battery series. (The Power+Link is not powered by POE)
Technical Specifications:
Transmission:
Antenna:
4x 5 dBi high-gain antennas
Wireless Standard:
IEEE 802.11ax/ac/a/b/g/n
WiFi:
6
Transmission Rate:
574 Mbps on 2.4 GHz / 2400 Mbps on 5.8 GHz
RF Paramaters:
Receiver Sensitivity: -98 dBm
Frequencies:
2.412-2.472 GHz / 5.180-5.825 GHz
Channel Bandwidth:
20/40/80/160 MHz, auto
Encryption:
WPA-PSK / WPA2-PSK / WPA/WPA2
Physical Specifications:
Physical Ports:
Gigabit RJ45 port, 24V DC port, V-Mount battery plate
Case:
Hardened aluminum
PoE + Port Standard
Up to IEEE 802.3at
Indicators:
PWR, PoE+ output status
Switch:
On and Off
Operating Temp:
-10°C - 50°C
Power Connector:
24VDC Power Connector, V-Mount Style Battery Adapter (Battery not included)
LAN Connector:
LAN / POE+ Output
