SimplTrack Lite does support simultaneous NDI<sup>®</sup>|HX using NDI<sup>®</sup> v4/IP network streaming.
The SimplTrack Lite does not utilize audio for tracking.
Yes, using the IR Remote, Control & Management Software or third-party control solutions.
Yes. Once your SimplTrack Lite is connected to the network you can control the pan, tilt, and zoom and more functionality over IP.
The tracking is based on the largest moving object with a second layer looking for facial features, but is not able to identify specific individuals.

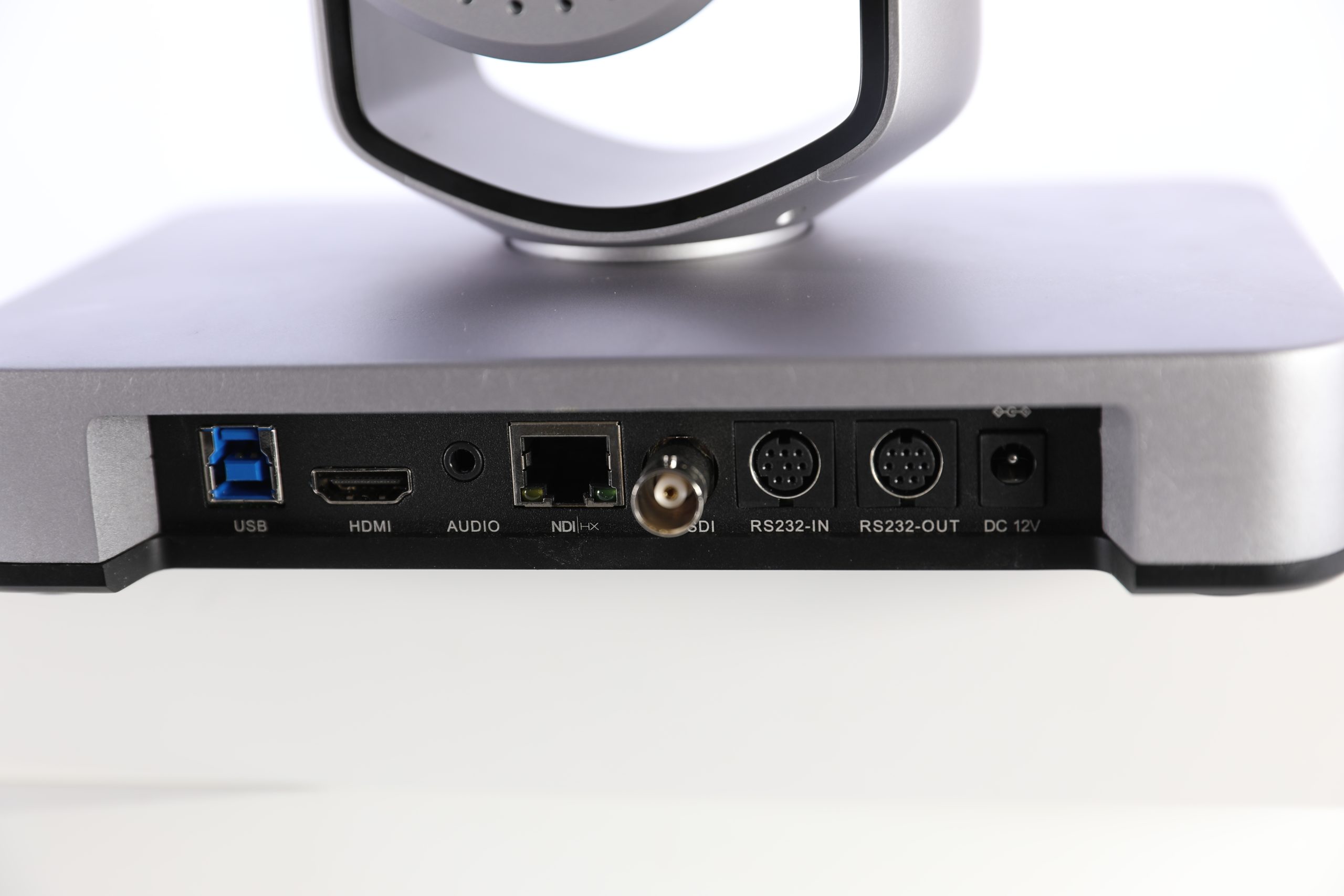

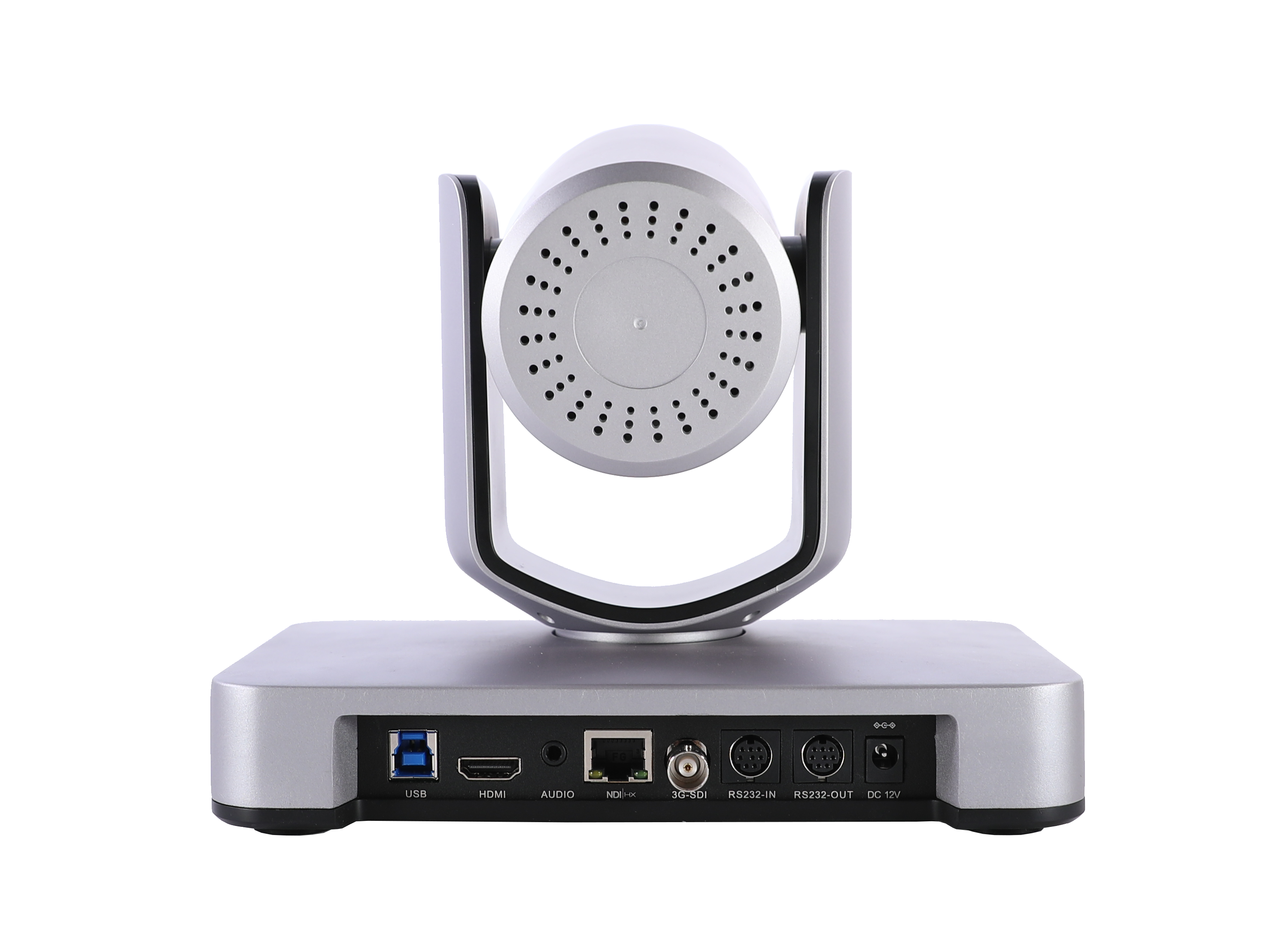

Yes, the SimplTrack Lite can output video up to 1080p at 60fps via SDI, USB 3.0, DVI, and IP video (RTSP/RTMPS).
The SimplTrack Lite tracks up to 55 feet.

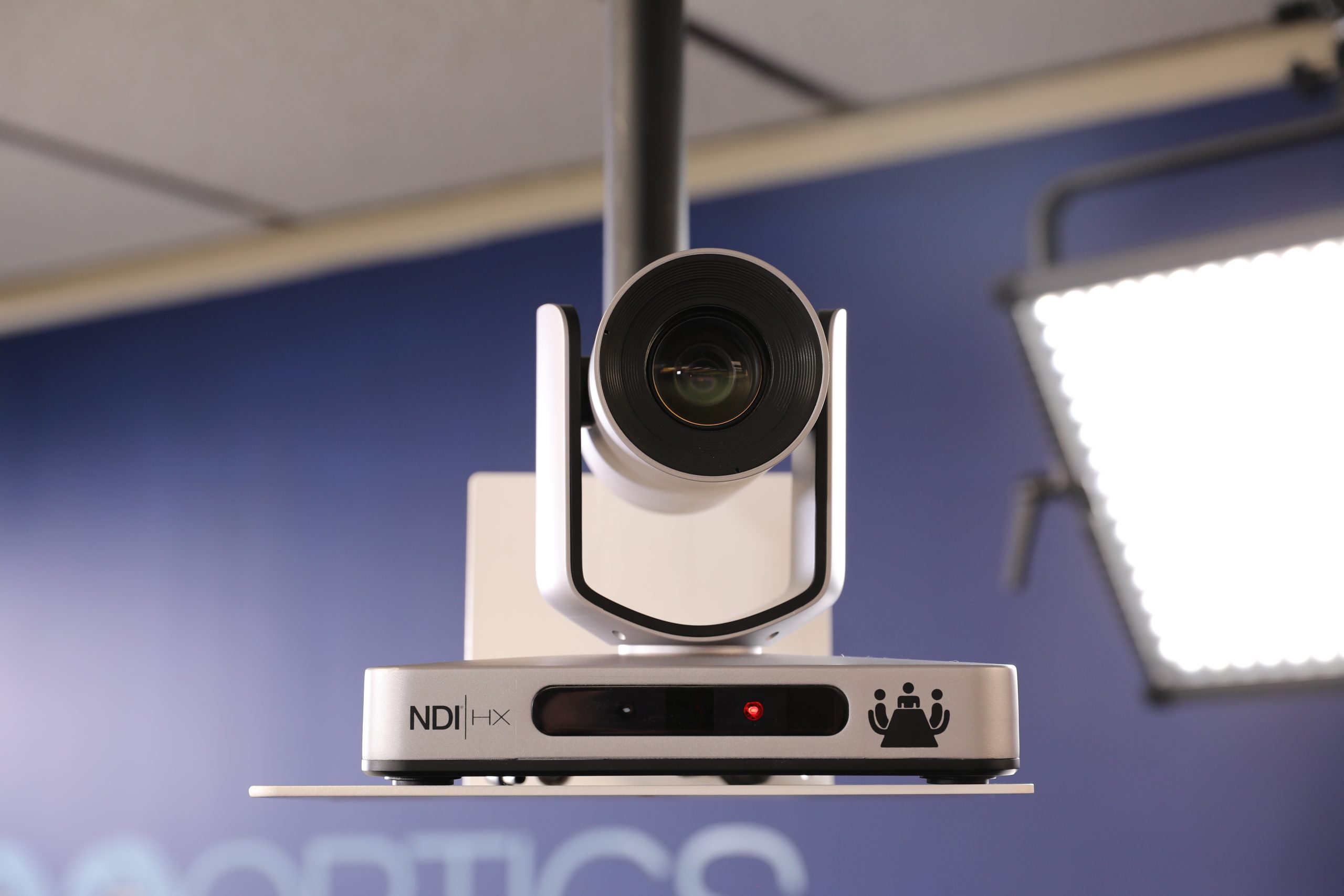

We do recommend ceiling mounting/mounting inverted with the SimplTrack Lite since it doesn’t rely on a reference camera.
The SimplTrack Lite cameras have an available line input to introduce an audio source through but do not feature any built-in microphones. Audio is only embedded over the IP streams.
SimplTrack Lite Camera, 12VDC Power Supply, IR Remote + Batteries, RS-232C Cable for Serial Control systems, Quick Start Guide
The SimplTrack Lite has 2 methods of recording.
- Photobooth – Utilizes a UVC recording software that saves photos and videos directly to the camera. This method does not include audio.
- Tracking Control Software – This method allows you to record the camera’s RTSP feed and save the video to your PC.

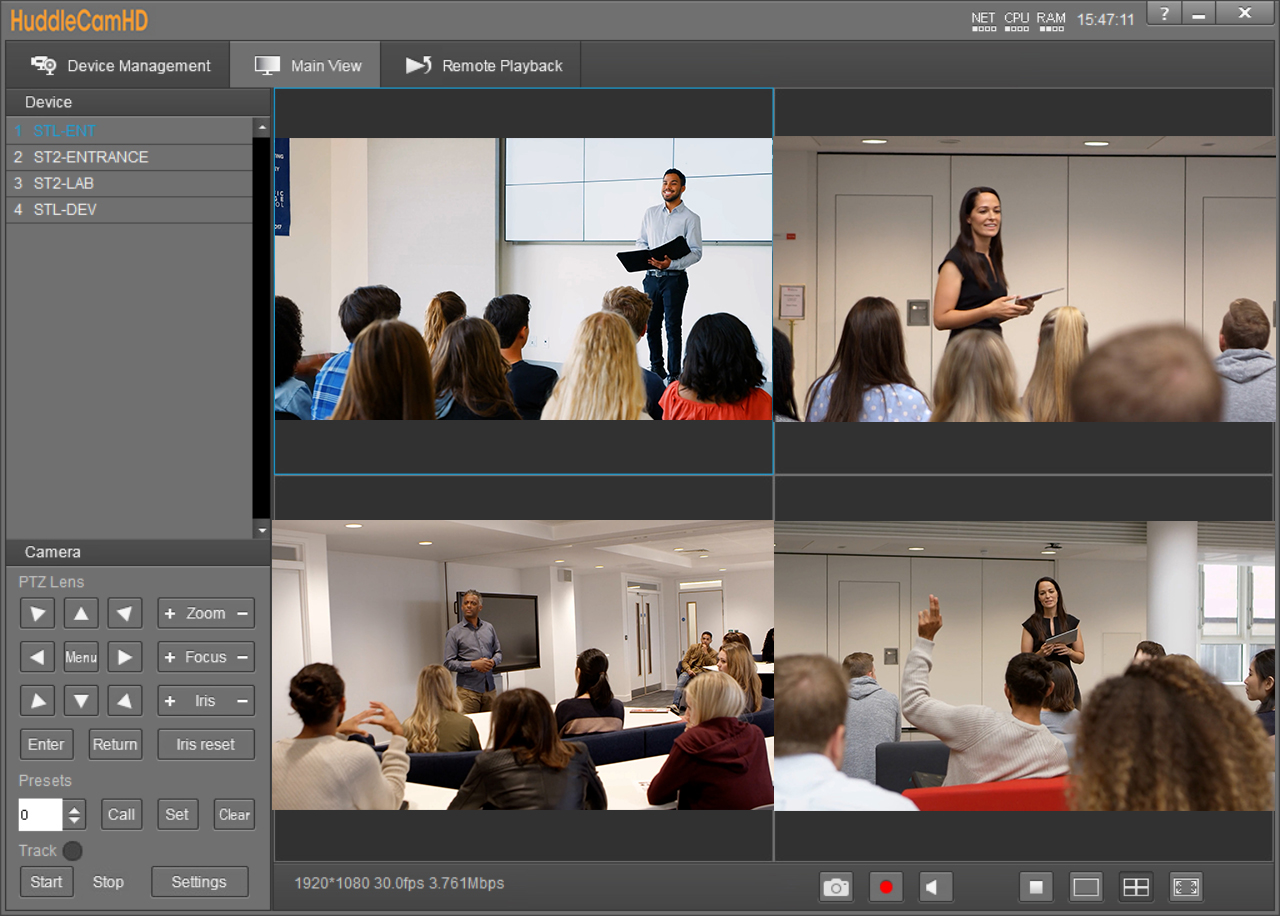

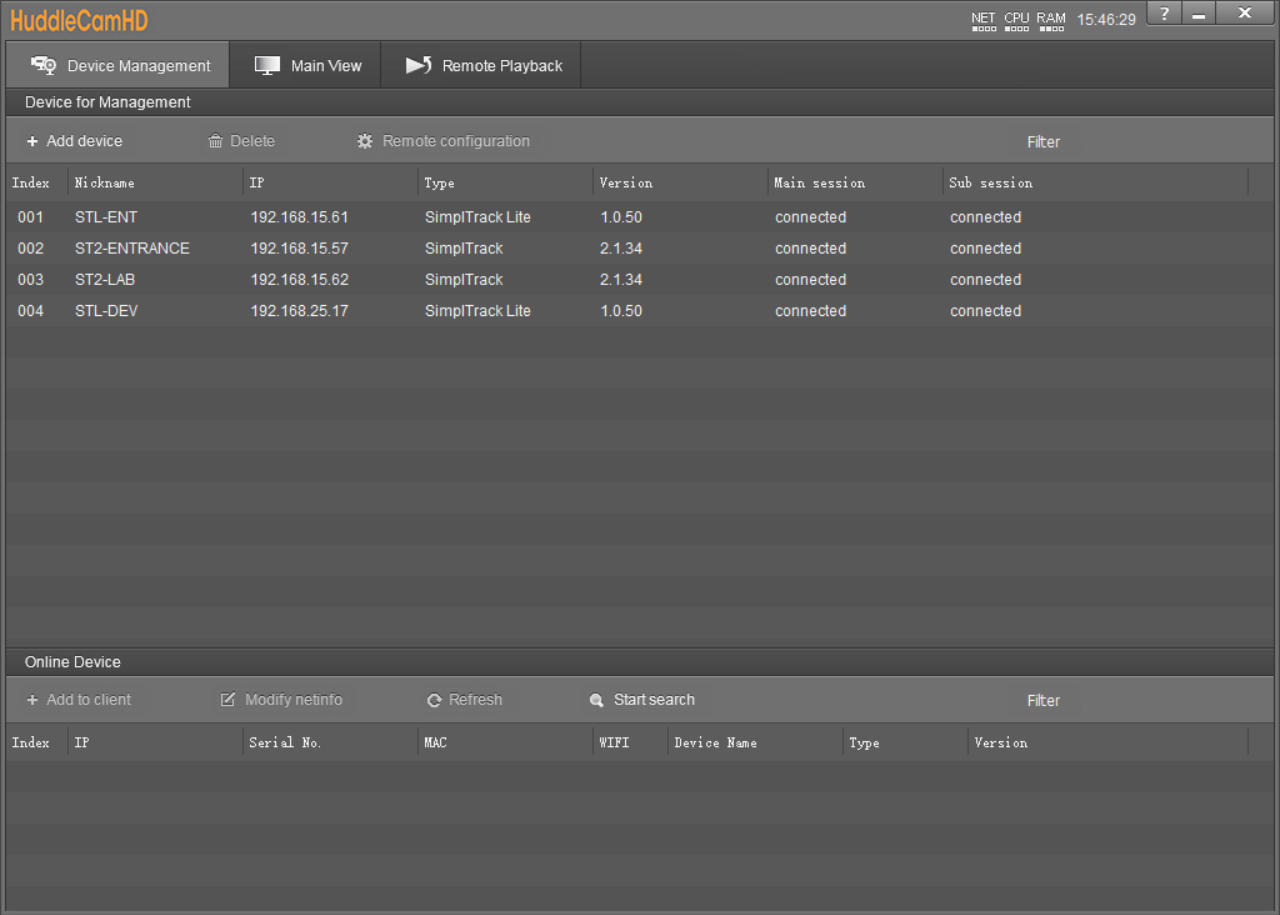

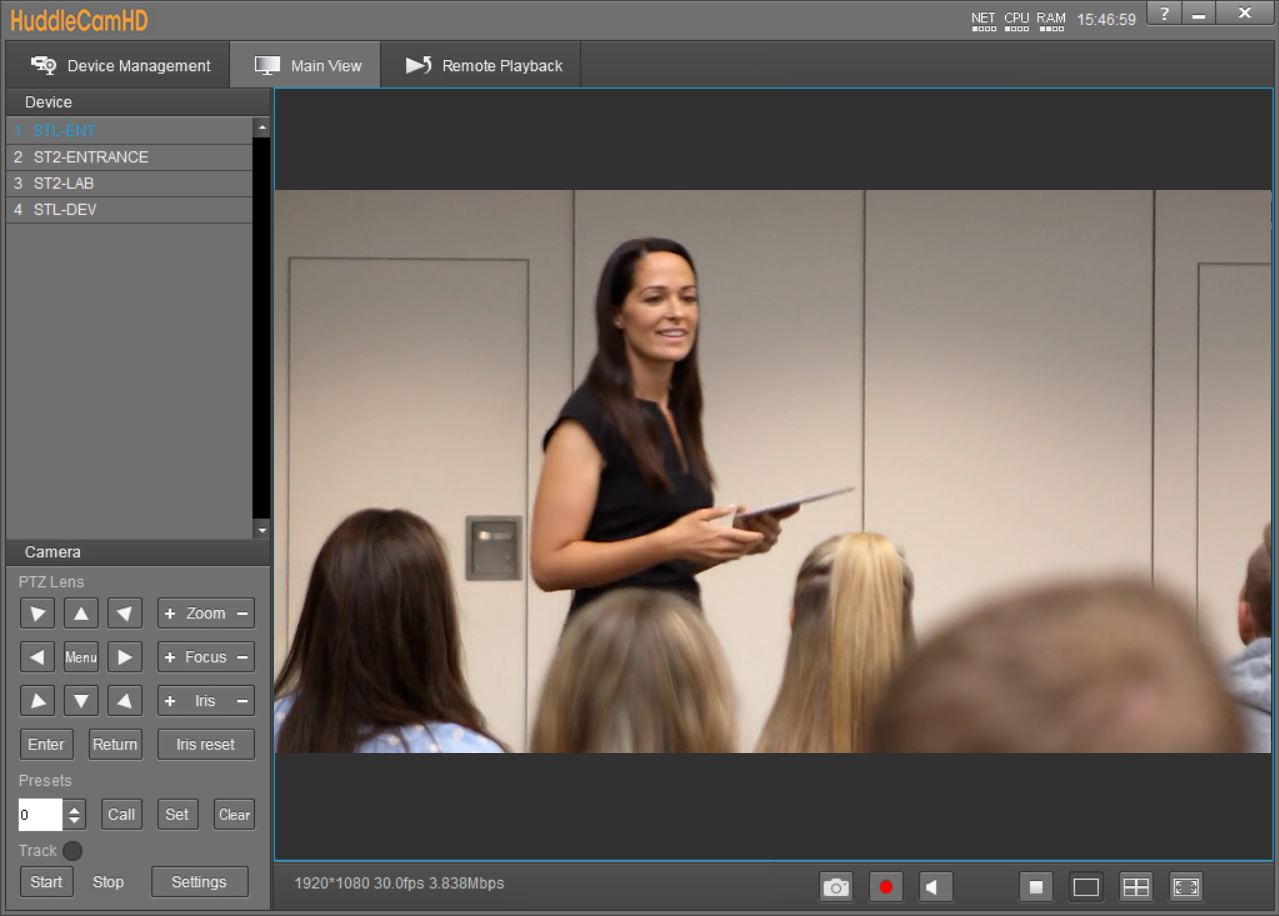

The tracking parameters can be adjusted using the free device management software that can be downloaded from huddlecamhd.com. We would recommend first reading the freely available user manual from the Documentation tab to understand basic use of the system and if needed using one of the YouTube videos to better understand the set-up procedures.
SimplTrack Lite supports USB-2 with full HD 1080p @ 30 FPS.
The SimplTrack Lite has a 20x optical zoom lens with a 1/2.8 CMOS 2.14 Mega Pixel with a frame rate of 60 FPS @ 1920x1080p.
